Descriere

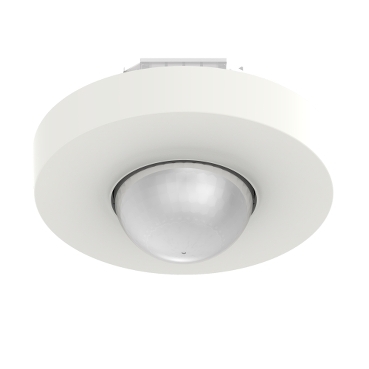

Detector prezenta KNX High Bay montaj incastrat
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Material quality | Thermoplastic |
| Connection | |
| With bus connection | Yes |
| Number of digital inputs | - |
| Substation input | No |
| Model/type | |
| Model | Presence detector |
| Number of channels | 4 |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | White |
| Performance | |
| Max. reach frontally | 18 m |
| Max. reach sideways | 18 m |
| Detection angle horizontal | 0 ° |
| Detection angle vertical | 180 ° |
| Communication | |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | None |
| Bus system KNX | Yes |
| Bus system LON | No |
| Options | |
| Switch-off delay self-learning | Yes |
| Creep-under protection | Yes |
| Teach-function for response value luminosity | Yes |
| Radio frequency bidirectional | No |
| Animal zone | No |
| Operation mode switch | No |
| Measurements | |
| Diameter reach on floor | 36 m |
| Min. depth of built-in installation box | 30 mm |
| Optimum mounting height | 12 m |
| Setting/control | |
| Response value luminosity adjustable | Yes |
| Staircase light controller | Yes |
| Other | |
| Min. switch-on time | 60 s |
| Max. duty cycle | 255 min |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Electrical | |
| Switching power | - |
| Approval/certification | |
| DALI-2 certified | No |
| Package 1 | |
| volume | 1800 cm3 |
| weight | 264 g |
| length | 16 cm |
| width | 12,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489818715 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 3,943 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 13 |
| qmin | 13 |
| um | CT |
| gtin | 13606489818712 |
