Descriere

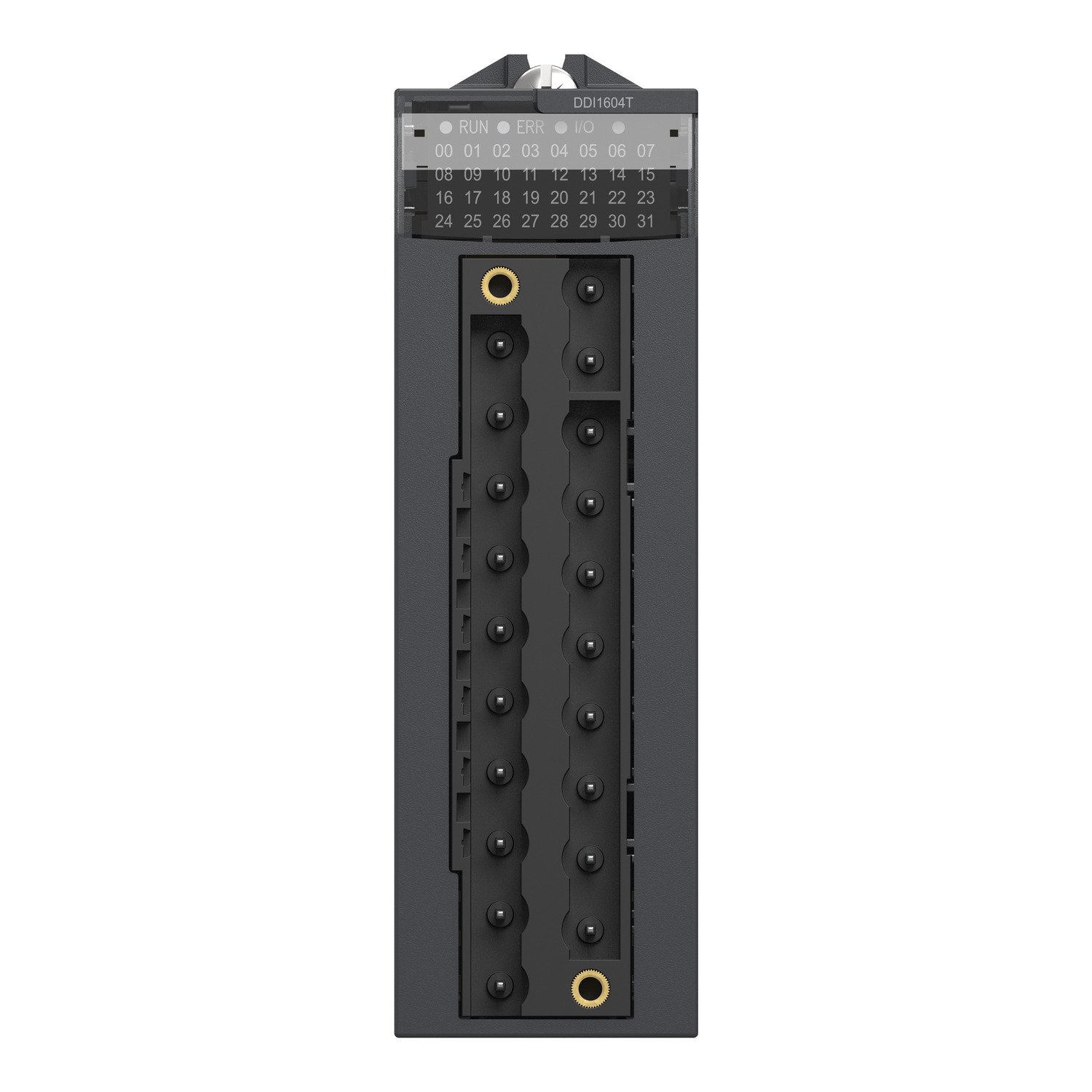

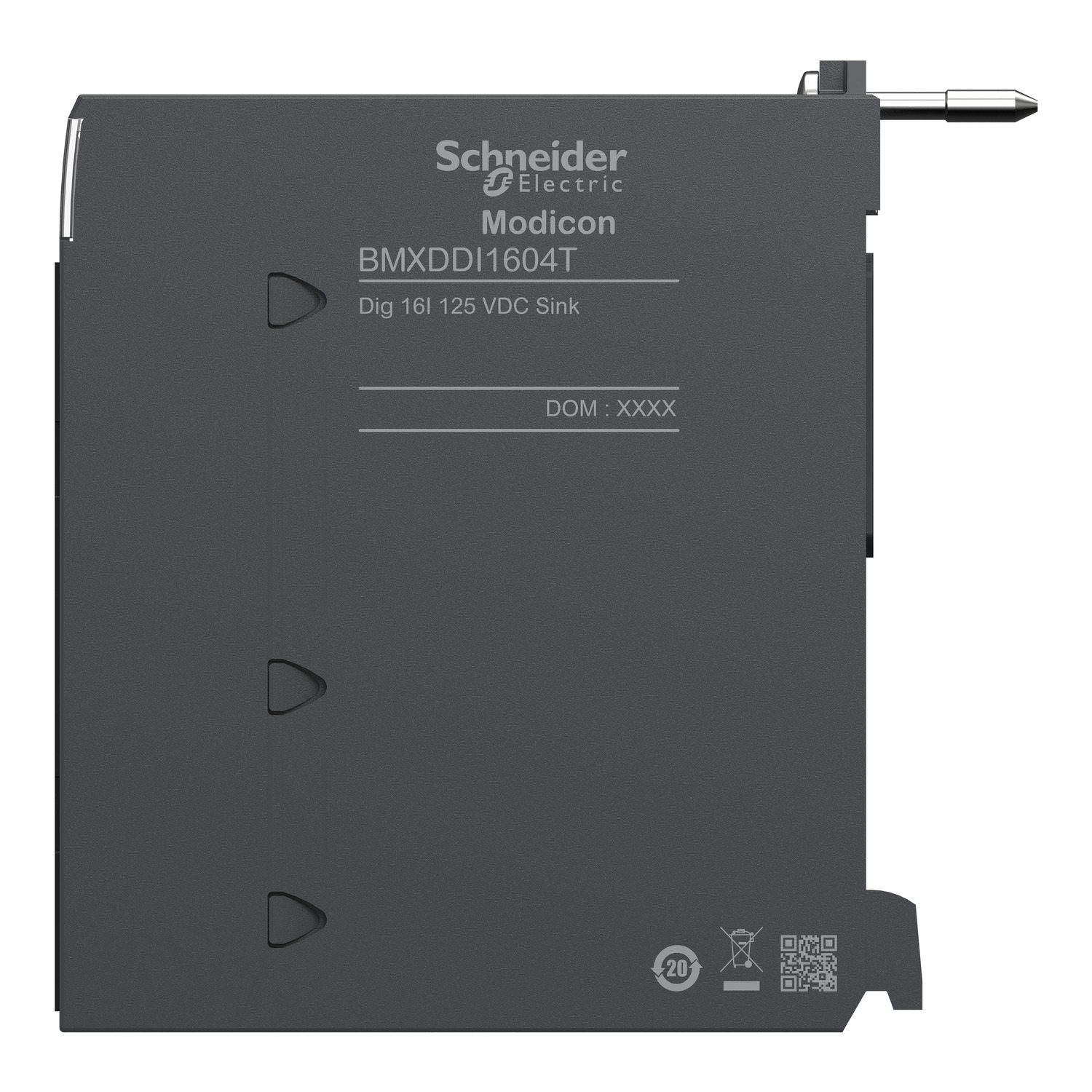

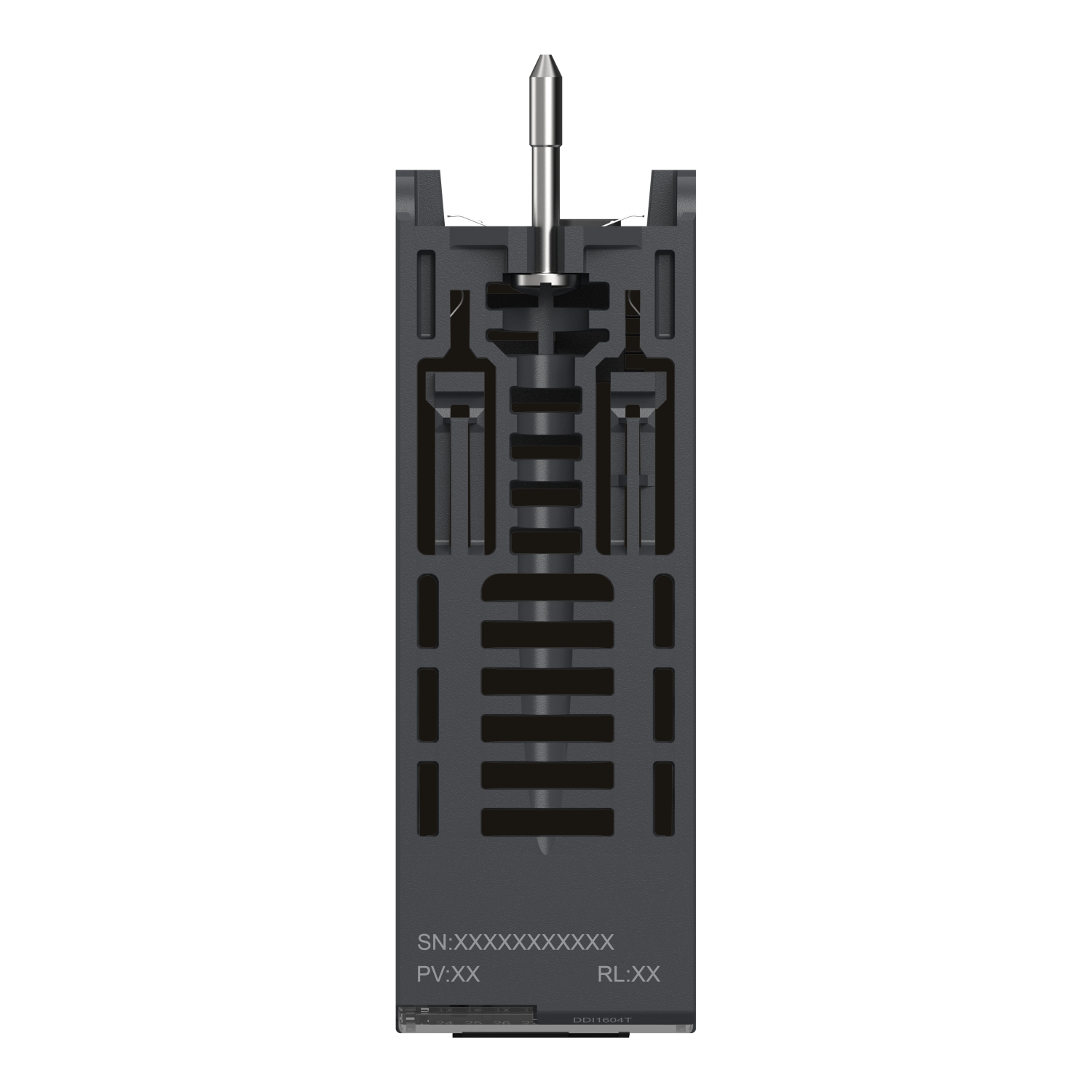

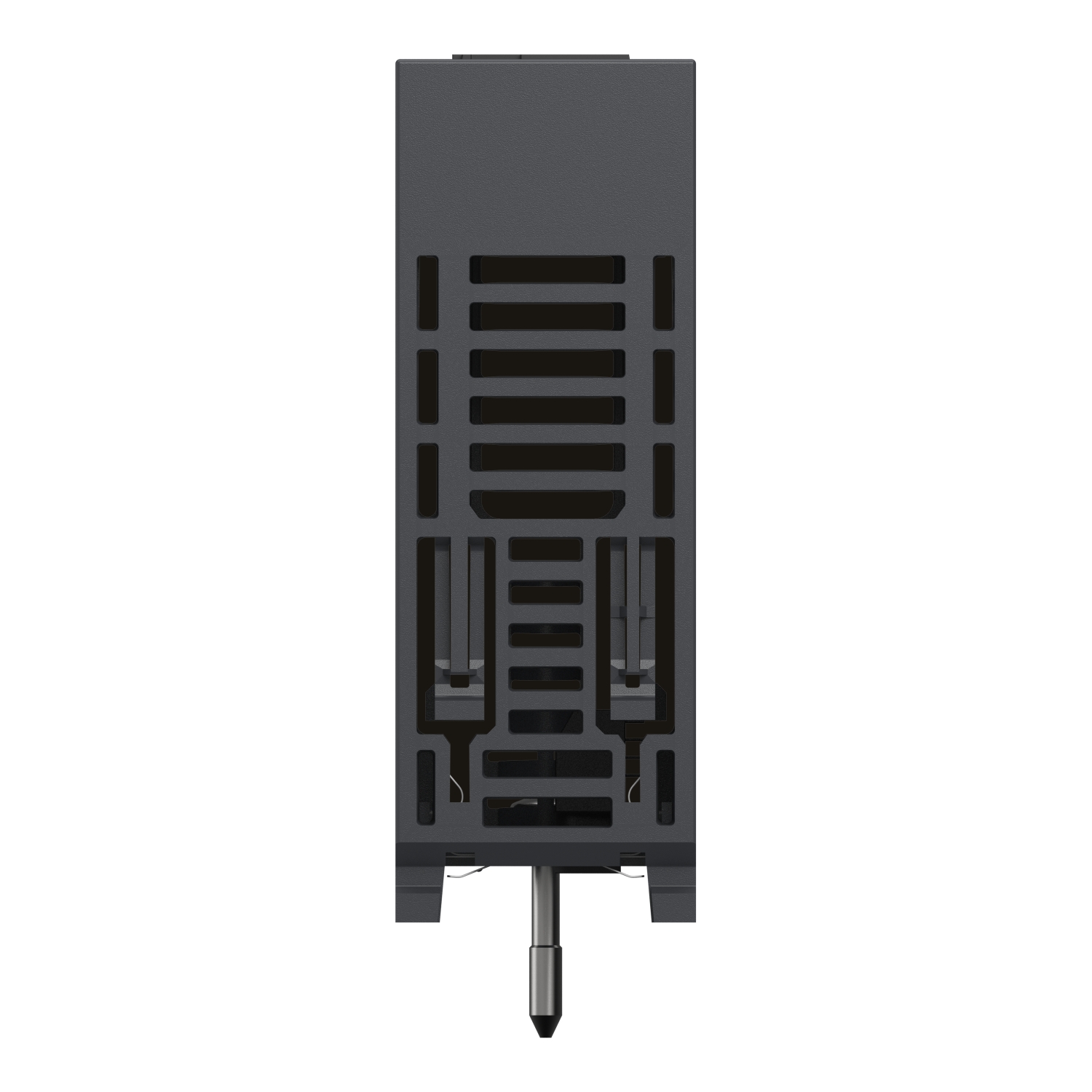

Modicon X80 - 16 module de intrare discrete - 125Vdc
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Input current at signal 1 | 2.4 mA |
| Output current | - |
| Voltage type (supply voltage) | DC |
| Permitted voltage at output | 125 V |
| Supply voltage AC 50 Hz | - |
| Permitted voltage at input | 125 V |
| Supply voltage AC 60 Hz | - |
| Type of voltage (input voltage) | DC |
| Type of output voltage | DC |
| Supply voltage DC | 3.3 V |
| Connection | |
| Type of electric connection | Plug-in connection |
| Short-circuit protection, outputs available | No |
| Number of digital outputs | 0 |
| Number of digital inputs | 16 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Redundancy | No |
| Model/type | |
| Type of digital output | None |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Time delay at signal change | 5 ms |
| Appendant operation agent (Ex ib) | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Measurements | |
| Height | 100 mm |
| Width | 33 mm |
| Depth | 150 mm |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 726,88 cm3 |
| weight | 147 g |
| length | 11,8 cm |
| width | 11,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595864082196 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 2,58 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 15 |
| qmin | 15 |
| um | CT |
| gtin | 23595864082190 |
