Disjunctor Motor Gv2-L - 32 A - 3 Poli 3D - Unit. Decl. Magnetica
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Measurements | |
| Width | 45 mm |
| Depth | 97 mm |
| Height | 89 mm |
| Electrical | |
| Rated operation power at AC-3, 400 V | 15 kW |
| Overload release current setting | - |
| Rated permanent current Iu | 32 A |
| Rated operating voltage | 690 V |
| Rated operation power at AC-3, 230 V | 7.5 kW |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 35 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 416 A |
| Model/type | |
| Type of control element | Turn button |
| With integrated auxiliary switch | No |
| With thermal overload protection | No |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Complete device in housing |
| Options | |
| Phase failure sensitive | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 474,81 cm3 |
| weight | 310 g |
| length | 10,2 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110376135 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 6,441 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389110376133 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 85,292 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |

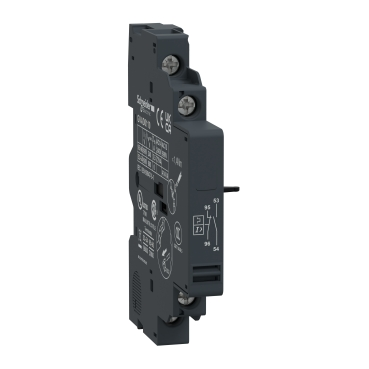

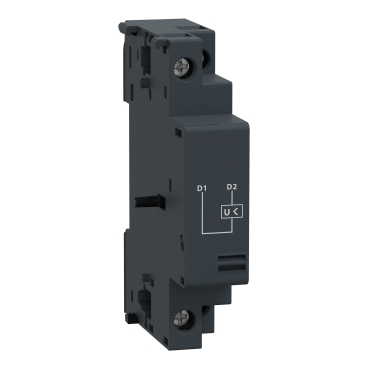

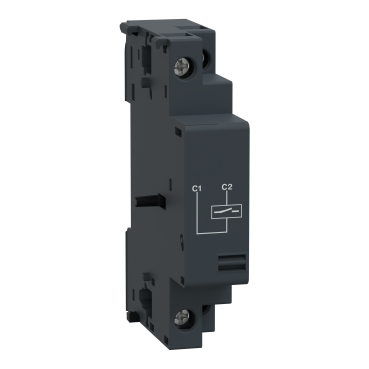

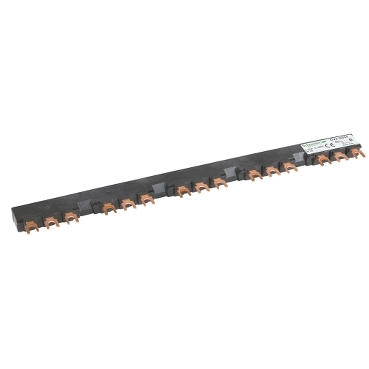

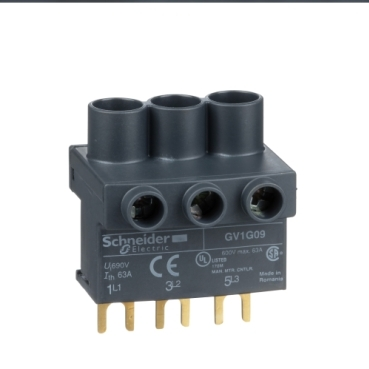

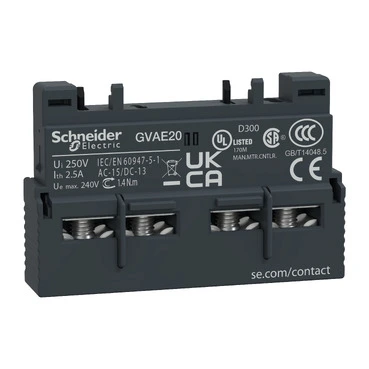

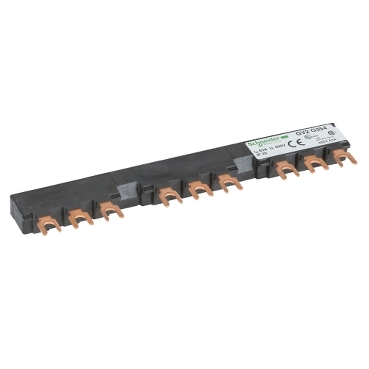

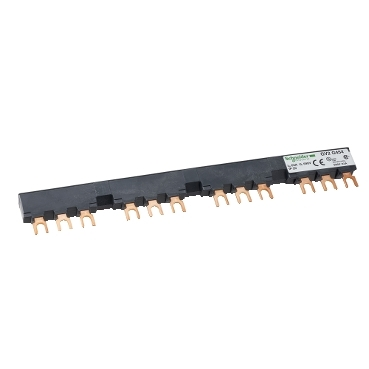

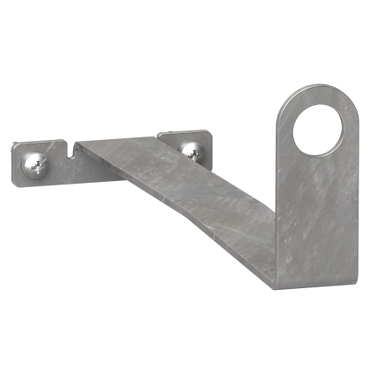

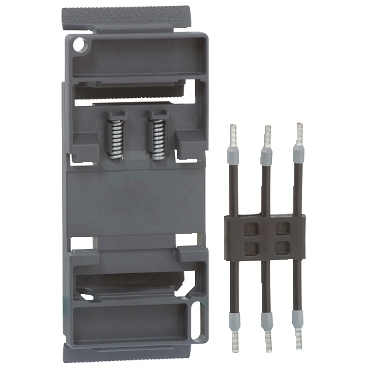

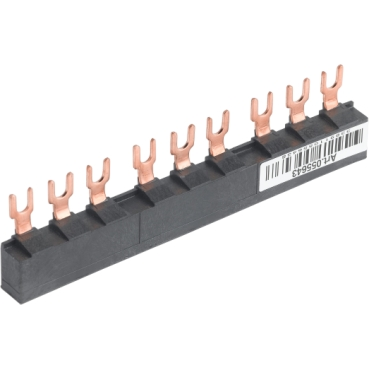

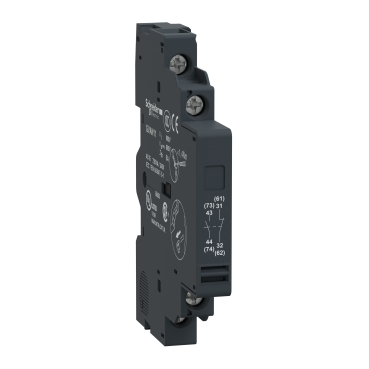

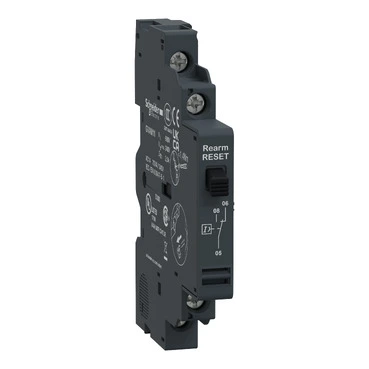

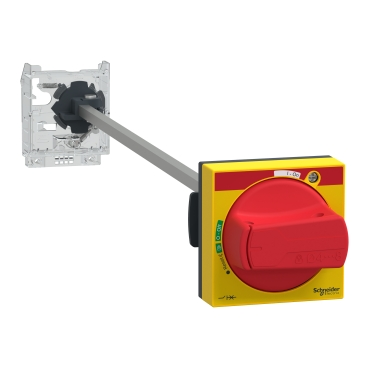

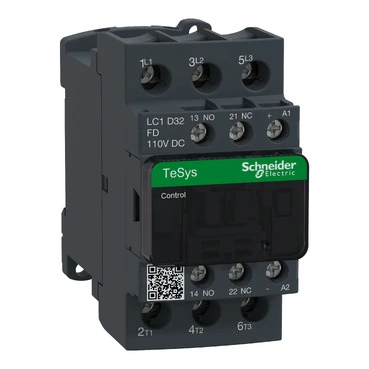

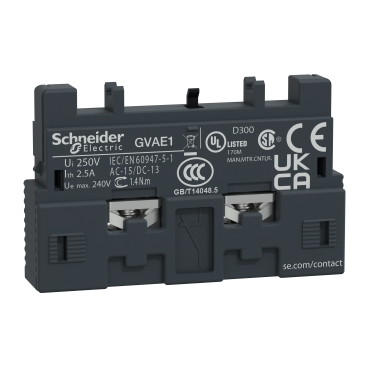

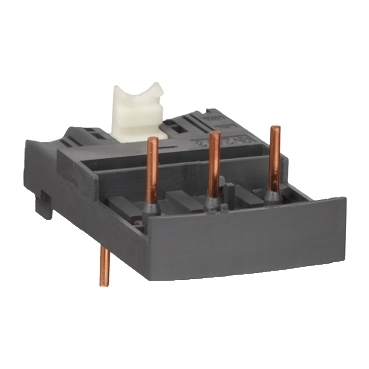

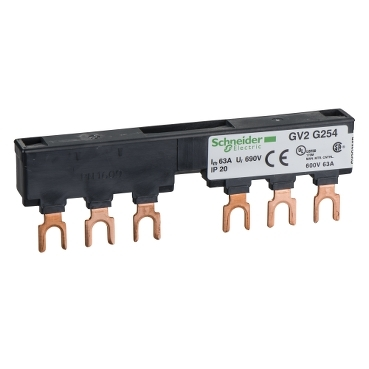

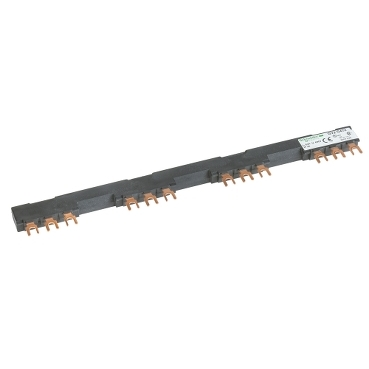

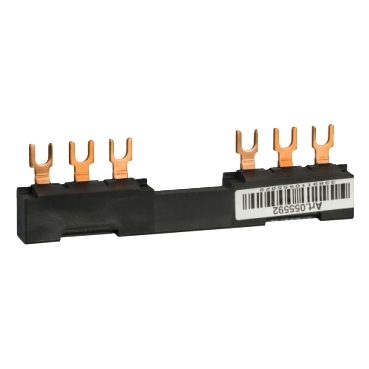

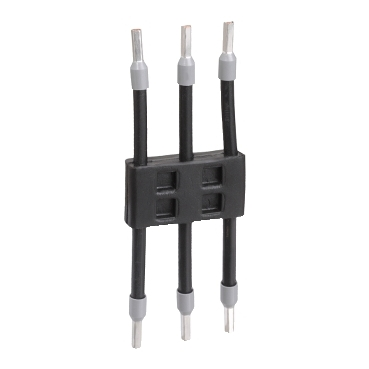

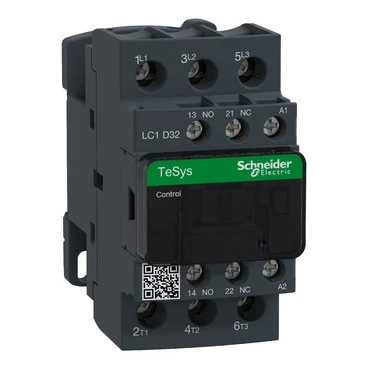

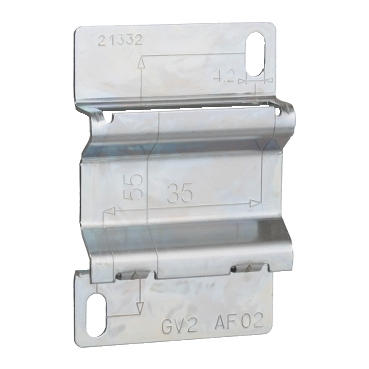

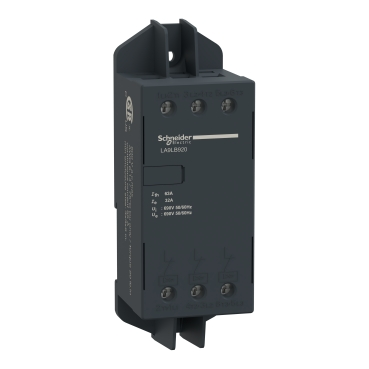

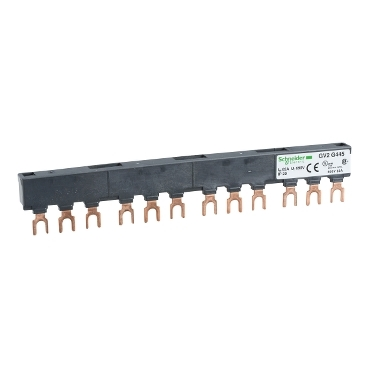

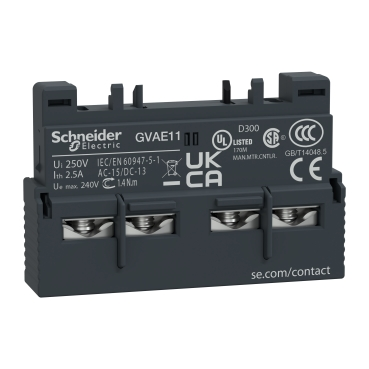

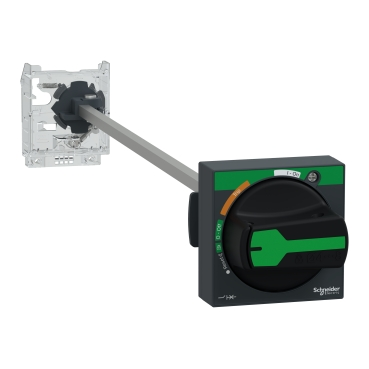

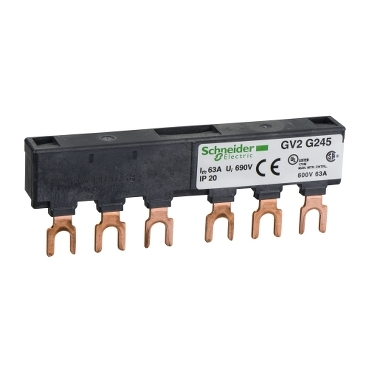

Accesorii
