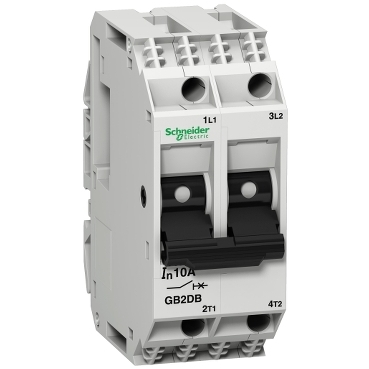

Tesys Gb2 - Intreruptor Termo-Magnetic - 2P - 10 A - Id = 138 A
Documente
Altele
Specificatii
| Measurements | |
| Built-in depth | 78 mm |
| Width in number of modular spacings | 2 |
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Electrical | |
| Rated insulation voltage Ui | 415 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 1.5 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | - |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 10 A |
| Rated voltage | 415 V |
| Release characteristic | Other |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 1.5 kA |
| Overvoltage category | 3 |
| Current limiting class | 3 |
| Options | |
| Additional equipment possible | No |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 0.75 mm² |
| Connectable conductor cross section multi-wired | 0.75 mm² |
| Operating conditions | |
| Ambient temperature during operating | -20 °C |
| Package 1 | |
| volume | 659,6 cm3 |
| weight | 105 g |
| length | 9,7 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110865516 |
| Package 2 | |
| volume | 659,6 cm3 |
| weight | 332 g |
| length | 9,7 cm |
| width | 8 cm |
| qmax | 3 |
| qmin | 3 |
| um | BX |
| gtin | 13389110865513 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 4,254 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 36 |
| qmin | 36 |
| um | CT |
| gtin | 43389110865514 |
