Descriere

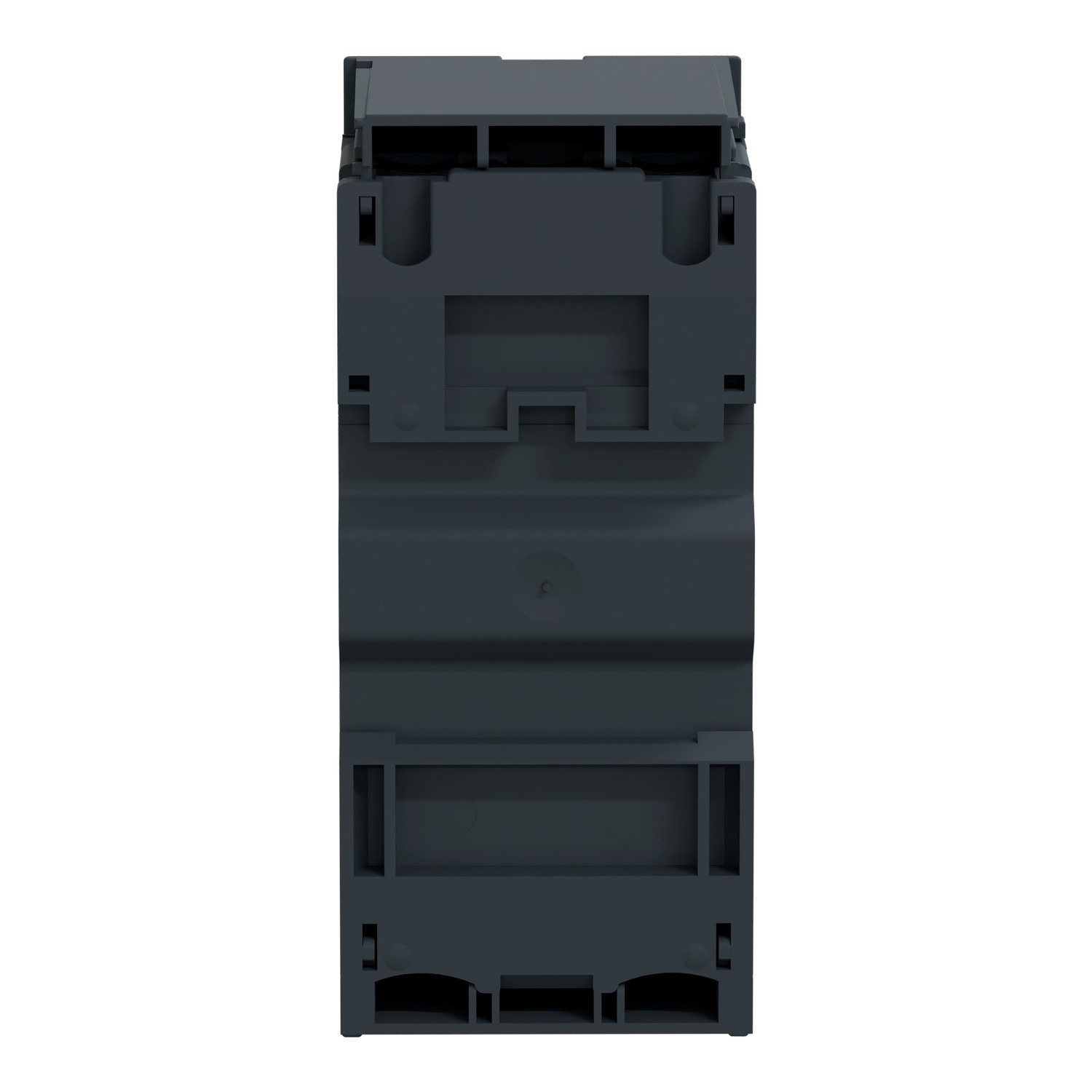

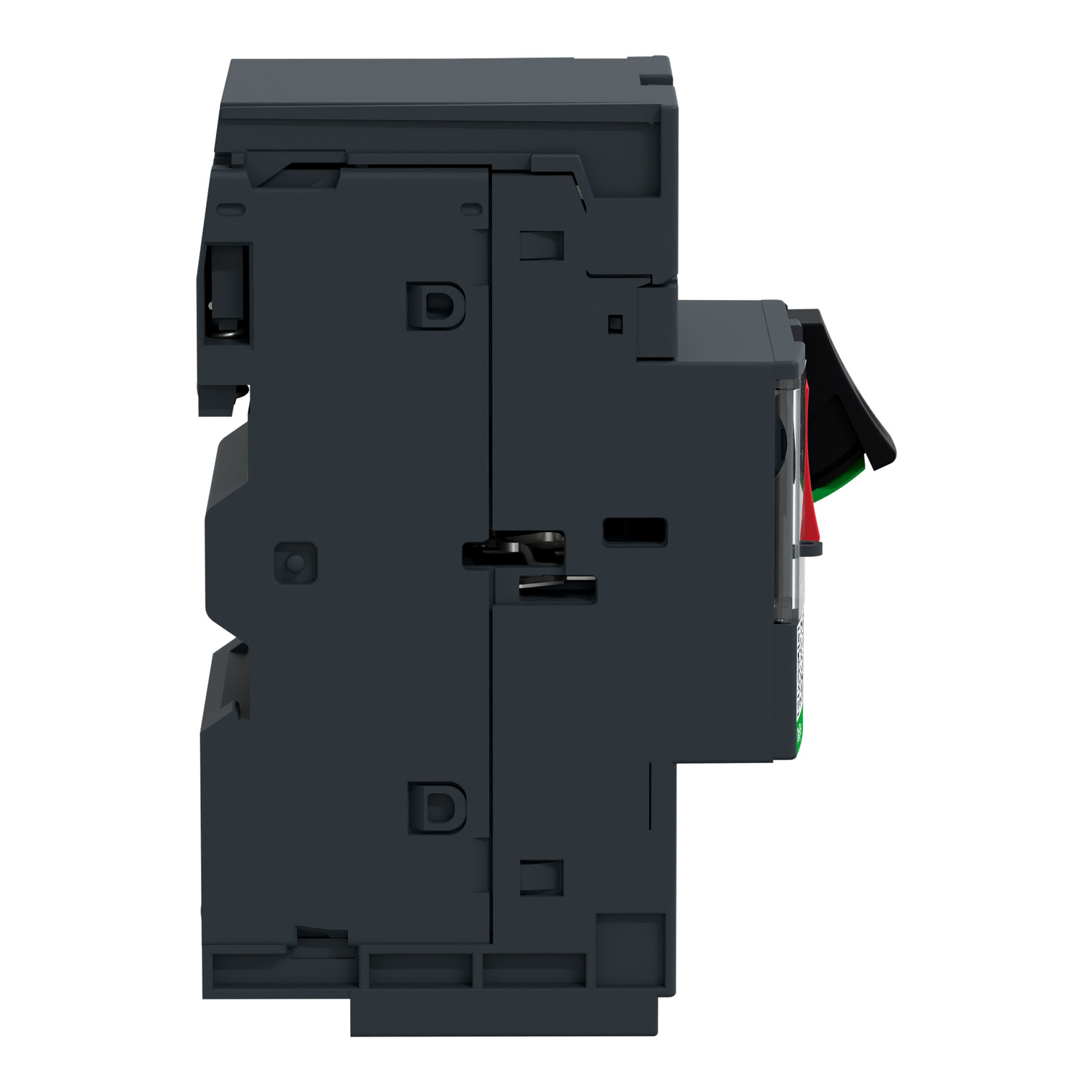

Disjunctor Motor Gv2-Me - 3 Poli 3D - 0,16 - 0,25 A - Unit. Decl. Termomagnetica
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Measurements | |
| Width | 44.5 mm |
| Depth | 78.2 mm |
| Height | 101 mm |
| Electrical | |
| Rated operation power at AC-3, 400 V | 0.06 kW |
| Overload release current setting | 0.16 A |
| Rated permanent current Iu | 0.25 A |
| Rated operating voltage | 690 V |
| Rated operation power at AC-3, 230 V | 0.037 kW |
| Number of poles | 3 |
| With integrated under voltage release | No |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 kA |
| Adjustment range undelayed short-circuit release | 2.4 A |
| Model/type | |
| Type of control element | Push button |
| With integrated auxiliary switch | No |
| With thermal overload protection | Yes |
| Other | |
| Switch off technique | Thermomagnetic |
| Device construction | Complete device in housing |
| Options | |
| Phase failure sensitive | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 514,25 cm3 |
| weight | 262 g |
| length | 8,5 cm |
| width | 11 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110346350 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,575 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43389110346358 |
