Descriere

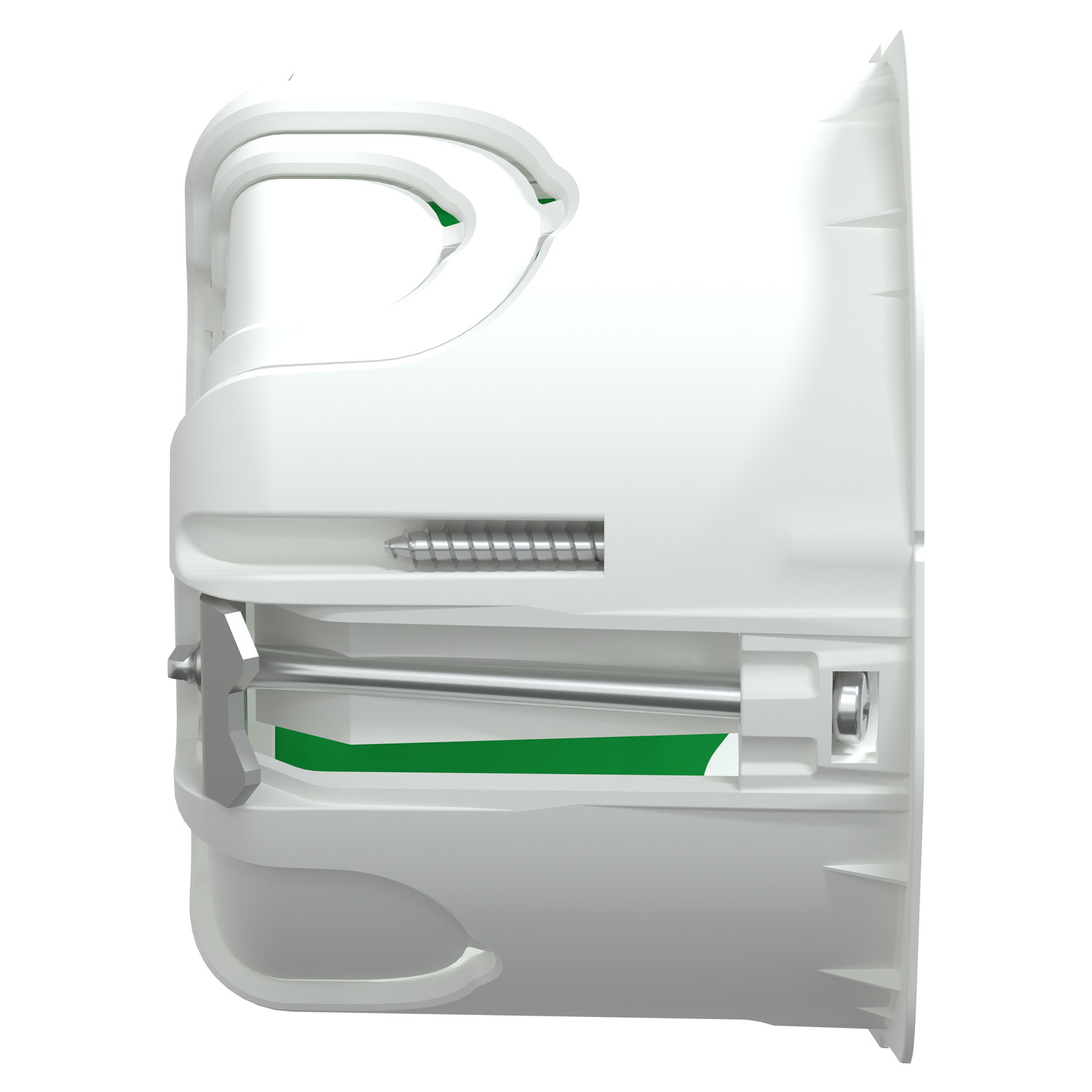

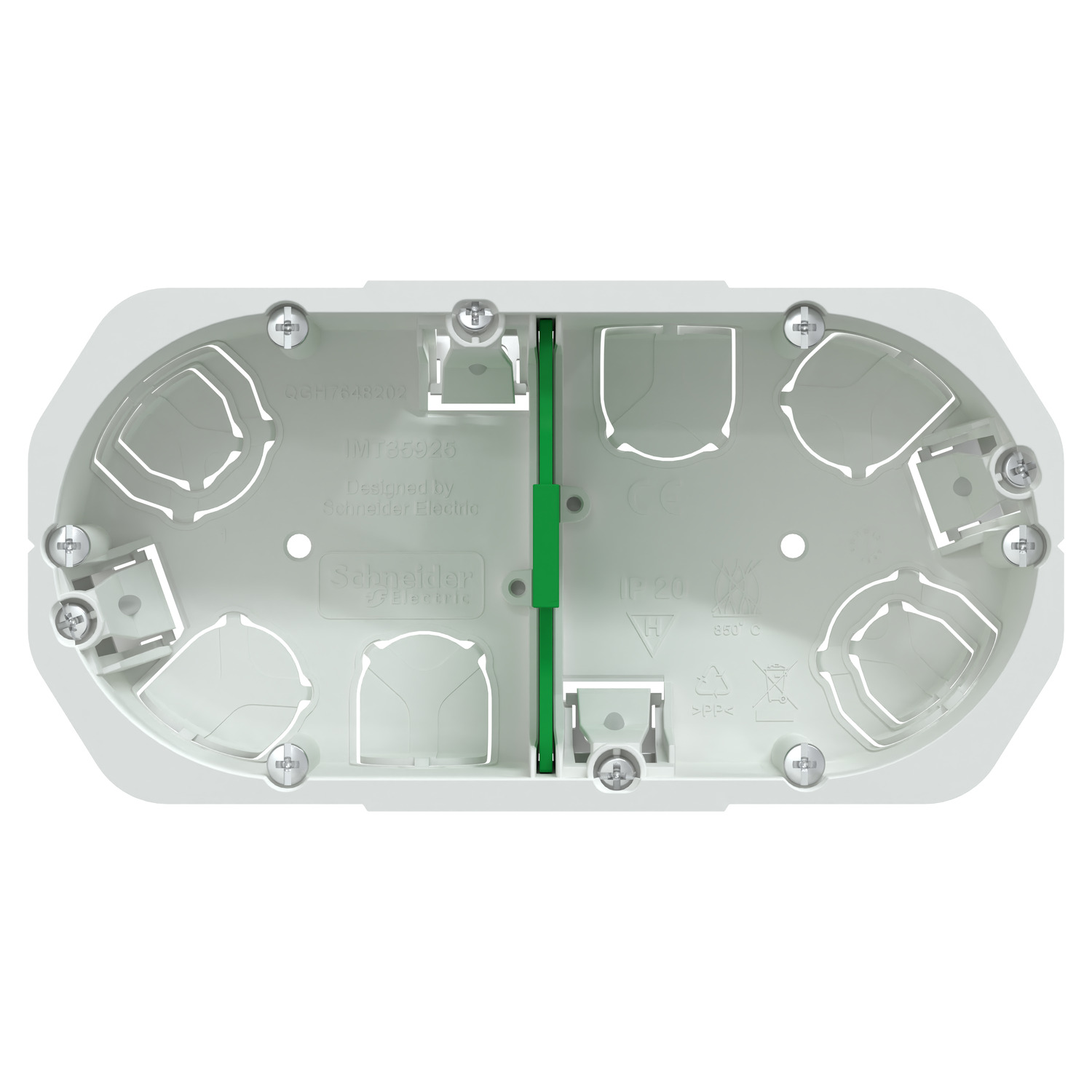

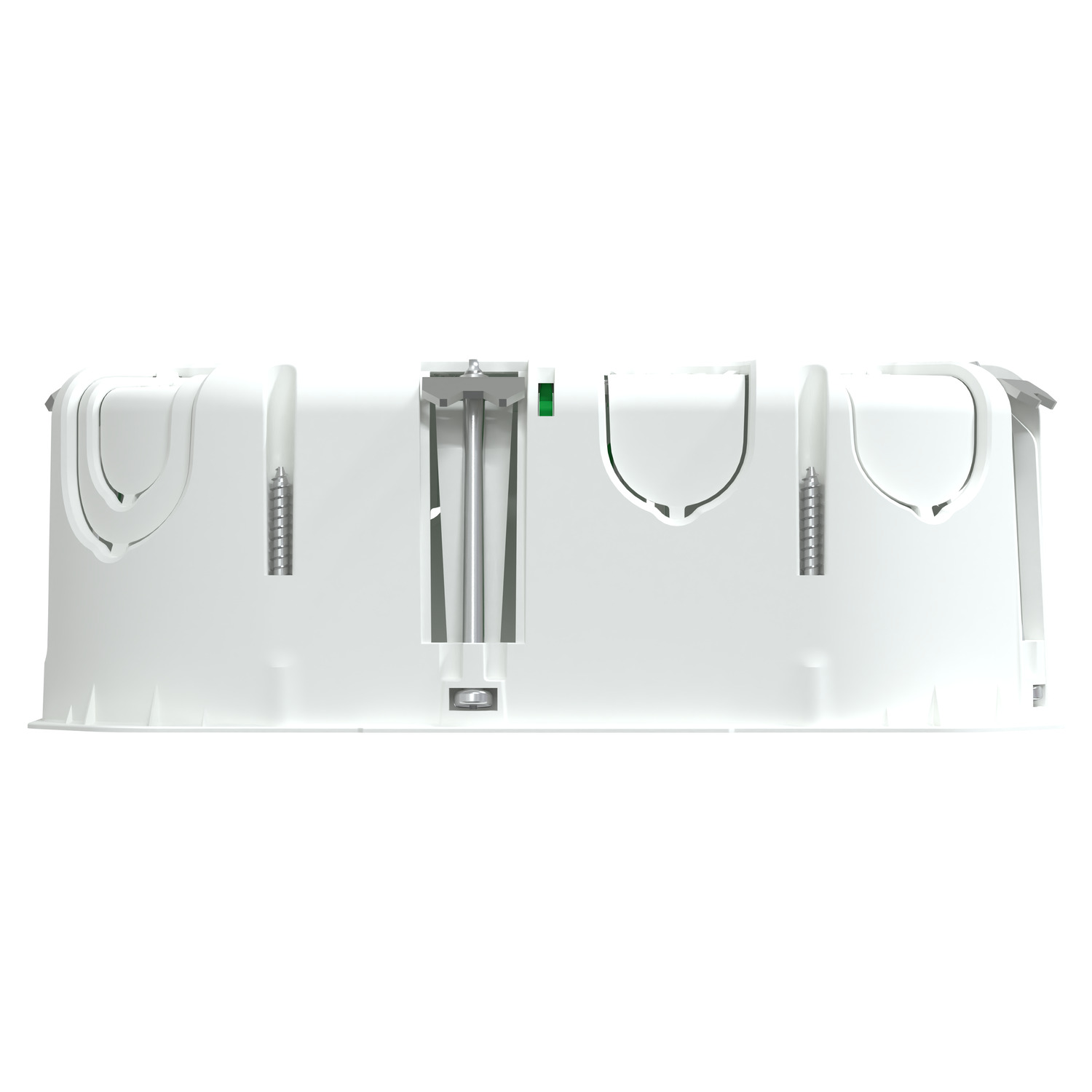

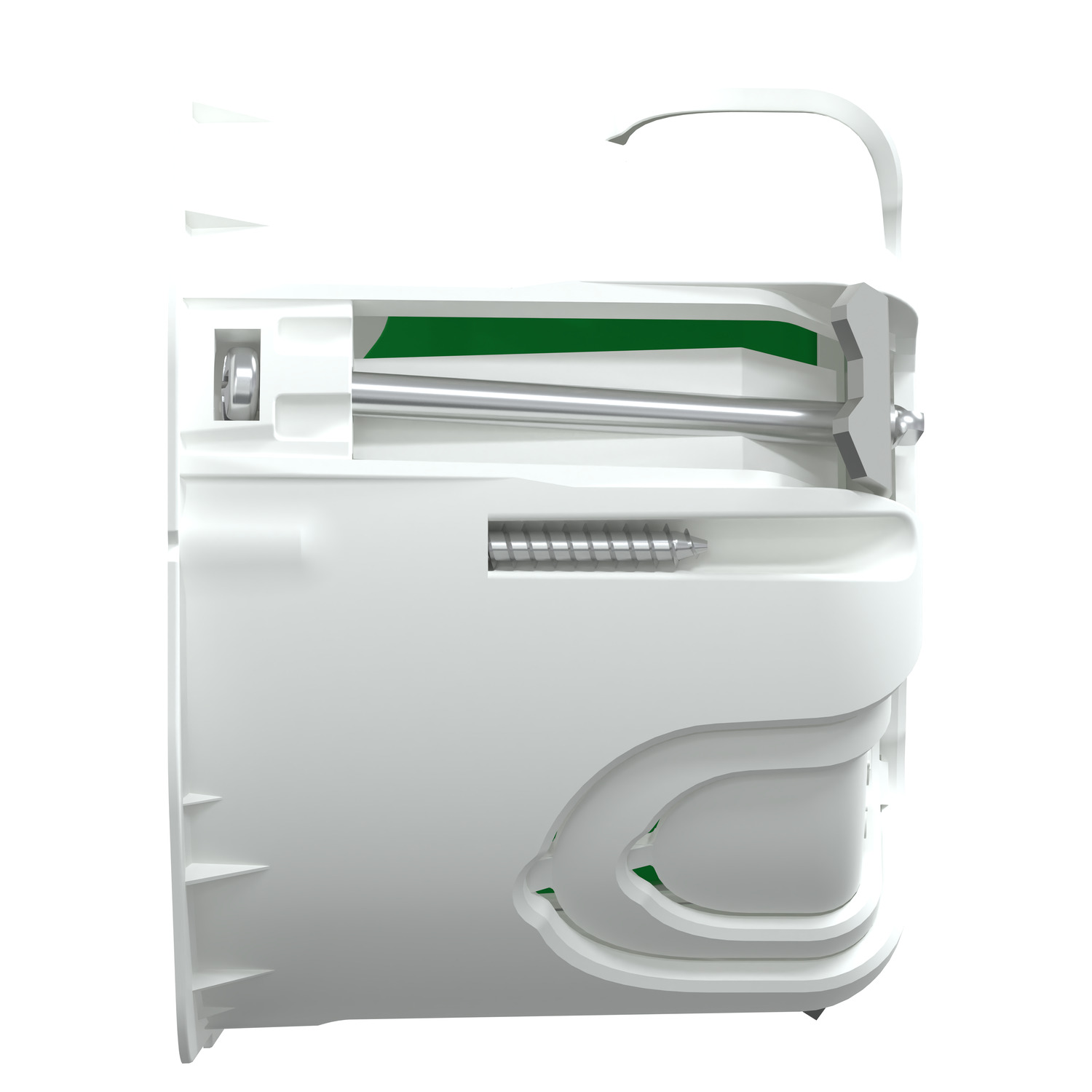

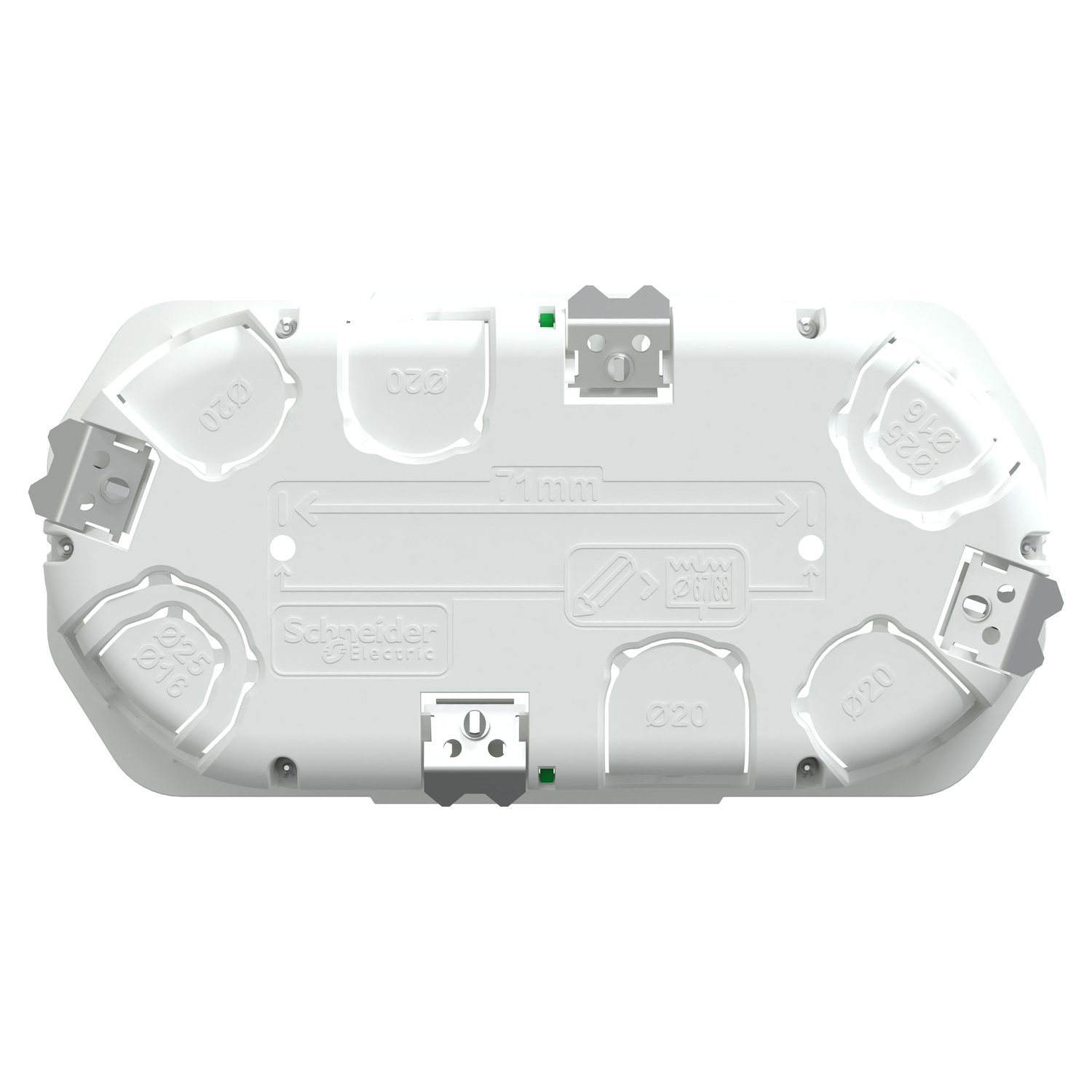

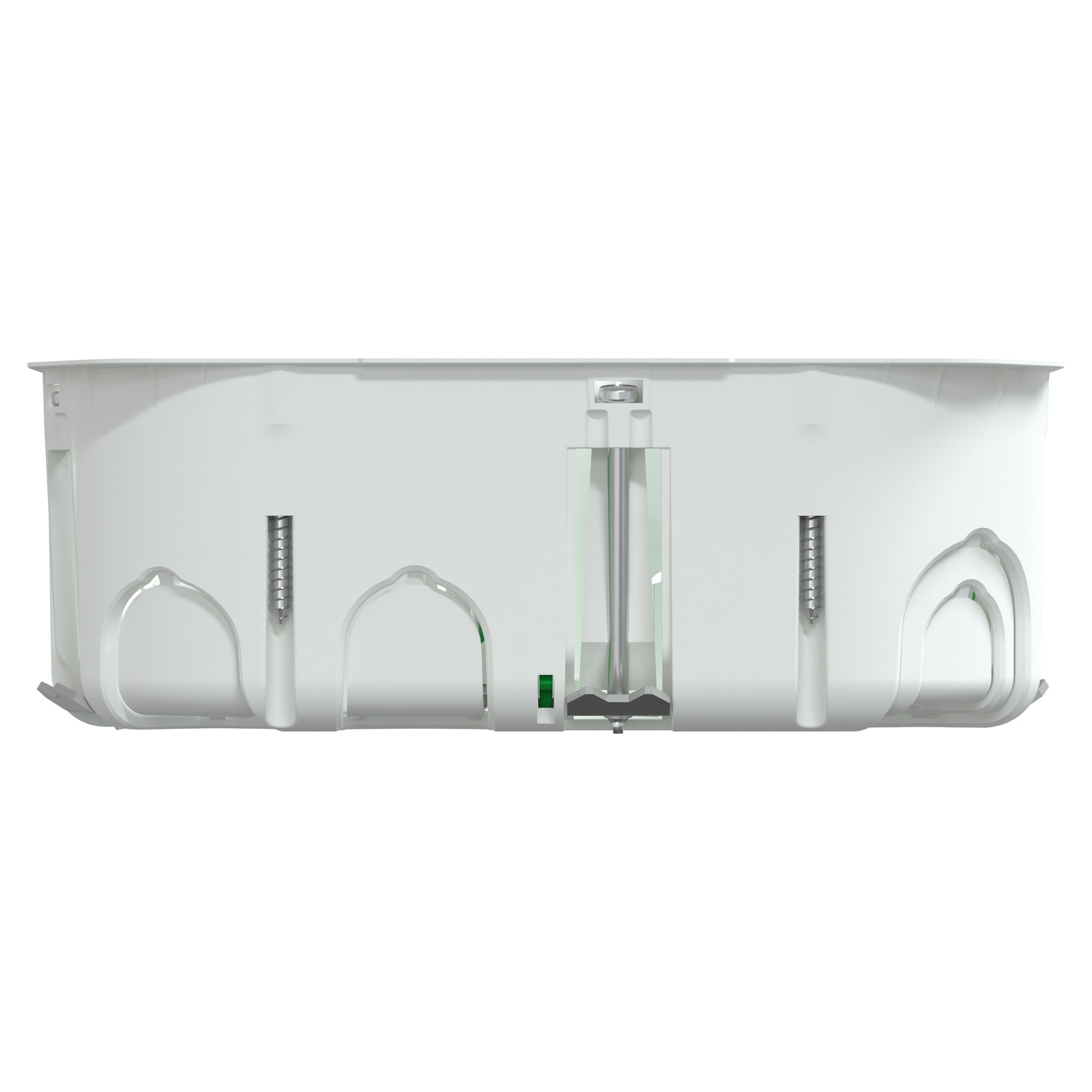

Noua Unica, Doza ST rotunda 2 posturi 67x50 a=50mm
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Untreated |
| Material | Plastic |
| Halogen free | Yes |
| Options | |
| Couplable | No |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Clamp position fixed | Yes |
| Pipe locking optional | No |
| Air tight | No |
| Sealable | No |
| Pipe locking | No |
| Housing feed-through by break-out opening | Yes |
| Provided with revolving ring | No |
| Model/type | |
| Equipped with | Other |
| Model | Double |
| With screening | No |
| Transparent cover | No |
| Number of included spouts | 0 |
| Cover model | None |
| Construction type | Device connection box (round/square) |
| Number of poles of the clamp | 0 |
| Shape | Oval |
| With screws | Yes |
| With nail lugs | No |
| Measurements | |
| Diameter | 67 mm |
| Suitable for cable diameter | 16 mm |
| For tube diameter | 20 mm |
| Inner depth | 48 mm |
| Length | 134 mm |
| Width | 67 mm |
| Depth | 50 mm |
| Suitable for wall/board thickness | - |
| Connection | |
| Inlet from the rear | Yes |
| Number of inlets | 8 |
| Max. conductor cross section | - |
| Protection | |
| Degree of protection (IP) | IP20 |
| Circuit integrity | None |
| Degree of protection (NEMA) | 1 |
| Mounting/installation | |
| Mounting switching equipment | Screwing |
| Luminaire hook mounting | No |
| Mounting method | Flush-mounted |
| Colour | |
| Colour | White |
| Application | |
| Special application | None |
| Other | |
| Cover attachment | - |
| For number of device inserts | 2 |
| Nozzle | None |
| Package 1 | |
| volume | 554,625 cm3 |
| weight | 66 g |
| length | 14,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489550295 |
| Package 2 | |
| volume | 7906 cm3 |
| weight | 790 g |
| length | 33,5 cm |
| width | 20 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606489550292 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 4,669 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 50 |
| qmin | 50 |
| um | CT |
| gtin | 43606489550293 |
| Package 4 | |
| weight | 69,884 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 600 |
| qmin | 600 |
| um | PF |
