Descriere

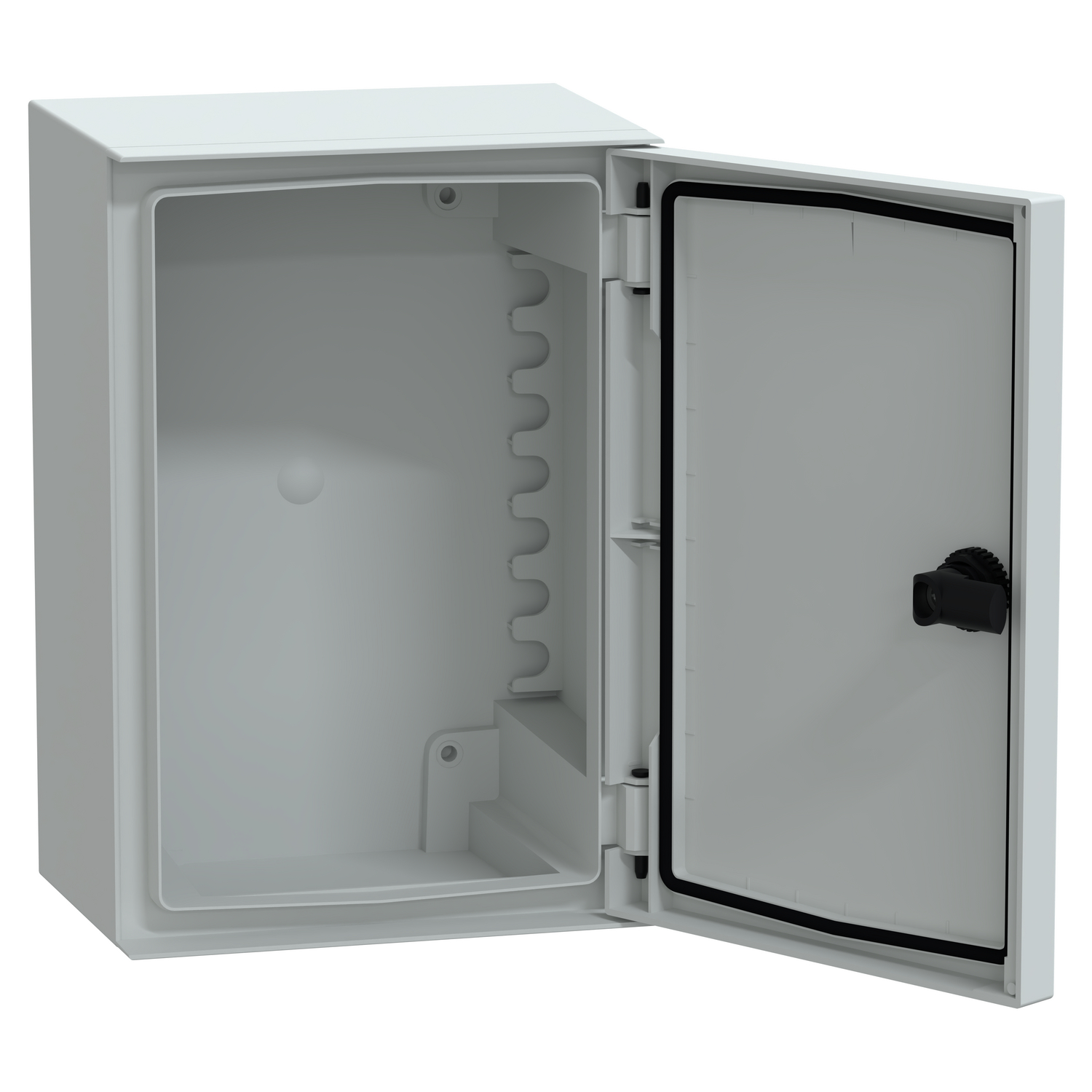

Carcasa cu montaj pe perete ABS/PC monobloc IP66 H310xW215xD160mm
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Options | |
| Couplable | No |
| Mounting/installation | |
| With mounting plate | No |
| Suitable for metrical mounting | - |
| Intermediate mounting | No |
| Suitable for wall mounting | Yes |
| Suitable for wall built-in | Yes |
| Mounting plate depth-adjustable | Yes |
| Pole fastening | Yes |
| Model/type | |
| Freestanding | No |
| With glazed door | No |
| Pitched roof | No |
| Floor standing wall model | - |
| Number of doors | 1 |
| Number of locks | 1 |
| Corner model | No |
| With ventilation door | No |
| EMC-version | No |
| With rear door | No |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Measurements | |
| Height | 310 mm |
| Width | 215 mm |
| Depth | 160 mm |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Material | |
| Surface finishing | Untreated |
| Material | Plastic |
| Material quality | Other |
| Application | |
| Suitable for outdoor set-up | Yes |
| Performance | |
| Max. permitted load of the mounting plate according to IEC 62208 | 55 N |
| Max. permitted load of the enclosure according to IEC 62208 | 113 N |
| Max. permitted load of the door(s) according to IEC 62208 | 18 N |
| Other | |
| Impact strength | IK10 |
| Energy efficiency/environmental | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | - |
| Package 1 | |
| volume | 13650 cm3 |
| weight | 1,44 kg |
| length | 32,5 cm |
| width | 24 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480776472 |
| Package 2 | |
| volume | 1238400 cm3 |
| weight | 111 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 70 |
| qmin | 70 |
| um | PF |
