Descriere

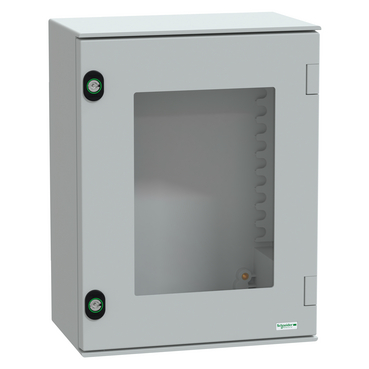

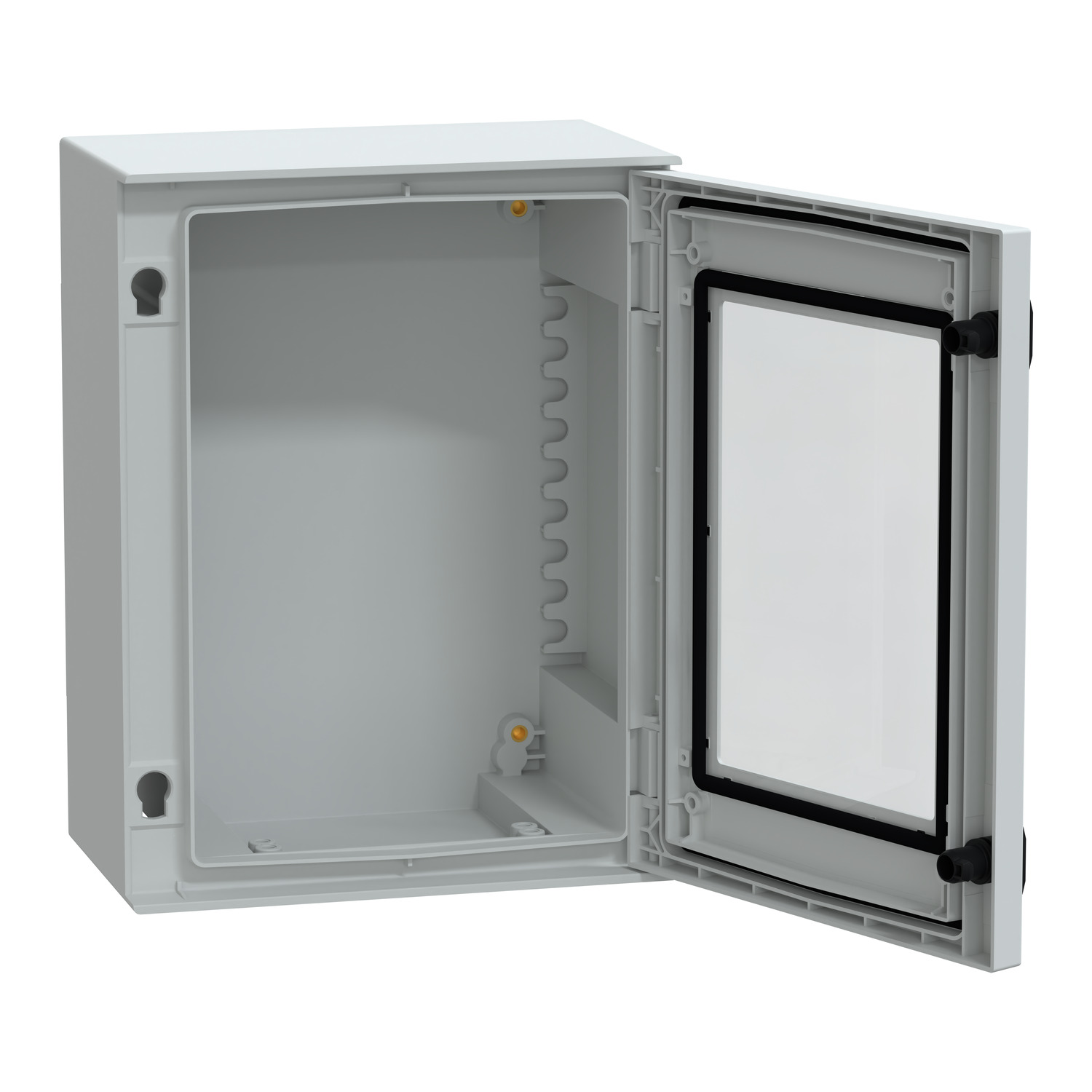

Carcasa montare perete poliester monobloc IP66 H430xW330xD200mm usa cu geam
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Options | |
| Couplable | No |
| Mounting/installation | |
| With mounting plate | No |
| Suitable for metrical mounting | - |
| Intermediate mounting | No |
| Suitable for wall mounting | Yes |
| Suitable for wall built-in | Yes |
| Mounting plate depth-adjustable | Yes |
| Pole fastening | Yes |
| Model/type | |
| Freestanding | No |
| With glazed door | Yes |
| Pitched roof | No |
| Floor standing wall model | - |
| Number of doors | 1 |
| Number of locks | 2 |
| Corner model | No |
| With ventilation door | No |
| EMC-version | No |
| With rear door | No |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Measurements | |
| Height | 430 mm |
| Width | 330 mm |
| Depth | 200 mm |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Material | |
| Surface finishing | Untreated |
| Material | Plastic |
| Material quality | Polyester |
| Application | |
| Suitable for outdoor set-up | Yes |
| Performance | |
| Max. permitted load of the mounting plate according to IEC 62208 | 129 N |
| Max. permitted load of the enclosure according to IEC 62208 | 178 N |
| Max. permitted load of the door(s) according to IEC 62208 | - |
| Other | |
| Impact strength | IK08 |
| Energy efficiency/environmental | |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 | - |
| Package 1 | |
| volume | 42875 cm3 |
| weight | 6,038 kg |
| length | 49 cm |
| width | 35 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480776540 |
| Package 2 | |
| volume | 1428000 cm3 |
| weight | 196,14 kg |
| length | 120 cm |
| width | 100 cm |
| qmax | 30 |
| qmin | 30 |
| um | PF |
