Descriere

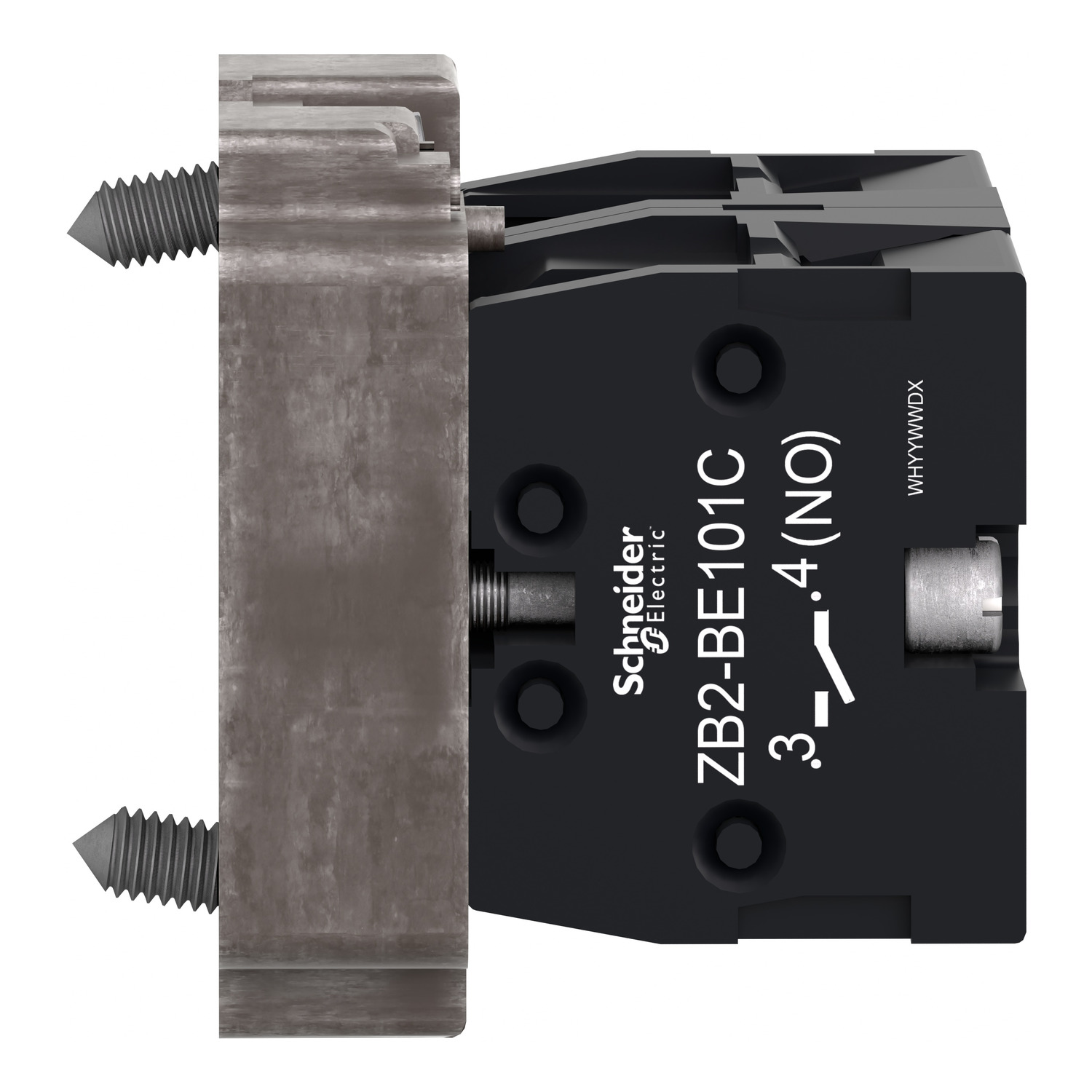

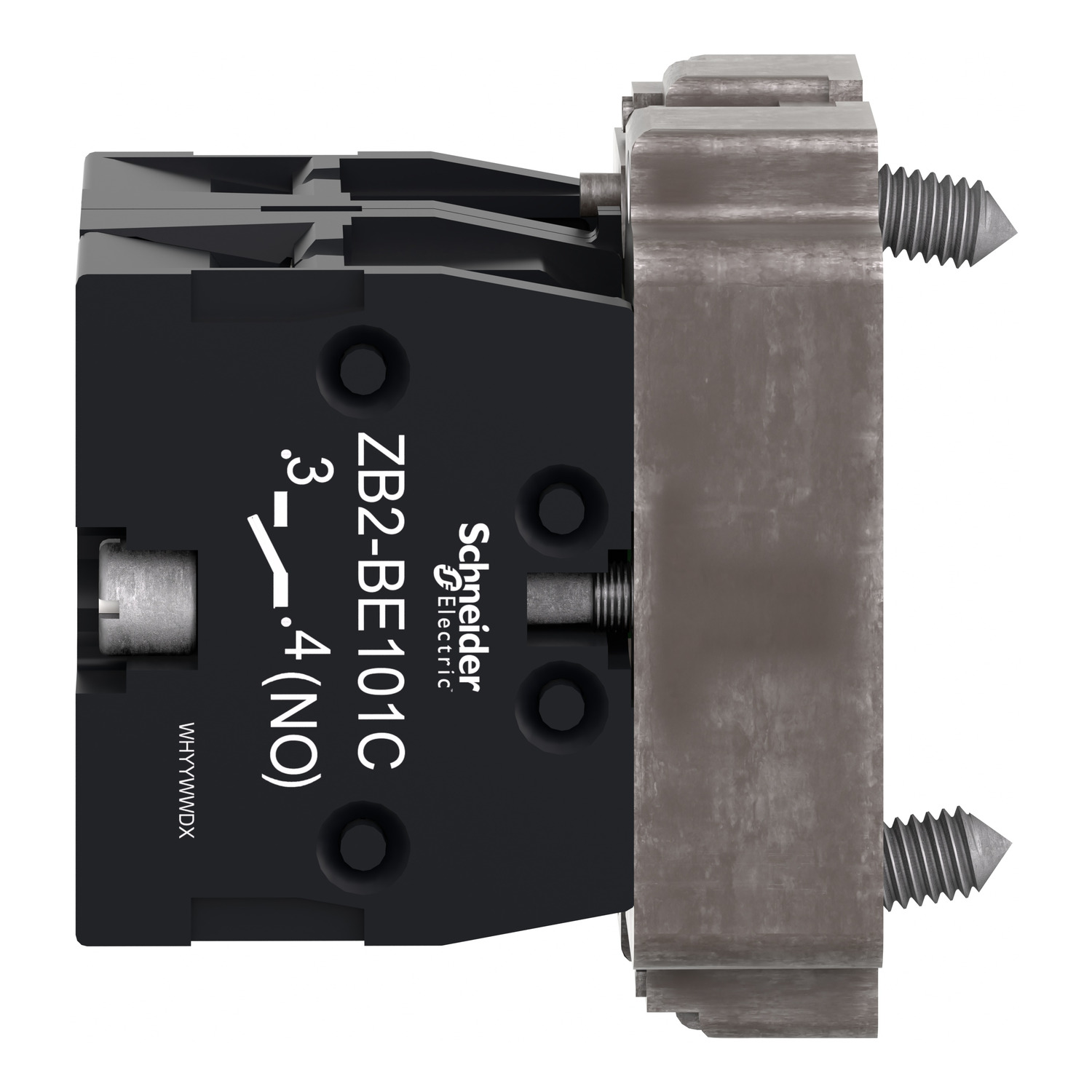

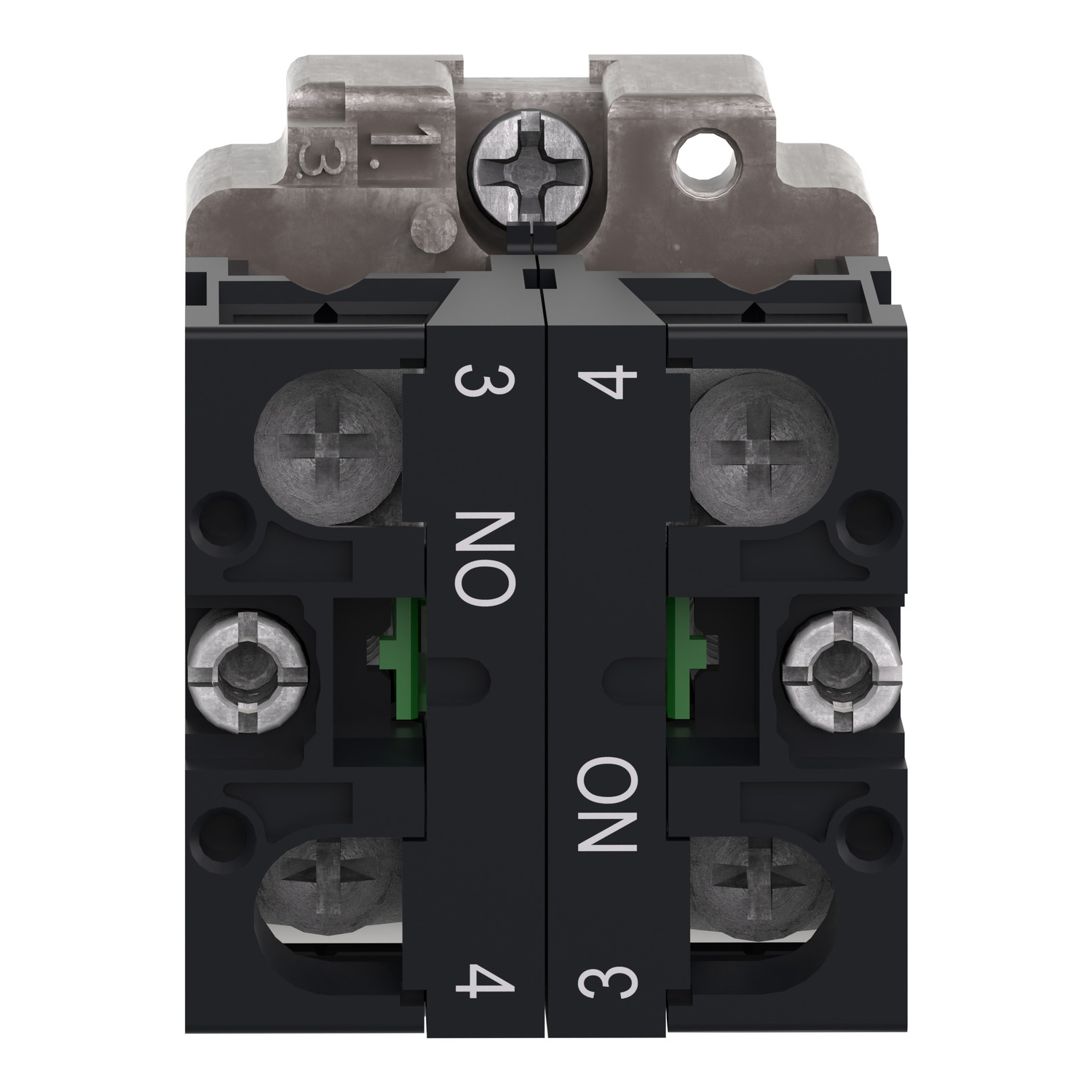

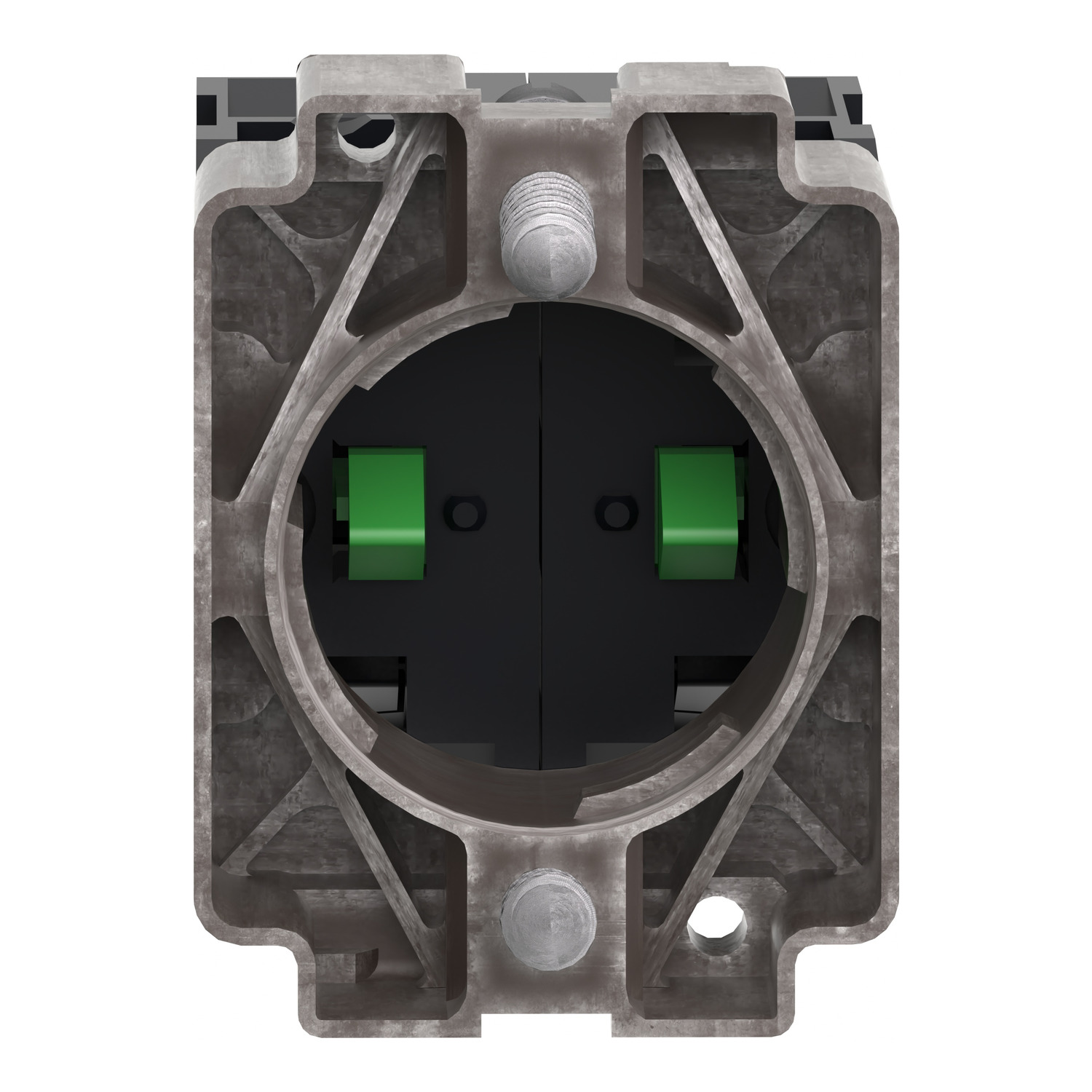

Contact cu corp de buton si elemente de fixare, Easy Harmony XB2, metal, terminale cu surub, 2NO
Documente
Specificatii
| Model/type | |
| With light source | No |
| Lamp holder | None |
| With integrated diode | No |
| Lamp type | - |
| Mounting/installation | |
| Type of fastening | Other |
| Connection | |
| Connection type auxiliary circuit | Screw connection |
| Electrical | |
| With integrated voltage decreasing resistor | No |
| Rated voltage Ue at AC 50 Hz | - |
| Rated voltage Ue at DC | - |
| Voltage type for actuating | - |
| Rated voltage Ue at AC 60 Hz | - |
| Options | |
| Transformer integrated | No |
| Colour | |
| Colour light source | - |
| Package 1 | |
| volume | 46,4487 cm3 |
| weight | 50,6 g |
| length | 4,19 cm |
| width | 3,72 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480975882 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,375 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 23606480975886 |
| Package 3 | |
| volume | 456000 cm3 |
| weight | 94,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1600 |
| qmin | 1600 |
| um | PF |
