Descriere

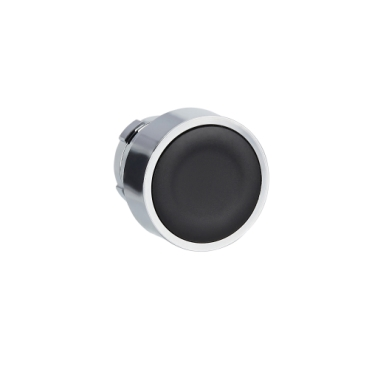

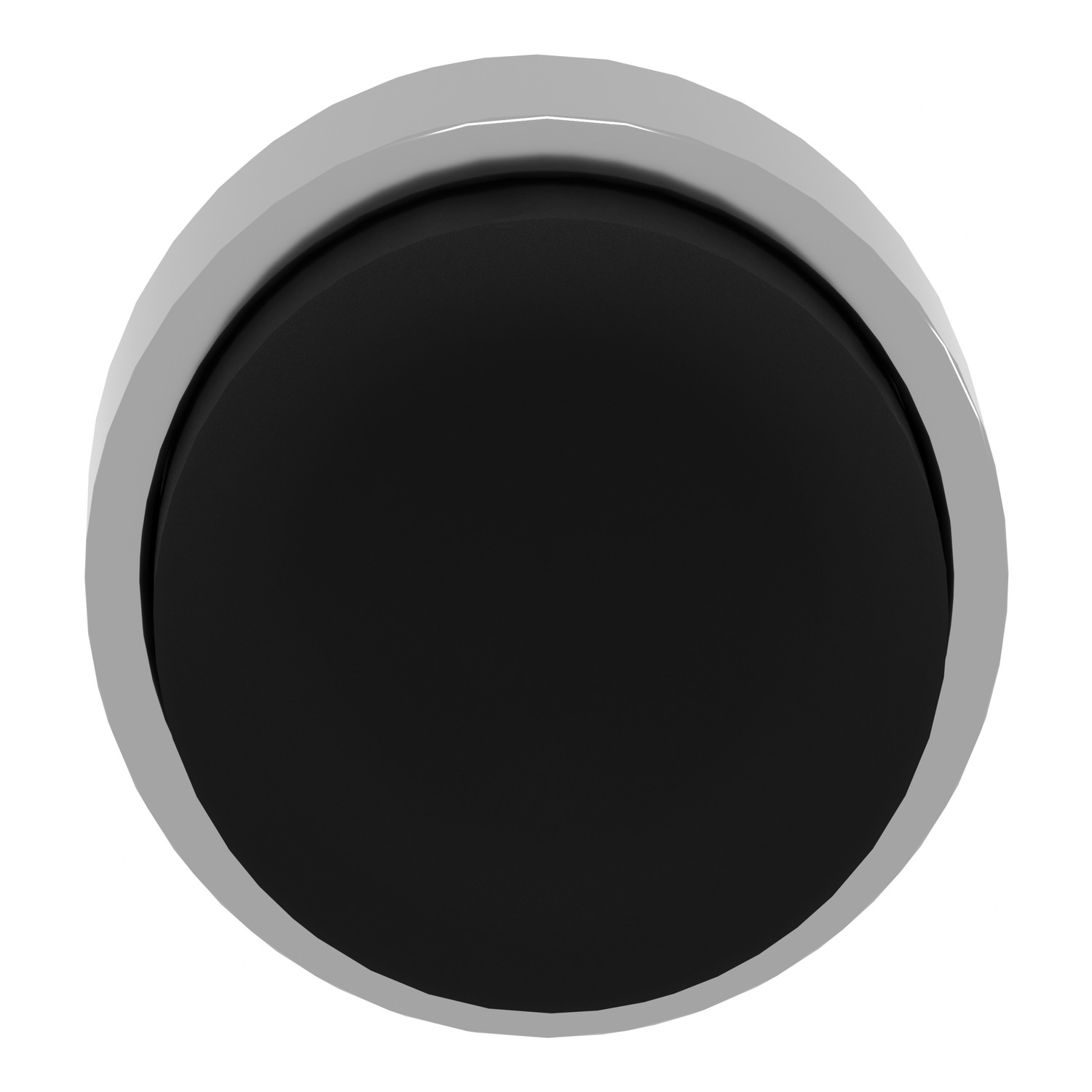

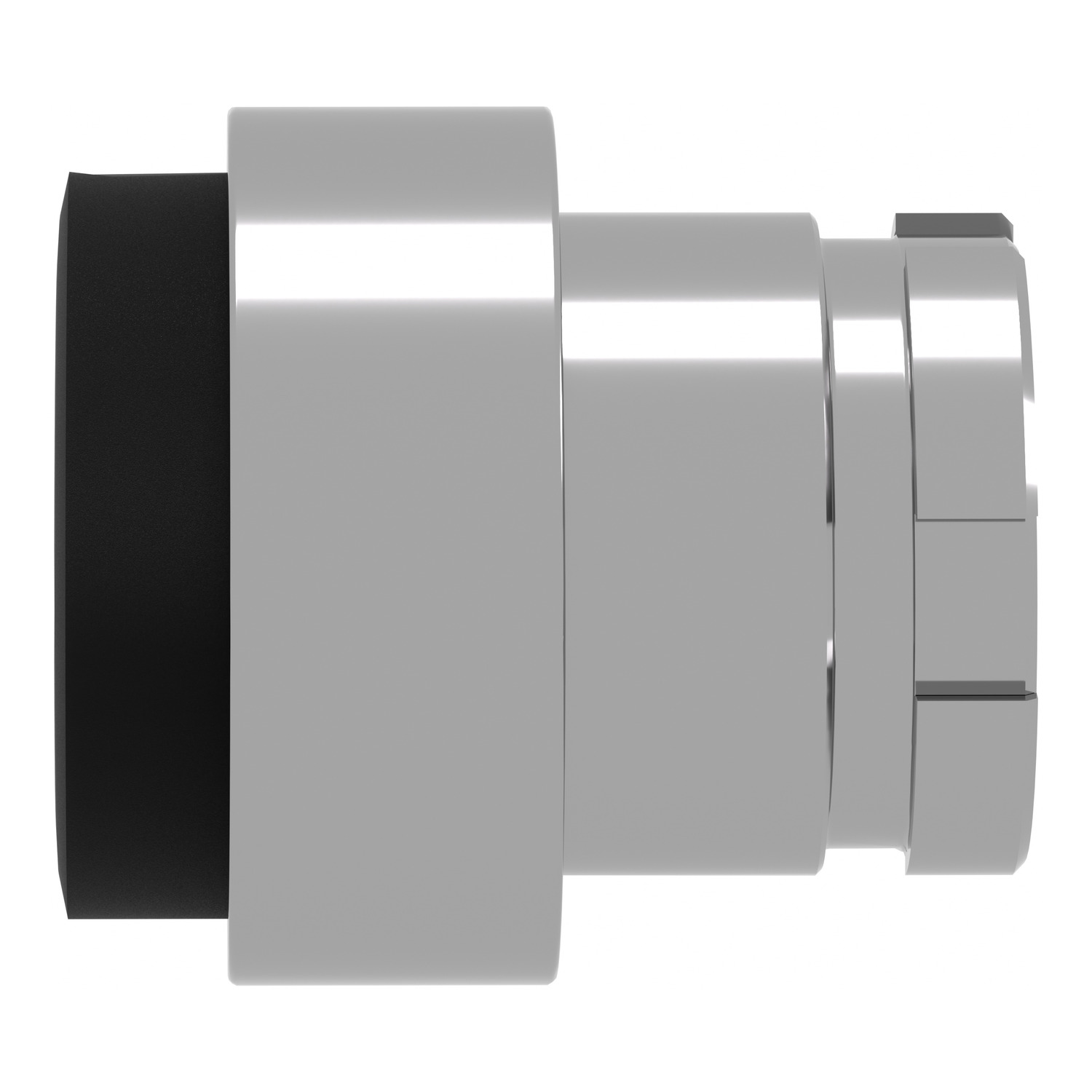

Cap de buton, Easy Harmony XB2, metal, proeminent, negru, 22mm, cu revenire, nemarcat
Documente
Specificatii
| Options | |
| Labelled | No |
| Spring-return | Yes |
| Switching function latching | No |
| Colour | |
| Colour front ring | Chrome |
| Colour button | Black |
| Model/type | |
| With protective cover | No |
| Type of button | Flat |
| Construction type lens | Round |
| With front ring | Yes |
| Number of command positions | 1 |
| Material | |
| Material front ring | Metal |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA), front side | - |
| Application | |
| Suitable for lighting | No |
| Package 1 | |
| volume | 28,3417 cm3 |
| weight | 29,6 g |
| length | 3,37 cm |
| width | 2,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480906220 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 5,3 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 150 |
| qmin | 150 |
| um | CT |
| gtin | 23606480906224 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 105,2 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 3000 |
| qmin | 3000 |
| um | PF |
