Descriere

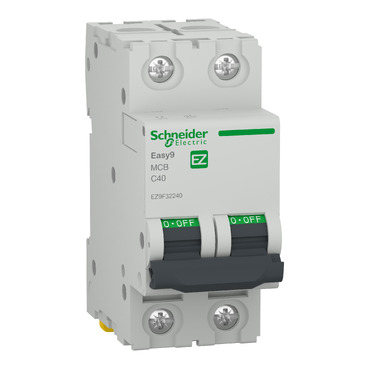

Acest produs Easy9 este un intreruptor automat de joasa tensiune (MCB). Este un disjunctor 2P cu 2 poli protejati, curent nominal In 40 A si curba de declansare C. Capacitatea nominala de rupere la scurtcircuit Icn este de pana la 4500 A la 400 V c.a. conform standardului IEC 60898-1. Este in conformitate cu standardul IEC 60898-1. Acest produs asigura protectia la scurtcircuit si la suprasarcina. Acesta indica declansarea la defect pe partea frontala prin pozitia manerului (gravat O-I). Acest produs este dedicat cladirilor rezidentiale si cladirilor comerciale mici. Are o anduranta electrica de pana la 4000 de cicluri si o anduranta mecanica de pana la 10000 de cicluri. Tensiunea de operare Ue este de 400 V c.a. Tensiunea nominala de rezistenta la impuls Uimp este de 4 kV. Frecventa de functionare este de 50 Hz. Poate fi montat pe sina DIN pentru instalare modulara. Latimea sa este de 4 module de 9 mm. Dimensiunile sunt (L) 36mm x (I) 82mm x (a) 74mm. In conformitate cu standardul SE EN 60529, gradul de protectie este IP20 si IP40 in cofret. Temperatura de functionare este de la -25°C la 60°C. Temperatura de depozitare este de la -40°C la 85°C.
Documente
Specificatii
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 2 |
| Measurements | |
| Built-in depth | 45 mm |
| Width in number of modular spacings | 2 |
| Model/type | |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Electrical | |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 4.5 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | - |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 4.5 kA |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 40 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Voltage type | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | - |
| Overvoltage category | 3 |
| Current limiting class | 3 |
| Options | |
| Additional equipment possible | No |
| Concurrently switching neutral conductor | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -25 °C |
| Package 1 | |
| volume | 223,125 cm3 |
| weight | 236 g |
| length | 8,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481492999 |
| Package 2 | |
| volume | 1496 cm3 |
| weight | 1,457 kg |
| length | 22 cm |
| width | 8,5 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606481492996 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,593 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 42 |
| qmin | 42 |
| um | CT |
| gtin | 43606481492997 |
| Package 4 | |
| weight | 96,744 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 336 |
| qmin | 336 |
| um | PF |
