Descriere

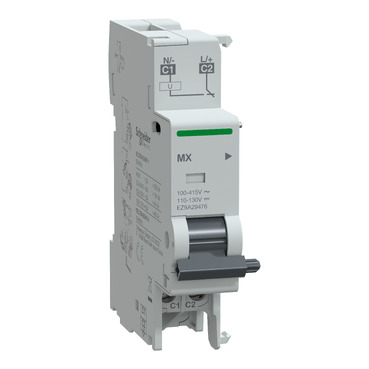

Asigurati siguranta si controlul in sistemele dumneavoastra electrice cu auxiliarul de declansare shunt Easy9 Pro pentru intrerupatorul automat miniatura Easy9 Pro. Tensiunea circuitului de comanda Uc este 110…415VAC la 50/60Hz, sau 110…130VDC. Acest produs este in conformitate cu standardele IEC/EN 60947-5-1. Temperatura de functionare este -25°C pana la 50°C. Latimea sa in module de 9mm este 2. Gama Easy9 Pro este conceputa pentru a se potrivi usor diverselor aplicatii si tipuri de proiecte. De la indicatori de siguranta si caracteristici de design pana la protectie robusta impotriva scurtcircuitului, ofera fiabilitate instalatiilor dumneavoastra si flexibilitate pentru a se potrivi nevoilor dumneavoastra.
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Connection | |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Electrical | |
| Rated voltage | 415 V |
| Suitable for max. current main contact unit | 63 A |
| Rated switch current | - |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Measurements | |
| Width in number of modular spacings | 1 |
| Other | |
| Device fitting | Miniature circuit breaker (MCB) |
| Package 1 | |
| volume | 192,27 cm3 |
| weight | 78 g |
| length | 8,5 cm |
| width | 2,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606486837030 |
| Package 2 | |
| volume | 2835 cm3 |
| weight | 936 g |
| length | 35 cm |
| width | 9 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606486837037 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 8,5 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 108 |
| qmin | 108 |
| um | CT |
| gtin | 43606486837038 |
| Package 4 | |
| weight | 78 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1296 |
| qmin | 1296 |
| um | PF |
