Descriere

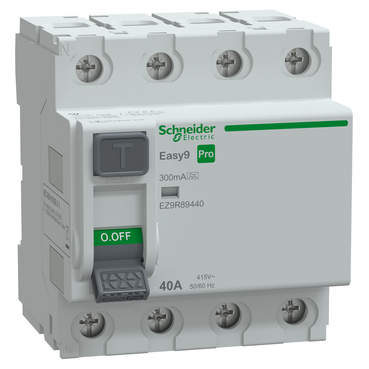

Experimentati protectie optima impotriva socului electric de la contact direct sau indirect si pericolelor de incendiu cu intrerupatorul automat diferential Easy9 Pro 4P 40A biconect. Are o sensibilitate de 300mA cu o clasa de protectie de tip A. Este conform cu standardul IEC/EN 61008-1 si IEC/EN 61008-2-1. Are un curent nominal de scurtcircuit conditional de 10kA. Tensiunea nominala de izolare Ui este de 500 V c.a. Tensiunea nominala de rezistenta la impuls Uimp este de 4 kV. Pentru instalare modulara, dispozitivul poate fi montat pe sina DIN. Latimea sa in module de 9mm este 8. Gradul sau de protectie este IP20 si IP40 intr-o carcasa. Temperatura de functionare este de la -5°C la 60°C. Gama Easy9 Pro este conceputa pentru a se potrivi usor diverselor aplicatii si tipuri de proiecte. De la indicatori de siguranta si caracteristici de design pana la protectie robusta impotriva scurtcircuitului, ofera fiabilitate instalatiilor dumneavoastra si flexibilitate pentru a se potrivi nevoilor dumneavoastra.
Documente
Specificatii
| Electrical | |
| Rated current | 40 A |
| Rated voltage | 415 V |
| Voltage type | AC |
| Short-circuit breaking capacity (Icw) | 10 kA |
| Rated insulation voltage Ui | 500 V |
| Surge current capacity | 0.25 kA |
| Rated fault current | 0.3 A |
| Number of poles | 4 |
| Rated impulse withstand voltage Uimp | 4 kV |
| Leakage current type | A |
| Model/type | |
| Short-time delayed tripping | No |
| With interlocking device | No |
| Measurements | |
| Built-in depth | - |
| Width in number of modular spacings | 4 |
| Protection | |
| Explosion-proof | No |
| Selective protection | No |
| Degree of protection (IP) | IP20 |
| Other | |
| Frequency | 50/60 Hz |
| Pollution degree | 2 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Connection | |
| Connectable conductor cross section solid-core | 1 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -5 °C |
| Options | |
| Additional equipment possible | No |
| Package 1 | |
| volume | 559,65 cm3 |
| weight | 352 g |
| length | 9,1 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606487198000 |
| Package 2 | |
| volume | 2233,231 cm3 |
| weight | 1,056 kg |
| length | 9,1 cm |
| width | 9,7 cm |
| qmax | 3 |
| qmin | 3 |
| um | BX |
| gtin | 13606487198007 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 10,144 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 23606487198004 |
| Package 4 | |
| weight | 84,532 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 216 |
| qmin | 216 |
| um | PF |
