Descriere

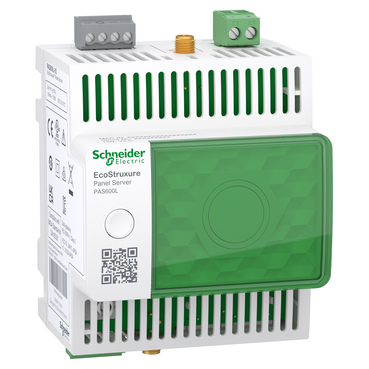

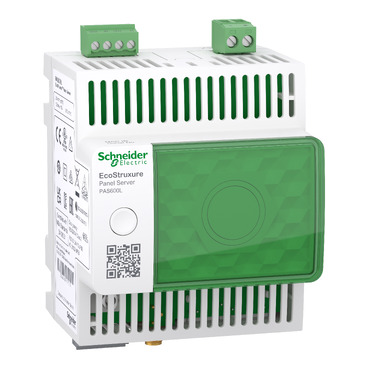

EcoStruxure Panel Server, universal wireless, concentrator modbus 24 Vc.c.
Documente
Specificatii
| Options | |
| Updateable | Yes |
| Visualization | No |
| Radio frequency bidirectional | Yes |
| Provider dependent | No |
| Communication | |
| Radio interface | Yes |
| IR interface | No |
| Bus system radio frequency | Yes |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | Other |
| Bus system KNX | No |
| Bus system LON | No |
| Protocol | TCP/IP |
| Electrical | |
| Operating voltage | 24 V |
| Voltage type | DC |
| Power consumption | 3 W |
| Model/type | |
| Model | Other |
| Number of channels | 1 |
| Web-Server | Yes |
| Demounting protection | No |
| With LED indication | Yes |
| Measurements | |
| Width in number of modular spacings | 4 |
| Protection | |
| Degree of protection (IP) | IP30 |
| Other | |
| Max. number of devices per channel | 128 |
| Mounting/installation | |
| Mounting method | Built-in installation |
| Package 1 | |
| volume | 894,96 cm3 |
| weight | 254 g |
| length | 11,3 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481014320 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,444 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 27 |
| qmin | 27 |
| um | CT |
| gtin | 13606481014327 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 69,552 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 216 |
| qmin | 216 |
| um | PF |
