Descriere

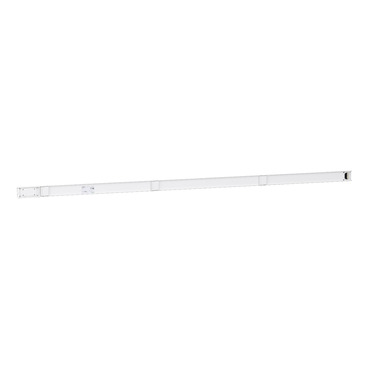

Canalis - Lungime Dreapta - 40 A - 3 Trape Derivatie
Documente
Fisa tehnica
Specificatii
| Measurements | |
| Length | 3000 mm |
| Width | 27.5 mm |
| Height | 92 mm |
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Model/type | |
| Model | Single |
| Number of tap-off units | 3 |
| Electrical | |
| Number of conductors (without earthing) | 4 |
| Rated current AC 50 Hz | 40 A |
| Number of poles | 4 |
| Rated voltage AC 50 Hz | 230 V |
| Options | |
| Flexible | No |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 10850 cm3 |
| weight | 5 kg |
| length | 310 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480003370 |
| Package 2 | |
| volume | 55264 cm3 |
| weight | 20 kg |
| length | 314 cm |
| width | 16 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13606480003377 |
| Package 3 | |
| volume | 921600 cm3 |
| weight | 264 kg |
| length | 320 cm |
| width | 64 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
| gtin | 73606480003379 |
