Descriere

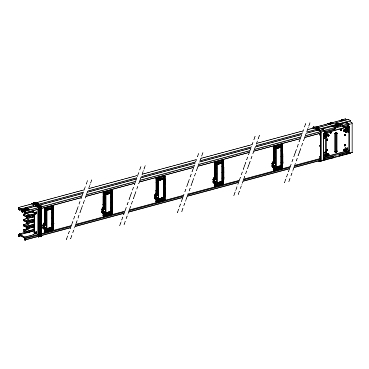

Face parte din sistemul Canalis. Consta dintr-un element de distributie de 5 m, 400 A, echipat cu 10 prize. Toate componentele de traseu sunt livrate cu o unitate de imbinare.
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Measurements | |
| Length | 5000 mm |
| Width | 54 mm |
| Height | 146 mm |
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Model/type | |
| Model | Single |
| Number of tap-off units | 10 |
| Electrical | |
| Number of conductors (without earthing) | 4 |
| Rated current AC 50 Hz | 400 A |
| Number of poles | 5 |
| Rated voltage AC 50 Hz | 230 V |
| Options | |
| Flexible | No |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 62546,4 cm3 |
| weight | 31 kg |
| length | 511 cm |
| width | 7,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480004841 |
| Package 2 | |
| volume | 1580800 cm3 |
| weight | 642 kg |
| length | 520 cm |
| width | 64 cm |
| qmax | 20 |
| qmin | 20 |
| um | PF |
| gtin | 73606480004840 |
