Descriere

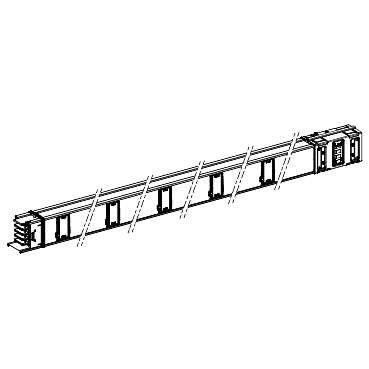

Sistem de distributie prin bare capsulate Canalis pentru KSA. Se aplica la distributia de energie electrica medie cu contact alunecator lubrifiat. Tensiunea de functionare este de la 230 V c.a. 50/60 Hz la 690 V c.a. 50/60 Hz. Curentul nominal de functionare este de 1000 A la 35 °C. Montat cu suruburi cu pozitia de neutru in sus. Bara colectoare de distributie al carei material este aluminiu, iar polaritatea sistemului de distributie este 3L + N + PE si 3L + PEN. Proiectat cu 10 prize de derivatie. Ofera un camp magnetic radiat de 1,27 µT. Este conform atat cu IEC 60439-2, cat si cu IEC 61439-6. Este conform cu Programul de date de mediu Schneider Electric (RoHS, REACh, Profilul de mediu al produsului, Instructiuni privind sfarsitul ciclului de viata).
Documente
Specificatii
| Colour | |
| Colour | White |
| RAL-number | 9001 |
| Measurements | |
| Length | 5000 mm |
| Width | 113 mm |
| Height | 146 mm |
| Model/type | |
| Model | Single |
| Number of tap-off units | 10 |
| Electrical | |
| Number of conductors (without earthing) | 4 |
| Rated current AC 50 Hz | 1000 A |
| Number of poles | 4 |
| Rated voltage AC 50 Hz | 690 V |
| Options | |
| Flexible | No |
| Protection | |
| Degree of protection (IP) | IP55 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 104805 cm3 |
| weight | 94,375 kg |
| length | 17 cm |
| width | 513,75 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480003820 |
| Package 2 | |
| volume | 4194240 cm3 |
| weight | 1132,5 kg |
| length | 120 cm |
| width | 514 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 73606480003829 |
| Package 3 | |
| volume | 2340000 cm3 |
| weight | 1157,9 kg |
| length | 65 cm |
| width | 600 cm |
| qmax | 12 |
| qmin | 12 |
| um | PF |
| gtin | 73606480003829 |
