Descriere

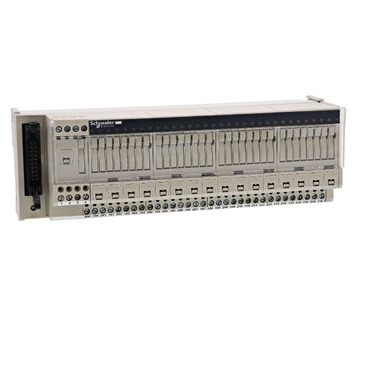

Sub baza de Conectare Pasiva Abe7, 16 Iesiri, Sigurante, Led, Izolator
Documente
Specificatii
| Connection | |
| Number of sensor-/actuator-slots | - |
| Connection for NPN-sensors | No |
| Number of poles sensor/actuator slots | - |
| Thread sleeves sensor/actuator slots | Other |
| Connectable conductor cross section | - |
| Electrical | |
| Operating voltage | - |
| Max. current carrying capacity per socket | - |
| Max. total current | - |
| Max. current carrying capacity per I/O signal | - |
| Rated voltage | - |
| Colour | |
| Housing colour | Other |
| Model/type | |
| With potential separation | No |
| Type of connector for trunk line | - |
| With LED indication | No |
| Type of branches for sensor-/actuator cables | Other |
| Material | |
| Material of contact surface | Other |
| Material contact body | - |
| Housing material | Plastic |
| Material insulation body | Other |
| Measurements | |
| Height | - |
| Width | - |
| Diameter contact female | - |
| Depth | - |
| Length of the preassembled cable | - |
| Cable outer diameter for cable gland | - |
| Protection | |
| Degree of protection (IP) | Other |
| Explosion safety category for dust | Other |
| Explosion safety category for gas | Other |
| Degree of protection (NEMA) | - |
| Other | |
| Pollution degree | 1 |
| Number of channels per connector slot | - |
| Options | |
| Cable length configurable | No |
| Application | |
| Fix cable version suitable for cable guide chain | No |
| Operating conditions | |
| Operating temperature | 20 °C |
| Package 1 | |
| volume | 1190,884 cm3 |
| weight | 620 g |
| length | 21,1 cm |
| width | 8,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110644494 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,418 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 16 |
| qmin | 16 |
| um | CT |
| gtin | 43389110644492 |
