Descriere

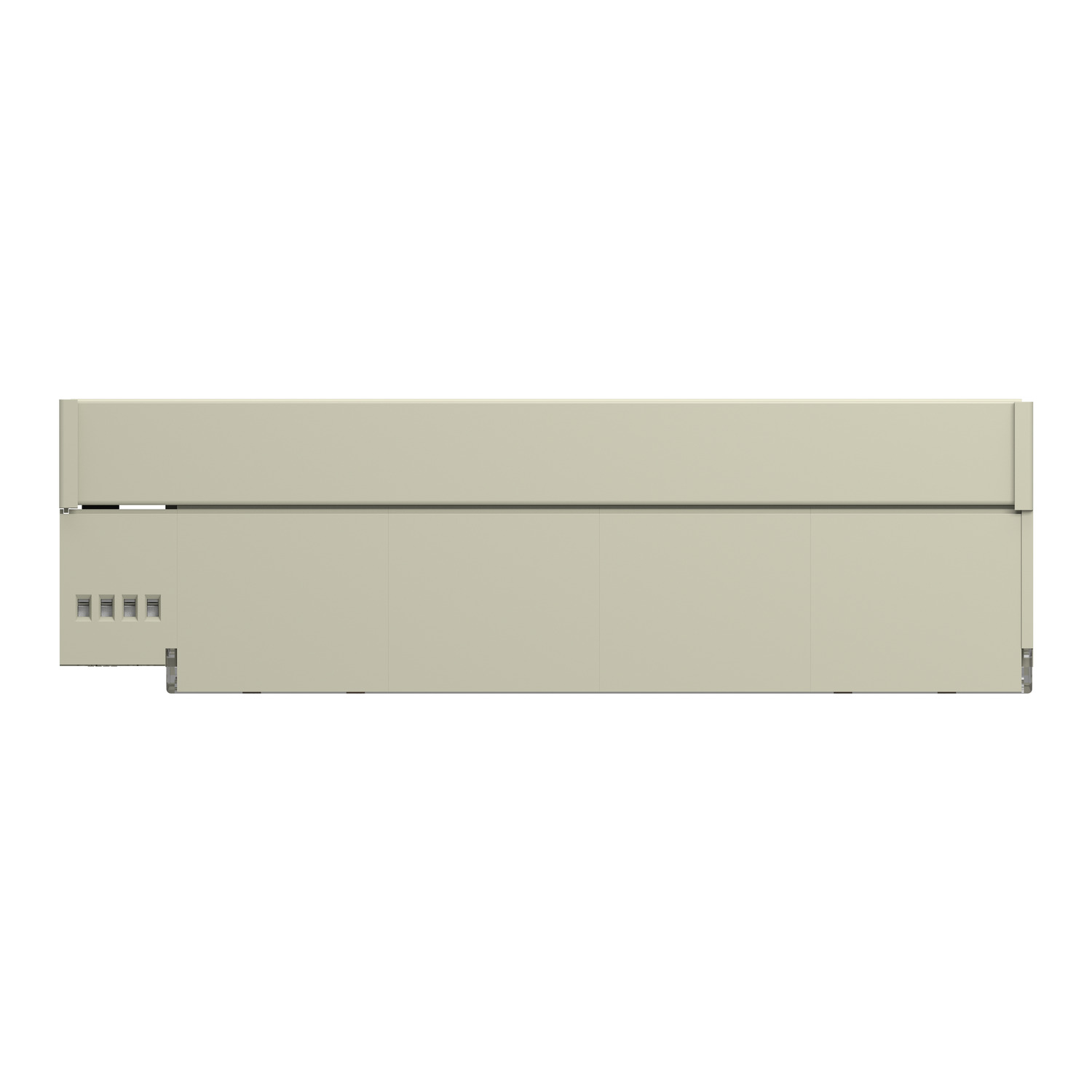

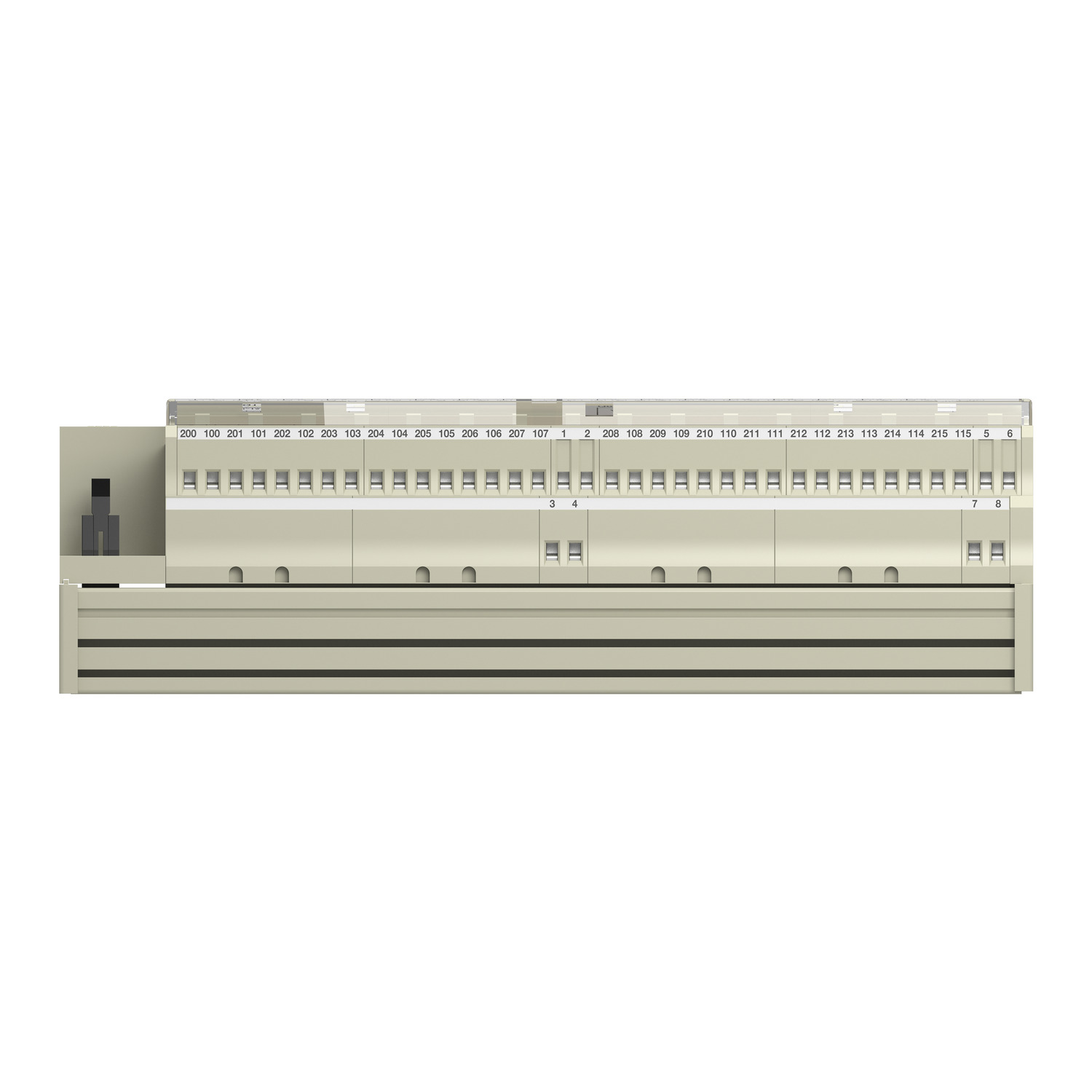

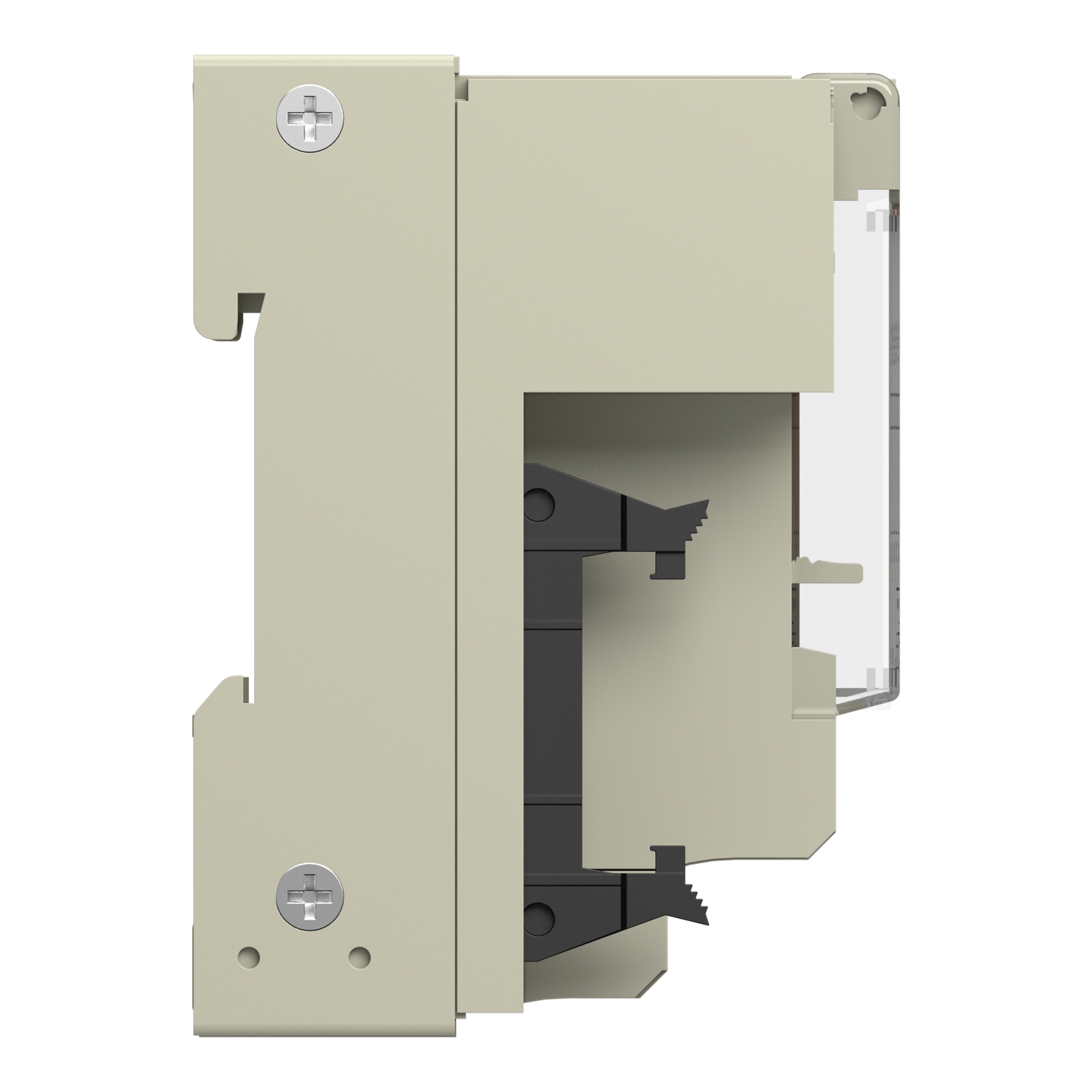

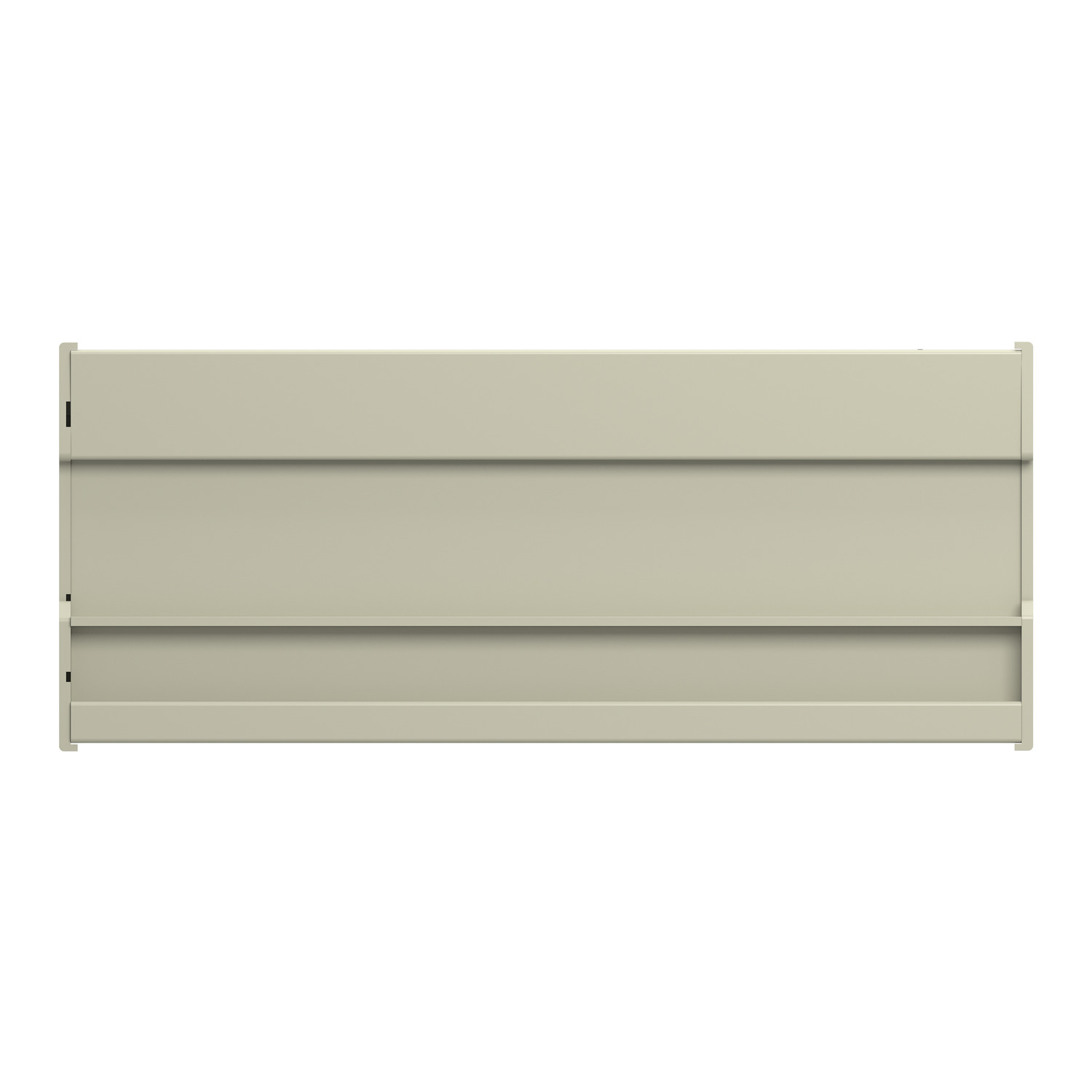

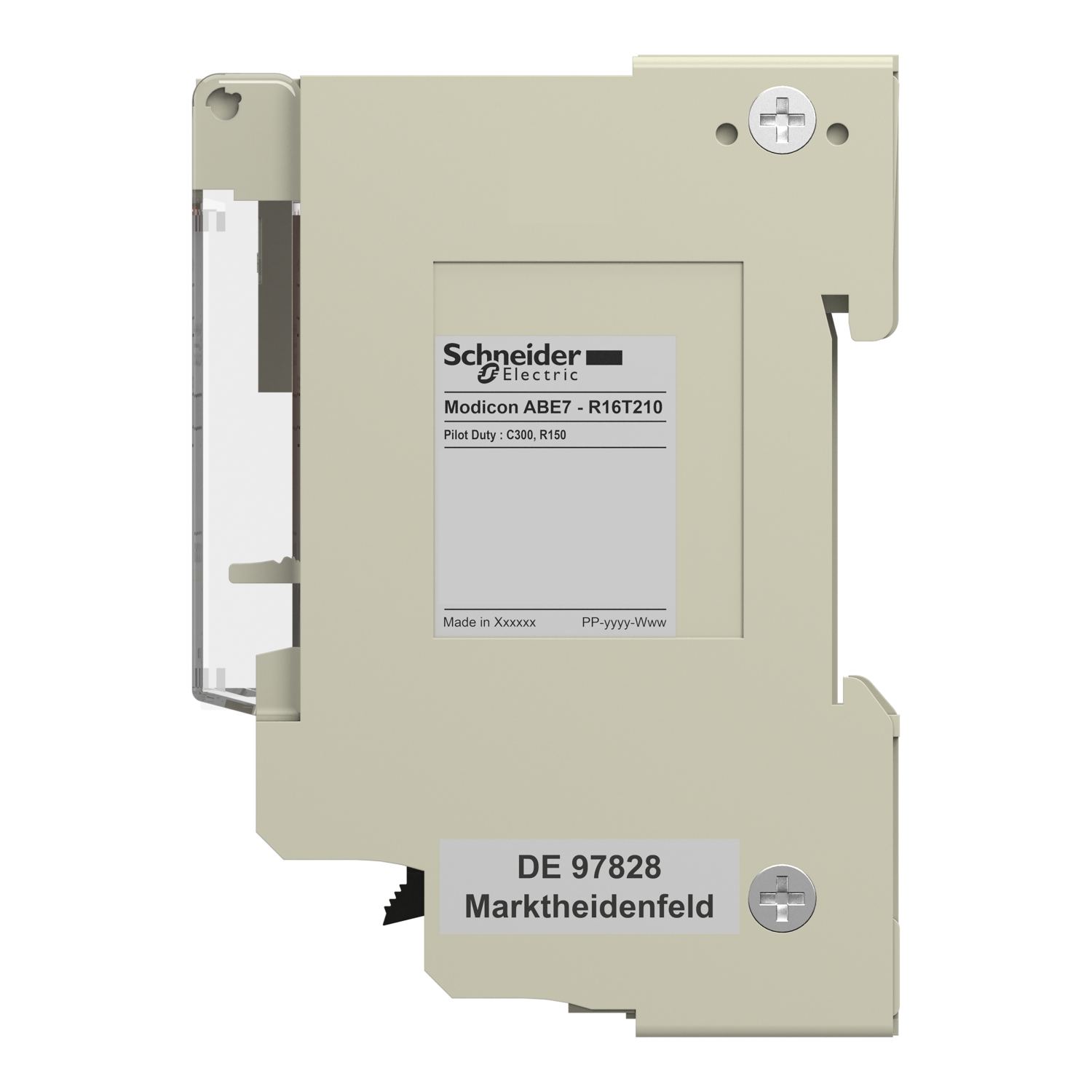

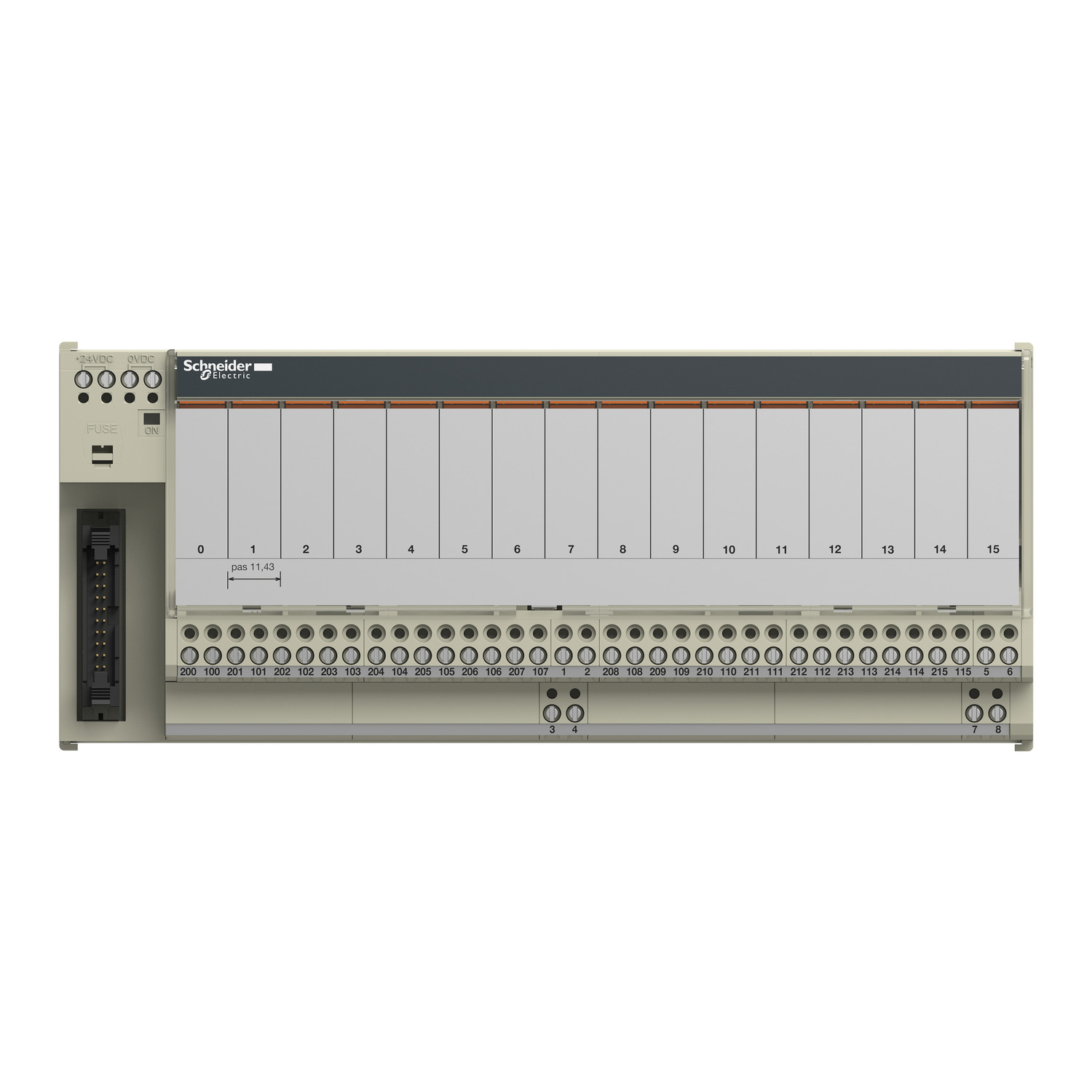

Sub baza, Relee Electromecanice Sudate Abe7, 16 Canale, Releu 10 Mm
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Colour | |
| Colour | Grey |
| Transparent | No |
| Connection | |
| Type of electrical connection 2 | Plug-in connection |
| Type of electrical connection 1 | Screw connection |
| Number of clamp positions per pole | 2 |
| Connectable conductor cross section solid-core | 0.324 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve | - |
| Connectable conductor cross section multi-wired | - |
| Connectable conductor cross section fine-strand without cable end sleeve | - |
| Measurements | |
| Width | - |
| Depth | - |
| Height | - |
| Electrical | |
| Rated voltage | 24 V |
| Number of poles | 16 |
| Rated current In | 0.09 A |
| Protection | |
| Inflammability class of insulation material according to UL94 | Other |
| Explosion-tested version 'Ex e' | No |
| Material | |
| Halogen free | No |
| Material insulation body | Thermoplastic |
| Mounting/installation | |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Drill hole distance centrically | 10 mm |
| Operating conditions | |
| Closing plate required | No |
| Operating temperature | -5 °C |
| Package 1 | |
| volume | 1590,528 cm3 |
| weight | 702 g |
| length | 21,8 cm |
| width | 9,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110644630 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 8,926 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43389110644638 |
