Descriere

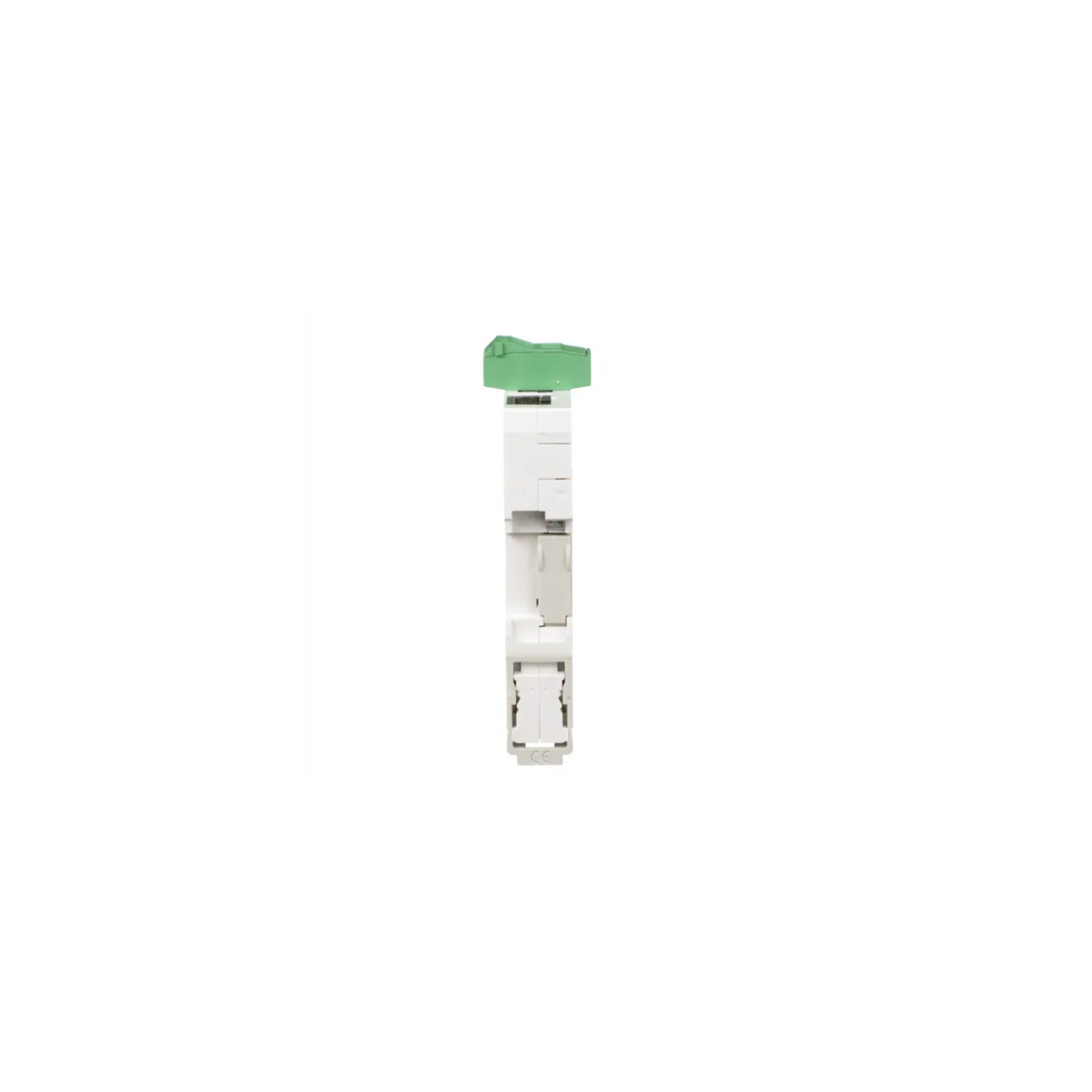

Acest IFM este un modul de interfata Modbus si face parte din sistemul de comunicatii EnerlinX. Este necesar pentru conectarea disjunctoarelor Masterpact, Compact si PowerPact la o retea cu linie seriala Modbus. Odata conectat, disjunctorul este considerat ca slave de Modbus master. Adresa Modbus se seteaza usor cu ajutorul a doua comutatoare rotative de pe partea frontala. Este echipat in partea superioara cu o regleta de borne cu cleme cu surub de 24 V c.c. si o priza RJ45 pentru linia seriala Modbus. Este echipat in partea inferioara cu doua prize RJ45 pentru conexiunea la reteaua interna ULP (Universal Logic Plug). Interfata IFM este un dispozitiv cu montare pe sina DIN, iar dimensiunile sale sunt de 18 mm x 72 mm x 96 mm. Gradul de protectie este IP4x pe partea frontala si IP2x la conectori. Interfata IFM este parte integranta din arhitectura EcoStruxure Power. Firmware-ul interfetei IFM poate fi actualizat utilizand software-ul EcoStruxure Power Commission.
Documente
Specificatii
| Communication | |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| System accessory | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard LTE | No |
| Radio standard eGPRS | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | Yes |
| Model/type | |
| With potential separation | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | Level c |
| Connection | |
| Fieldbus connection over separate bus coupler possible | No |
| Measurements | |
| Height | 109 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Degree of protection (IP) | IP20 |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 24 V |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 414 cm3 |
| weight | 117 g |
| length | 11,5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481201683 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,772 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 54 |
| qmin | 54 |
| um | CT |
| gtin | 43606481201681 |
