Descriere

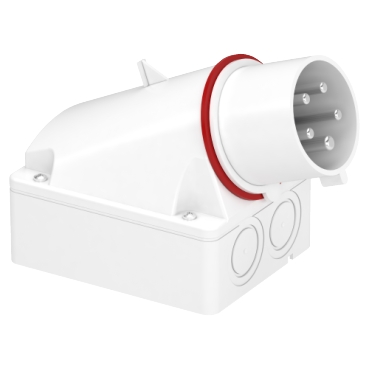

Fisa Industriala Mureva, 32 A, 3P + N + E, 380, 415 V Ac, Ip44
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Amperage according to UL/CSA (for UL-version) | - |
| IEC-amperage | 32 A |
| Rated voltage | 380 V |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 4 |
| Model/type | |
| Construction type | Surface mounted device plug |
| Military model | No |
| Connection | |
| Connection system | Screwed terminal |
| Other | |
| Insert direction | Angled |
| Rated frequency | 50 Hz |
| Clock hour position | 6 h |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Options | |
| Phase inverter | No |
| Colour | |
| Identification colour | Red |
| RAL-number | 7035 |
| Protection | |
| Degree of protection (IP) | IP44 |
| Package 1 | |
| volume | 2362,5 cm3 |
| weight | 399 g |
| length | 18 cm |
| width | 12,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430835219 |
| Package 2 | |
| volume | 8748 cm3 |
| weight | 946 g |
| length | 27 cm |
| width | 27 cm |
| qmax | 2 |
| qmin | 2 |
| um | BX |
| gtin | 23303430835213 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 3,271 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 43303430835217 |
