Descriere

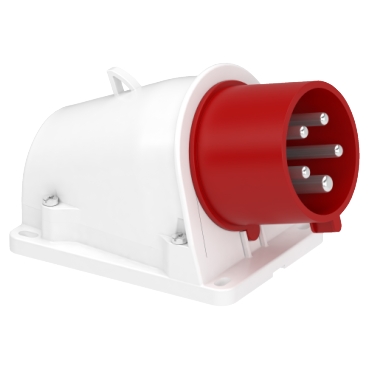

Fisa Mureva, surub, Angulara, 32A, 3P + N + E, 380, 415 V Ac, Perete
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Electrical | |
| Amperage according to UL/CSA (for UL-version) | - |
| IEC-amperage | 32 A |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Rated voltage | 380 V |
| Number of poles | 5 |
| Model/type | |
| Construction type | Surface mounted device plug |
| Military model | No |
| Connection | |
| Connection system | Screwed terminal |
| Other | |
| Insert direction | Angled |
| Rated frequency | 50 Hz |
| Clock hour position | 6 h |
| Material | |
| Material | Plastic |
| Surface coating contacts | - |
| Contact material | - |
| Options | |
| Phase inverter | No |
| Colour | |
| Identification colour | Red |
| RAL-number | 7035 |
| Protection | |
| Degree of protection (IP) | IP44 |
| Package 1 | |
| volume | 1350 cm3 |
| weight | 286 g |
| length | 15 cm |
| width | 10 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303432416676 |
| Package 2 | |
| volume | 12163,5 cm3 |
| weight | 1,862 kg |
| length | 27 cm |
| width | 26,5 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 23303432416670 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 4,135 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43303432416674 |
