Descriere

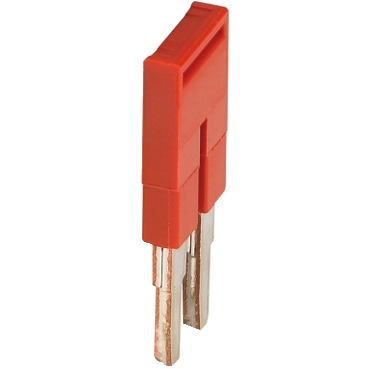

Punte de legatura 2 cai pentru terminale 2,5mm², rosie
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Protection | |
| Explosion-tested version 'Ex e' | No |
| Colour | |
| Colour | Red |
| Electrical | |
| Rated voltage | - |
| Rated current In | 40 A |
| Options | |
| Insulated | Yes |
| Model/type | |
| With contact protection | Yes |
| Number of bridged clamps | 2 |
| Model | Push-in type jumper bar |
| Measurements | |
| Modular spacing | 5 mm |
| Mounting/installation | |
| Mounting method | Pluggable |
| Package 1 | |
| volume | 20,8 cm3 |
| weight | 0,9 g |
| length | 2,6 cm |
| width | 4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480534058 |
| Package 2 | |
| volume | 104 cm3 |
| weight | 84 g |
| length | 13 cm |
| width | 4 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 23606480534052 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 3,136 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 1750 |
| qmin | 1750 |
| um | CT |
| gtin | 43606480534056 |
