Descriere

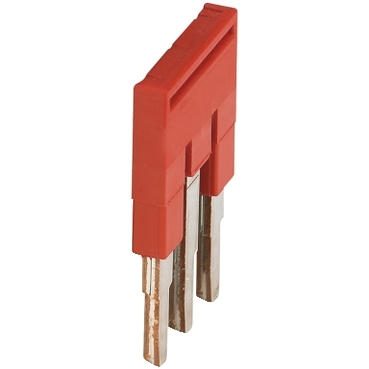

Punte de legatura 3 cai pentru terminale 2,5mm², rosie
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Protection | |
| Explosion-tested version 'Ex e' | No |
| Colour | |
| Colour | Red |
| Options | |
| Insulated | Yes |
| Electrical | |
| Rated voltage | - |
| Rated current In | 40 A |
| Model/type | |
| With contact protection | Yes |
| Number of bridged clamps | 3 |
| Model | Push-in type jumper bar |
| Measurements | |
| Modular spacing | 5 mm |
| Mounting/installation | |
| Mounting method | Pluggable |
| Package 1 | |
| volume | 1,035 cm3 |
| weight | 2 g |
| length | 2,3 cm |
| width | 1,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480534065 |
| Package 2 | |
| volume | 144 cm3 |
| weight | 128 g |
| length | 12 cm |
| width | 8 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 23606480534069 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 3,986 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 1500 |
| qmin | 1500 |
| um | CT |
| gtin | 43606480534063 |
