Descriere

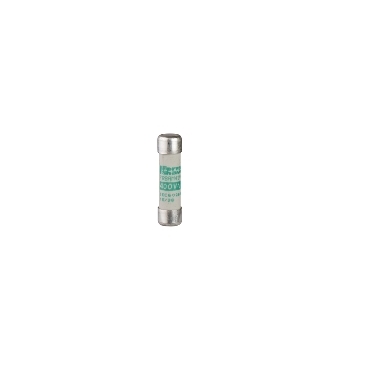

Patron Siguranta Nfc 8,5 X 31,5 Mm - Cilindric - Am 6 A - Fara Indicatie
Documente
Specificatii
| Electrical | |
| Rated current | 6 A |
| Rated voltage | 400 V |
| Release characteristic | Other |
| Power loss at rated current | 0.35 W |
| Breaking capacity | 20 kA |
| Voltage type | AC |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Rated operating frequency | 50 Hz |
| Model/type | |
| Type of fuse status indicator | - |
| Model | Ceramic fuse |
| Measurements | |
| Size | 8x32 mm |
| Package 1 | |
| volume | 32,2 cm3 |
| weight | 4 g |
| length | 7 cm |
| width | 4,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110499063 |
| Package 2 | |
| volume | 32,2 cm3 |
| weight | 43 g |
| length | 7 cm |
| width | 4,6 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110499060 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 4,741 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 1000 |
| qmin | 1000 |
| um | CT |
| gtin | 43389110499061 |
