Descriere

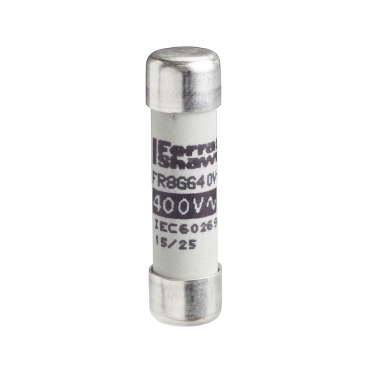

Patron Siguranta Nfc 10 X 38 Mm - Cilindric - Gg 4 A - Fara Indicatie
Documente
Specificatii
| Electrical | |
| Rated current | 4 A |
| Rated voltage | 500 V |
| Release characteristic | Other |
| Power loss at rated current | 0.85 W |
| Breaking capacity | 120 kA |
| Voltage type | AC |
| Model/type | |
| Type of fuse status indicator | - |
| Model | Ceramic fuse |
| Measurements | |
| Size | 10x38 mm |
| Other | |
| Rated operating frequency | 50 Hz |
| Package 1 | |
| volume | 4,477 cm3 |
| weight | 6 g |
| length | 3,7 cm |
| width | 1,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110502084 |
| Package 2 | |
| volume | 57,2 cm3 |
| weight | 77 g |
| length | 8 cm |
| width | 5,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110502081 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 3,988 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 480 |
| qmin | 480 |
| um | CT |
| gtin | 43389110502082 |
