Descriere

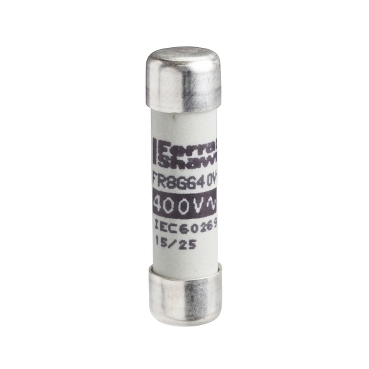

Patron Siguranta Nfc 10 X 38 Mm - Cilindric - Gg 25 A - Fara Indicatie
Documente
Specificatii
| Electrical | |
| Rated current | 25 A |
| Rated voltage | 400 V |
| Release characteristic | Other |
| Breaking capacity | 120 kA |
| Power loss at rated current | 2.7 W |
| Voltage type | AC |
| Model/type | |
| Type of fuse status indicator | - |
| Model | Ceramic fuse |
| Measurements | |
| Size | 10x38 mm |
| Other | |
| Rated operating frequency | 50 Hz |
| Package 1 | |
| volume | 3,8 cm3 |
| weight | 7 g |
| length | 3,8 cm |
| width | 1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110499483 |
| Package 2 | |
| volume | 67,65 cm3 |
| weight | 79 g |
| length | 8,2 cm |
| width | 5,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13389110499480 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 5,918 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 720 |
| qmin | 720 |
| um | CT |
| gtin | 43389110499481 |
Accesorii
