Descriere

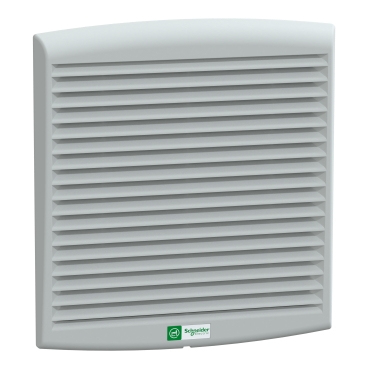

Grila de evacuare 223 x 223 mm fabricata din termoplastic injectat (ASA PC) pentru ventilatorul Prisma P si ClimaSys CV Kitul este format din 1 rama de suport, 1 parte externa si 1 filtru standard sintetic G2 M1. Latimea externa este de 248 mm Gradul de protectie la patrundere (conform IEC 60529) este IP54 Fixare prin suruburi sau prin cleme Dimensiuni decupaj 223 x 223 mm Vopsit in partea externa gri (RAL 7035)
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Measurements | |
| Suitable for enclosure building width | 223 mm |
| Suitable for enclosure building depth | 800 mm |
| Width | 223 mm |
| Height | 223 mm |
| Diameter | - |
| Application | |
| For max. number of fans | 1 |
| Model/type | |
| With built-in filter | Yes |
| Protection | |
| Degree of protection (IP) | IP54 |
| Material | |
| Surface finishing | Untreated |
| Material | Plastic |
| Mounting/installation | |
| Mounting method | Snap mounting |
| Package 1 | |
| volume | 3213 cm3 |
| weight | 533 g |
| length | 28 cm |
| width | 25,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480151545 |
| Package 2 | |
| volume | 48000 cm3 |
| weight | 5,33 kg |
| length | 40 cm |
| width | 40 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 43606480151543 |
| Package 3 | |
| volume | 1257600 cm3 |
| weight | 143 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
| gtin | 73606480151544 |
