Descriere

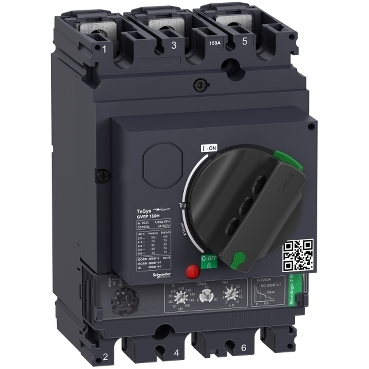

Motor circuit breaker, TeSys GV5, 3P, 150A, Icu 70kA, thermal magnetic
Documente
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Measurements | |
| Width | 105 mm |
| Depth | 155 mm |
| Height | 161 mm |
| Model/type | |
| Type of control element | Turn button |
| With integrated auxiliary switch | No |
| With thermal overload protection | Yes |
| Electrical | |
| Rated operation power at AC-3, 400 V | 110 kW |
| Overload release current setting | 70 A |
| Rated permanent current Iu | 150 A |
| Rated operating voltage | 0 V |
| Rated operation power at AC-3, 230 V | 75 kW |
| Number of poles | 3 |
| With integrated under voltage release | No |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 70 kA |
| Adjustment range undelayed short-circuit release | 150 A |
| Other | |
| Switch off technique | Thermomagnetic |
| Device construction | Complete device in housing |
| Options | |
| Phase failure sensitive | Yes |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 3669,232 cm3 |
| weight | 2,162 kg |
| length | 18,1 cm |
| width | 11,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489915414 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 13,672 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 6 |
| qmin | 6 |
| um | CT |
| gtin | 13606489915411 |
