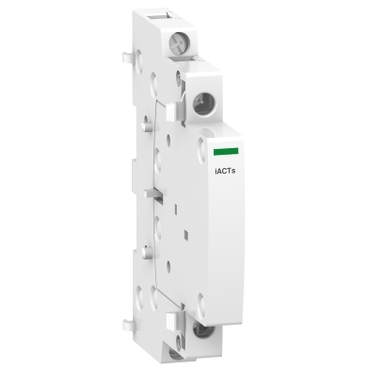

Contact Auxiliar Iacts 2 Nd
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated voltage | 240 V |
| Rated switch current | 5 A |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 100 A |
| Voltage type for actuating | AC/DC |
| Model/type | |
| With auto test for earth leakage function | No |
| Number of fault-signal switches | 0 |
| Additional equipment | Signalling switch |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Contactor/relay |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Options | |
| Installed at the factory | No |
| Package 1 | |
| volume | 142,296 cm3 |
| weight | 43 g |
| length | 8,8 cm |
| width | 2,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480096297 |
| Package 2 | |
| volume | 1748 cm3 |
| weight | 502 g |
| length | 23 cm |
| width | 9,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480096294 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 6,366 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 43606480096295 |
