Descriere

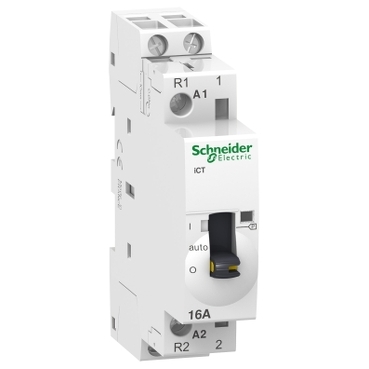

Contactor Ict Comanda Manuala 16A 1Nd 1Ni 230/240V 50Hz
Documente
Specificatii
| Model/type | |
| With day/night function | No |
| Measurements | |
| Built-in depth | 43.5 mm |
| Width in number of modular spacings | 1 |
| Electrical | |
| Max. load fluorescent lamp (parallel compensated) | 800 VA |
| Max. incandescent lamp load | 2000 W |
| Max. load fluorescent lamp | 850 VA |
| Rated excitation voltage | 230 V |
| Max. load fluorescent lamp (Duo circuit) | 1500 VA |
| Rated operation current | 16 A |
| Rated operating voltage | 250 V |
| Voltage type (operating voltage) | AC |
| Voltage type (excitation voltage) | AC |
| Other | |
| Utility category | 7 |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Setting/control | |
| Slider for hand switch | Yes |
| Options | |
| Additional equipment possible | Yes |
| Hum-free | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 104,04 cm3 |
| weight | 117 g |
| length | 8,5 cm |
| width | 1,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480097157 |
| Package 2 | |
| volume | 1748 cm3 |
| weight | 1,476 kg |
| length | 23 cm |
| width | 9,5 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480097154 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 18,367 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 144 |
| qmin | 144 |
| um | CT |
| gtin | 43606480097155 |
