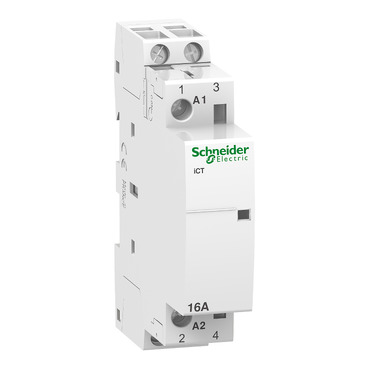

iCT16A 2NO 12Vca 50HZ contactor

Cod produs: A9C22012

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480096914

Contactor Ict 16A 2Nd 12V 50Hz

Model/type
With day/night function	No
Measurements
Built-in depth	43.5 mm
Width in number of modular spacings	1
Electrical
Max. load fluorescent lamp (parallel compensated)	800 VA
Max. incandescent lamp load	2000 W
Rated excitation voltage	12 V
Max. load fluorescent lamp	850 VA
Max. load fluorescent lamp (Duo circuit)	1500 VA
Rated operation current	16 A
Rated operating voltage	250 V
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Other
Utility category	7
Connection
Number of contacts as normally open contact	2
Number of contacts as normally closed contact	0
Setting/control
Slider for hand switch	No
Options
Additional equipment possible	Yes
Hum-free	No
Protection
Degree of protection (IP)	IP20
Package 1
volume	107,1 cm3
weight	116 g
length	8,5 cm
width	7 cm
qmax	1
qmin	1
um	C62
gtin	3606480096914
Package 2
volume	1748 cm3
weight	1,452 kg
length	23 cm
width	9,5 cm
qmax	12
qmin	12
um	BX
gtin	13606480096911
Package 3
volume	36000 cm3
weight	18,06 kg
length	40 cm
width	30 cm
qmax	144
qmin	144
um	CT
gtin	43606480096912

Afiseaza mai multe specificatii
