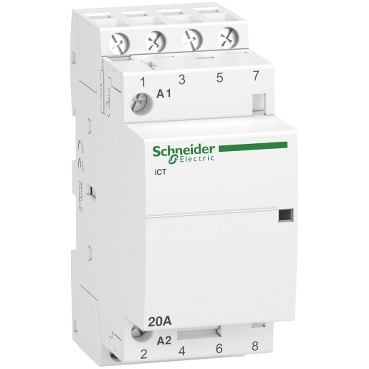

iCT20A 4NO 220...240Vca 50HZ contactor

Cod produs: A9C22824

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480097119

Contactor Ict 20A 4Nd 220/240V 50Hz

Model/type
With day/night function	No
Measurements
Built-in depth	43.5 mm
Width in number of modular spacings	2
Electrical
Max. load fluorescent lamp (parallel compensated)	-
Max. incandescent lamp load	-
Rated excitation voltage	220 V
Max. load fluorescent lamp	-
Max. load fluorescent lamp (Duo circuit)	-
Rated operation current	20 A
Rated operating voltage	400 V
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC
Other
Utility category	7
Connection
Number of contacts as normally open contact	4
Number of contacts as normally closed contact	0
Setting/control
Slider for hand switch	No
Options
Additional equipment possible	Yes
Hum-free	No
Protection
Degree of protection (IP)	IP20
Package 1
volume	528 cm3
weight	236 g
length	12 cm
width	11 cm
qmax	1
qmin	1
um	C62
gtin	3606480097119
Package 2
volume	3593,75 cm3
weight	1,492 kg
length	25 cm
width	12,5 cm
qmax	6
qmin	6
um	BX
gtin	13606480097116
Package 3
volume	36000 cm3
weight	9,437 kg
length	40 cm
width	30 cm
qmax	36
qmin	36
um	CT
gtin	43606480097117
