Descriere

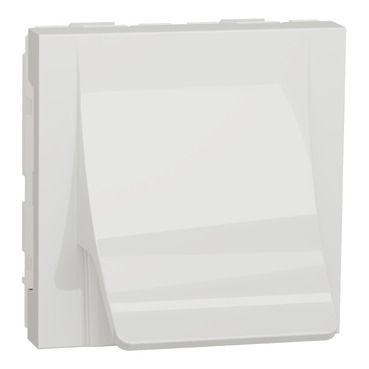

Noua Unica, Iesire cablu 2m alb
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | No |
| With strain relief | Yes |
| With lighting | No |
| Number of modules (module system) | 2 |
| With dust cover | No |
| With imprint | No |
| Assembly arrangement | Basic element with central cover plate |
| With buses/couplings | No |
| Options | |
| Luster terminal | No |
| Support ring | No |
| Imprintable label | Without indication field |
| Shielded buses | No |
| Shielded housing | No |
| Anti-bacterial treatment | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Application | |
| Utilization | Cable outlet |
| Measurements | |
| Device depth | 32 mm |
| Min. depth of built-in installation box | 25 mm |
| Device width | 45 mm |
| Device height | 45 mm |
| Mounting/installation | |
| Type of fastening | Engage (snap) |
| Mounting method | Flush-mounted |
| Other | |
| Outlet direction | Bottom |
| Impact strength | IK04 |
| Connection | |
| Suitable for number of connectors | 1 |
| Package 1 | |
| volume | 121,5 cm3 |
| weight | 22,1 g |
| length | 6 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489456368 |
| Package 2 | |
| volume | 2664 cm3 |
| weight | 308 g |
| length | 18,5 cm |
| width | 18 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606489456365 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 2,916 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 43606489456366 |
