IID 2P 100A 300MA-S AC

Cod produs: A9R15291

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480089275

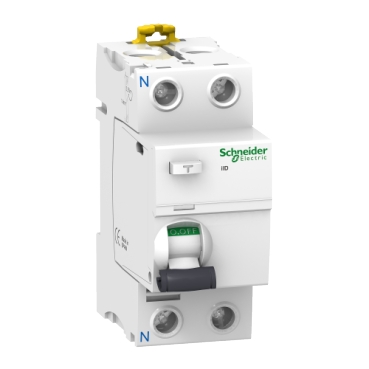

Acti9 iID, Intreruptor Diferential, 2P, 100A, 300mA, Tip AC, Selectiv

Electrical
Rated current	100 A
Rated voltage	230 V
Short-circuit breaking capacity (Icw)	-
Voltage type	AC
Rated insulation voltage Ui	500 V
Surge current capacity	3 kA
Rated fault current	0.3 A
Number of poles	2
Rated impulse withstand voltage Uimp	6 kV
Leakage current type	AC
Model/type
Short-time delayed tripping	Yes
With interlocking device	Yes
Measurements
Built-in depth	44 mm
Width in number of modular spacings	2
Protection
Explosion-proof	No
Degree of protection (IP)	IP20
Selective protection	Yes
Other
Frequency	50/60 Hz
Pollution degree	3
Mounting/installation
Mounting method	DIN rail
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-5 °C
Options
Additional equipment possible	Yes
Package 1
volume	340 cm3
weight	213 g
length	10 cm
width	4 cm
qmax	1
qmin	1
um	C62
gtin	3606480089275
Package 2
volume	2524,5 cm3
weight	1,343 kg
length	25,5 cm
width	11 cm
qmax	6
qmin	6
um	BX
gtin	13606480089272
Package 3
volume	36000 cm3
weight	12,593 kg
length	40 cm
width	30 cm
qmax	54
qmin	54
um	CT
gtin	43606480089273
