IID 4P 80A 300MA A

Cod produs: A9R24480

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606480090738

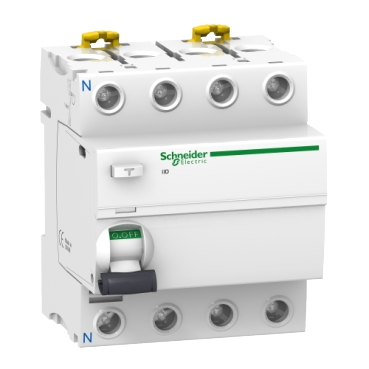

Acti9 iID, Intreruptor Diferential, 4P, 80A, 300mA, Tip A

Electrical
Rated current	80 A
Rated voltage	400 V
Short-circuit breaking capacity (Icw)	-
Voltage type	AC
Rated insulation voltage Ui	500 V
Surge current capacity	0.25 kA
Rated fault current	0.3 A
Number of poles	4
Rated impulse withstand voltage Uimp	6 kV
Leakage current type	A
Measurements
Built-in depth	44 mm
Width in number of modular spacings	4
Model/type
Short-time delayed tripping	No
With interlocking device	Yes
Protection
Explosion-proof	No
Degree of protection (IP)	IP20
Selective protection	No
Other
Frequency	50/60 Hz
Pollution degree	3
Mounting/installation
Mounting method	DIN rail
Connection
Connectable conductor cross section solid-core	1 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-25 °C
Options
Additional equipment possible	Yes
Package 1
volume	628,32 cm3
weight	364 g
length	9,6 cm
width	7,7 cm
qmax	1
qmin	1
um	C62
gtin	3606480090738
Package 2
volume	36000 cm3
weight	10,284 kg
length	40 cm
width	30 cm
qmax	27
qmin	27
um	CT
gtin	43606480090736
