Descriere

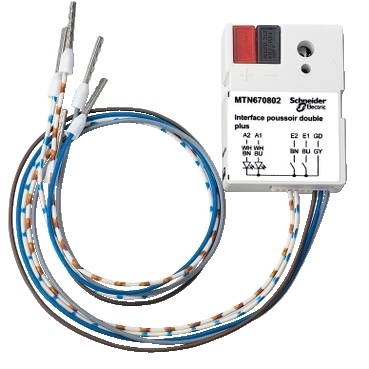

Interfata Buton, Plus 2 Aparate, Alb Polar
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Connection | |
| With bus connection | Yes |
| Number of inputs | 2 |
| Operating conditions | |
| External signal voltage necessary | No |
| Electrical | |
| Input voltage | 24 V |
| Type of voltage (input voltage) | DC |
| Measurements | |
| Width in number of modular spacings | - |
| Min. depth of built-in installation box | 40 mm |
| Model/type | |
| With LED indication | No |
| Communication | |
| Bus system radio frequency | No |
| Other bus systems | None |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system KNX | Yes |
| Bus system LON | No |
| Bus system Powernet | No |
| Setting/control | |
| LED controlling | No |
| Mounting/installation | |
| Mounting method | Built-in installation |
| Options | |
| Radio frequency bidirectional | No |
| Bus module detachable | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 131,4 cm3 |
| weight | 28 g |
| length | 7,5 cm |
| width | 7,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485012216 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,614 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 150 |
| qmin | 150 |
| um | CT |
| gtin | 43606485012214 |
