Descriere

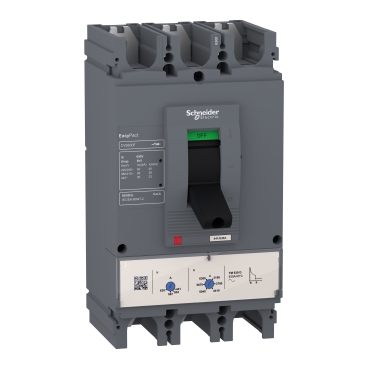

EasyPact CVS400F este un disjunctor fix 3 poli 3d, cu un nivel ridicat de performanta si functionalitate de economisire a costurilor. Este o alegere optima pentru aplicatii de protectie in cladiri de dimensiuni mici si medii. Capacitatea de rupere (Icu) este de 36 kA rms la 415 V c.a. 50/60 Hz. Tensiunea de functionare este de 440 V c.a. 50/60 Hz. Acest produs incorporeaza o unitate de declansare termo-magnetica (TMD) cu un curent nominal de 320 A. Unitatea de declansare TMD ofera o protectie reglabila la suprasarcina termica si o protectie magnetica fixa. Aceasta versiune cu 3 poli (140 mm x 255 mm x 110 mm) este insotita de o varietate de functii si accesorii optionale. EasyPact CVS400F este conform cu standardele internationale (IEC 60947, CCC, EAC). Poate fi instalat in tablouri de distributie cu izolatie de clasa II, deoarece este un dispozitiv cu panou frontal de clasa II (IEC 60664-1).
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | - |
| Number of auxiliary contacts as normally open contact | - |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | Yes |
| Integrated earth fault protection | No |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | 0 A |
| Rated voltage | 440 V |
| Rated permanent current Iu | 400 A |
| Adjustment range short-term delayed short-circuit release | - |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 1600 A |
| Options | |
| Motor drive optional | No |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 6742,5 cm3 |
| weight | 4,824 kg |
| length | 29 cm |
| width | 15,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480247170 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 15,122 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 43606480247178 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 72,488 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 12 |
| qmin | 12 |
| um | PF |
