Descriere

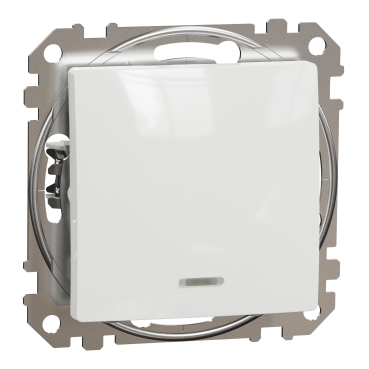

Acesta este un mecanism de comutare cu suport de fixare pentru elementele de design Sedna de la Schneider Electric. Acesta este un intrerupator cap scara Pentru actionare se utilizeaza o clapeta. Conectarea dispozitivului se face cu borne fara suruburi. Modul de fixare al dispozitivului este realizat cu suruburi si clesti. Tensiunea sa nominala de functionare Ue este de 250 V c.a. la 50/60 Hz. Curentul sau nominal este 10AX. Acest dispozitiv este proiectat pentru a fi montat in interior. Dimensiunea produsului este (l) 73 mm x (H) 73 mm x (A) 37 mm. Adancimea de proiectata este de 24 mm. Este fabricat din termoplastic ABS-UV stabilizat. Culoarea produsului este alba cu finisaj lucios. Acesta atinge un grad de protectie IP20. Sedna Design Elements este o noua generatie de prize si intrerupatoare inspirate de designul vestimentar si de interior. Cu linii moderne care reflecta tendintele de astazi si o estetica rafinata, Sedna este mai mult decat o completare ulterioara. Sedna Design Elements merge chiar mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor. Produsul este in conformitate cu standardul IEC 60669-1. Are certificarea GOST-R pentru produse.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | Yes |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Measurements | |
| Built-in depth | 24 mm |
| Device depth | 37 mm |
| Min. depth of built-in installation box | - |
| Device width | 73 mm |
| Device height | 73 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | Yes |
| Type of lighting | LED not exchangeable |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | No |
| Assembly arrangement | Basic element with central cover plate |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 9003 |
| Colour | White |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | 10 AX |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Other | |
| Wiring system | Two-way switch |
| Impact strength | IK02 |
| Function lighting | Orientation |
| Connection | |
| Connection type | Other |
| Setting/control | |
| Method of operation | Other |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 288 cm3 |
| weight | 65 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481478115 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 735 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481478112 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 9,464 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481478119 |
