Descriere

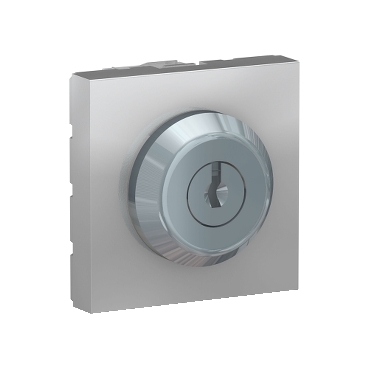

Noua Unica, Intrerupator revenire cheie 3 pozitii 16A 2m, aluminiu
Documente
Specificatii
| Material | |
| Surface protection | Decor |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | No |
| With lighting | No |
| Model | Other |
| Imprint | None |
| With signal lamp | No |
| Number of modules (module system) | 2 |
| Number of rockers | 0 |
| Assembly arrangement | Basic element |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP40 |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | Aluminium |
| Options | |
| IFTTT support available | No |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 74 mm |
| Min. depth of built-in installation box | 31 mm |
| Device width | 45 mm |
| Device height | 45 mm |
| Electrical | |
| Number of poles | 1 |
| Rated current | 16 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Engage (snap) |
| Mounting method | Flush-mounted |
| Connection | |
| Connection type | Other |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of revolving contacts | 0 |
| Setting/control | |
| Method of operation | Key |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | IK04 |
| Package 1 | |
| volume | 149,85 cm3 |
| weight | 54 g |
| length | 7,4 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489456214 |
| Package 2 | |
| volume | 1503,125 cm3 |
| weight | 321 g |
| length | 18,5 cm |
| width | 12,5 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606489456211 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 1,488 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 43606489456212 |
