Descriere

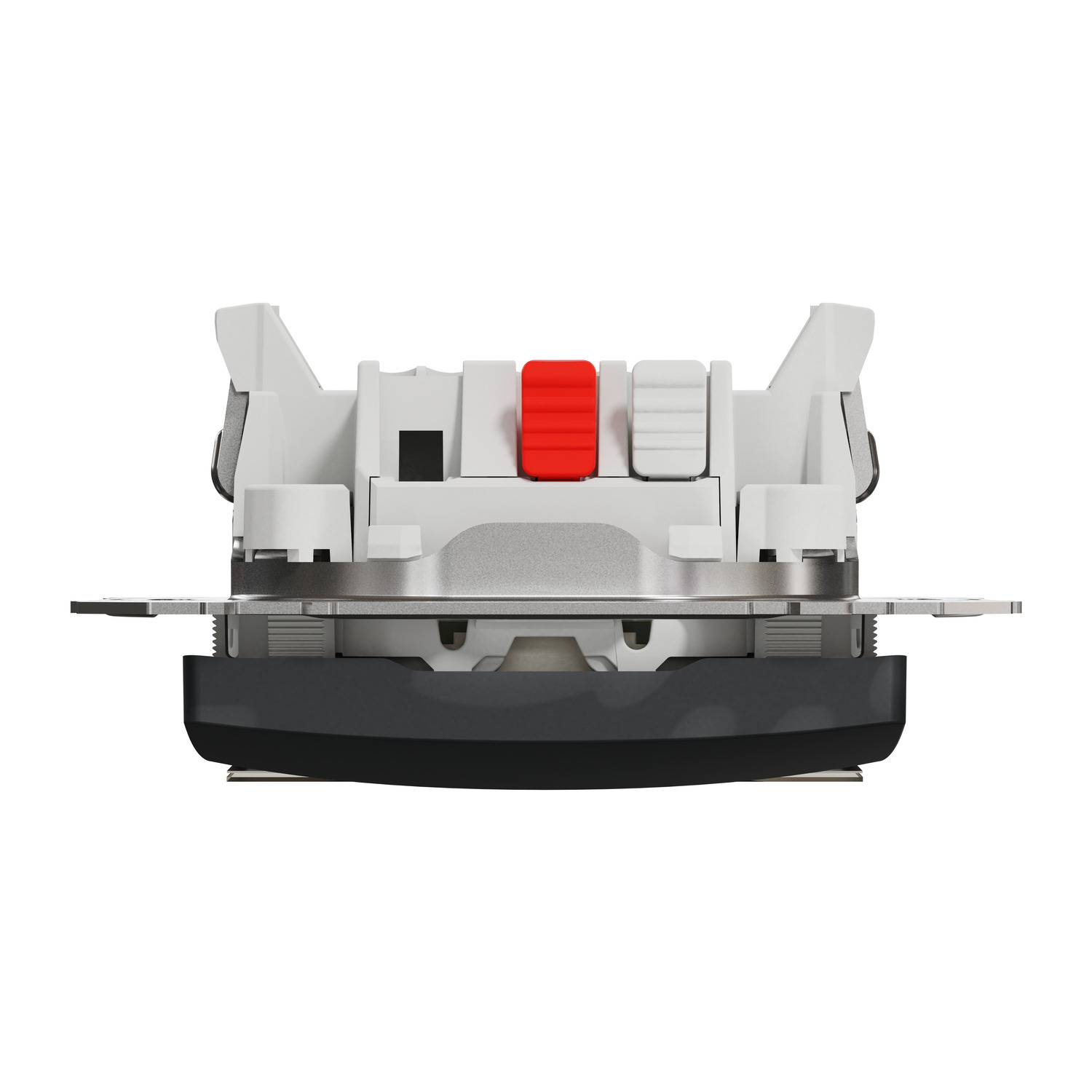

Sedna Design, Intrerupator cu revenire cu indicator luminos 12V 10A, eticheta, antracit
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | Yes |
| With lighting | Yes |
| Model | Single push button |
| Imprint | None |
| With signal lamp | No |
| Number of modules (module system) | - |
| Number of rockers | 1 |
| Assembly arrangement | Basic element with central cover plate |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 7021 |
| Transparent | No |
| Colour | Anthracite |
| Options | |
| IFTTT support available | No |
| Label space/information surface | Yes |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 37 mm |
| Min. depth of built-in installation box | 40 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Electrical | |
| Number of poles | 1 |
| Rated current | 10 A |
| Nominal voltage | 12 V |
| Mounting/installation | |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Connection | |
| Connection type | Other |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of revolving contacts | 0 |
| Setting/control | |
| Method of operation | Rocker |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | IK02 |
| Package 1 | |
| volume | 288 cm3 |
| weight | 61 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481480118 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 697 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481480115 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,411 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481480112 |
| Package 4 | |
| weight | 45,644 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
