Descriere

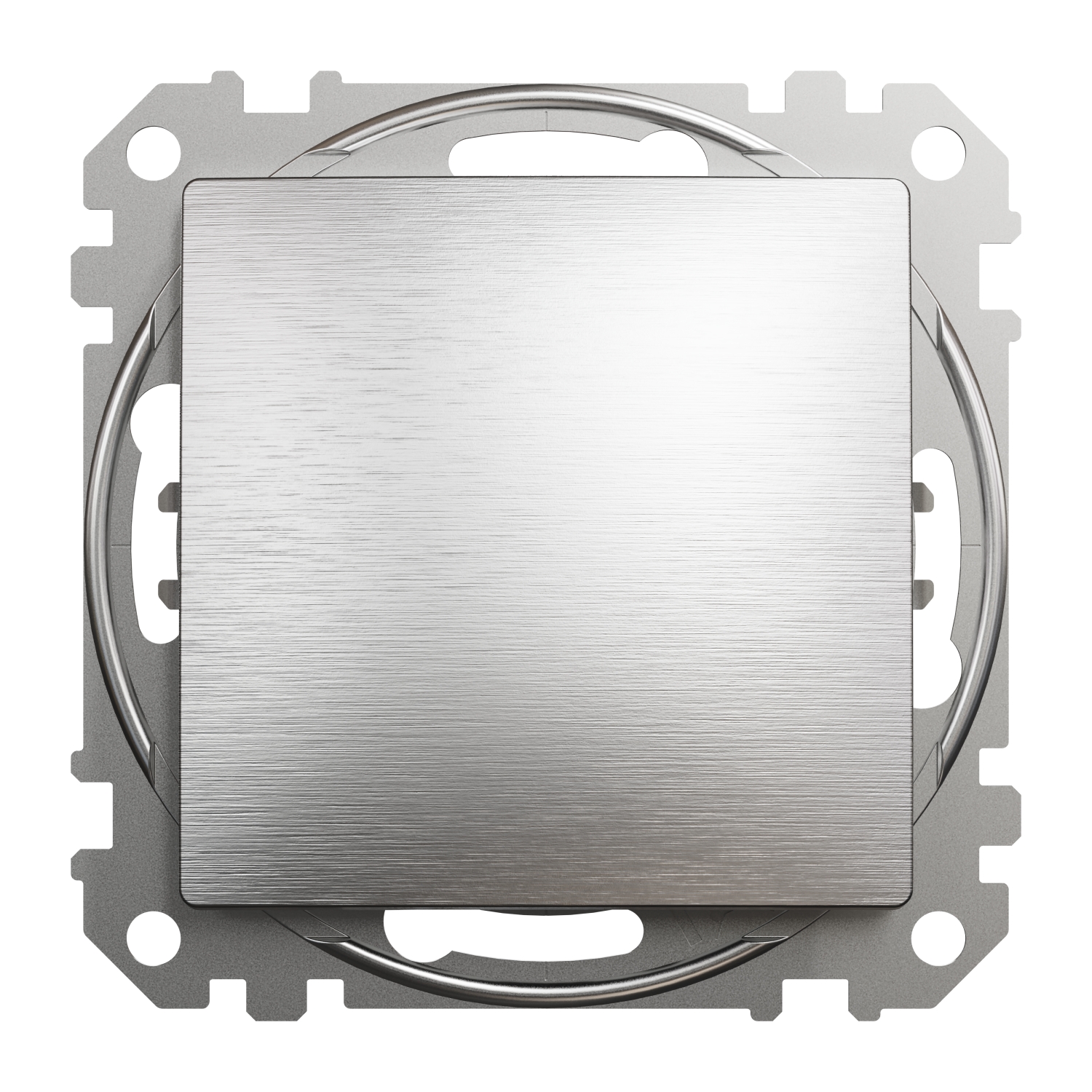

Sedna Elements, Intrerupator cap scara 10AX, aluminiu patinat
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Decor |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | Yes |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Measurements | |
| Built-in depth | 24 mm |
| Device depth | 37 mm |
| Min. depth of built-in installation box | - |
| Device width | 73 mm |
| Device height | 73 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | No |
| Assembly arrangement | Basic element with central cover plate |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | - |
| Colour | Aluminium |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | 10 AX |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Other | |
| Wiring system | Two-way switch |
| Impact strength | IK02 |
| Function lighting | - |
| Connection | |
| Connection type | Other |
| Setting/control | |
| Method of operation | Other |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 288 cm3 |
| weight | 61 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481480521 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 701 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481480528 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 9,073 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481480525 |
| Package 4 | |
| weight | 48,292 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
