Descriere

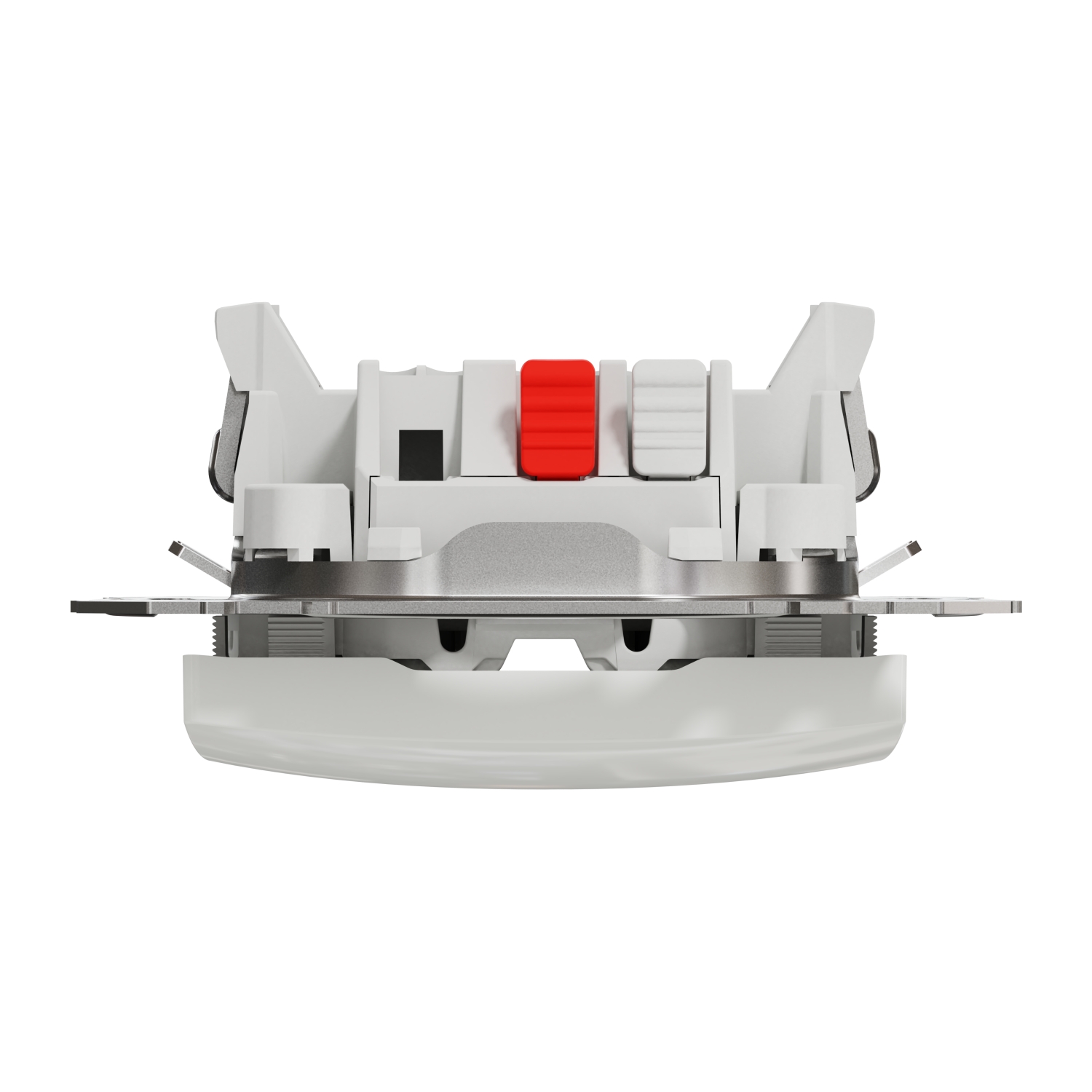

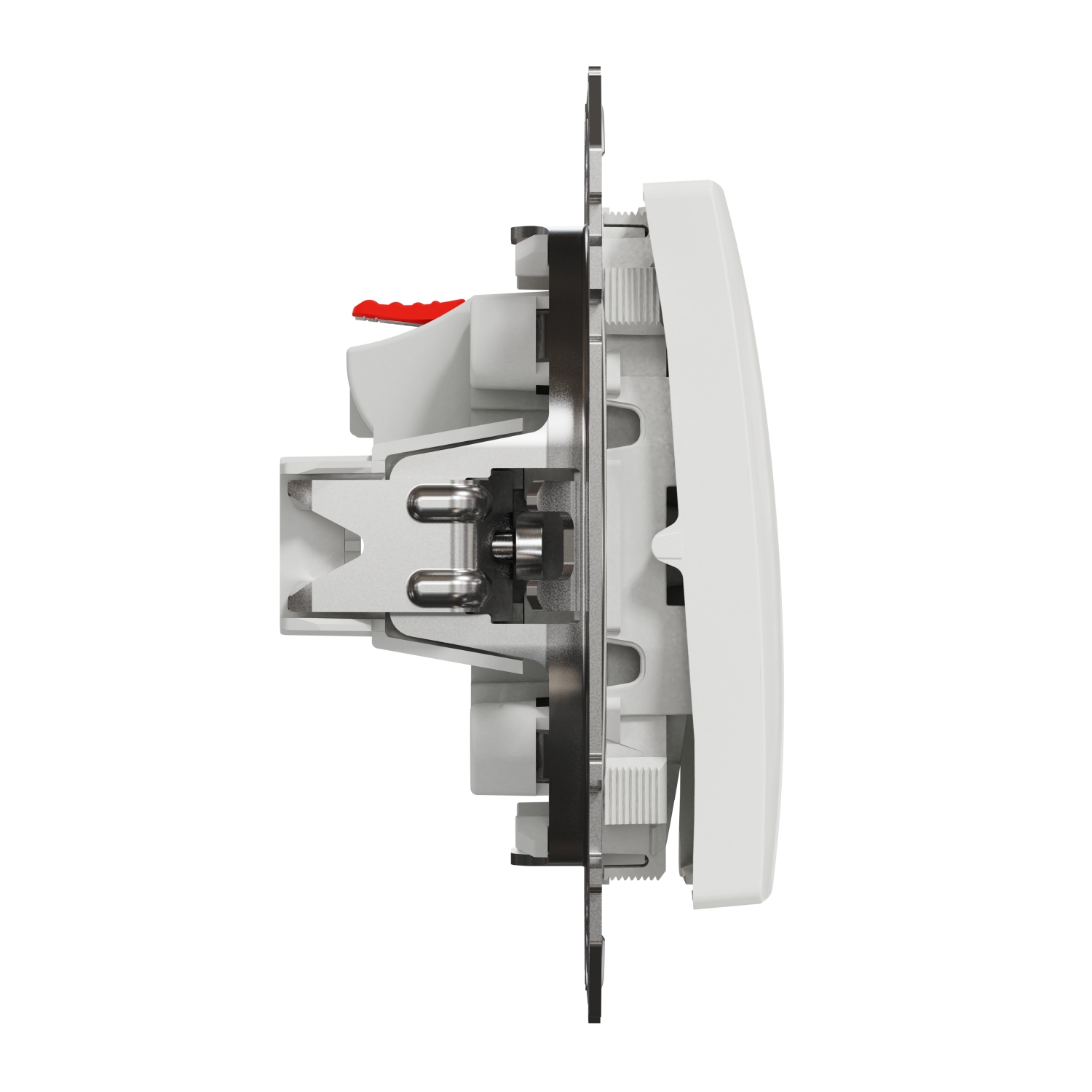

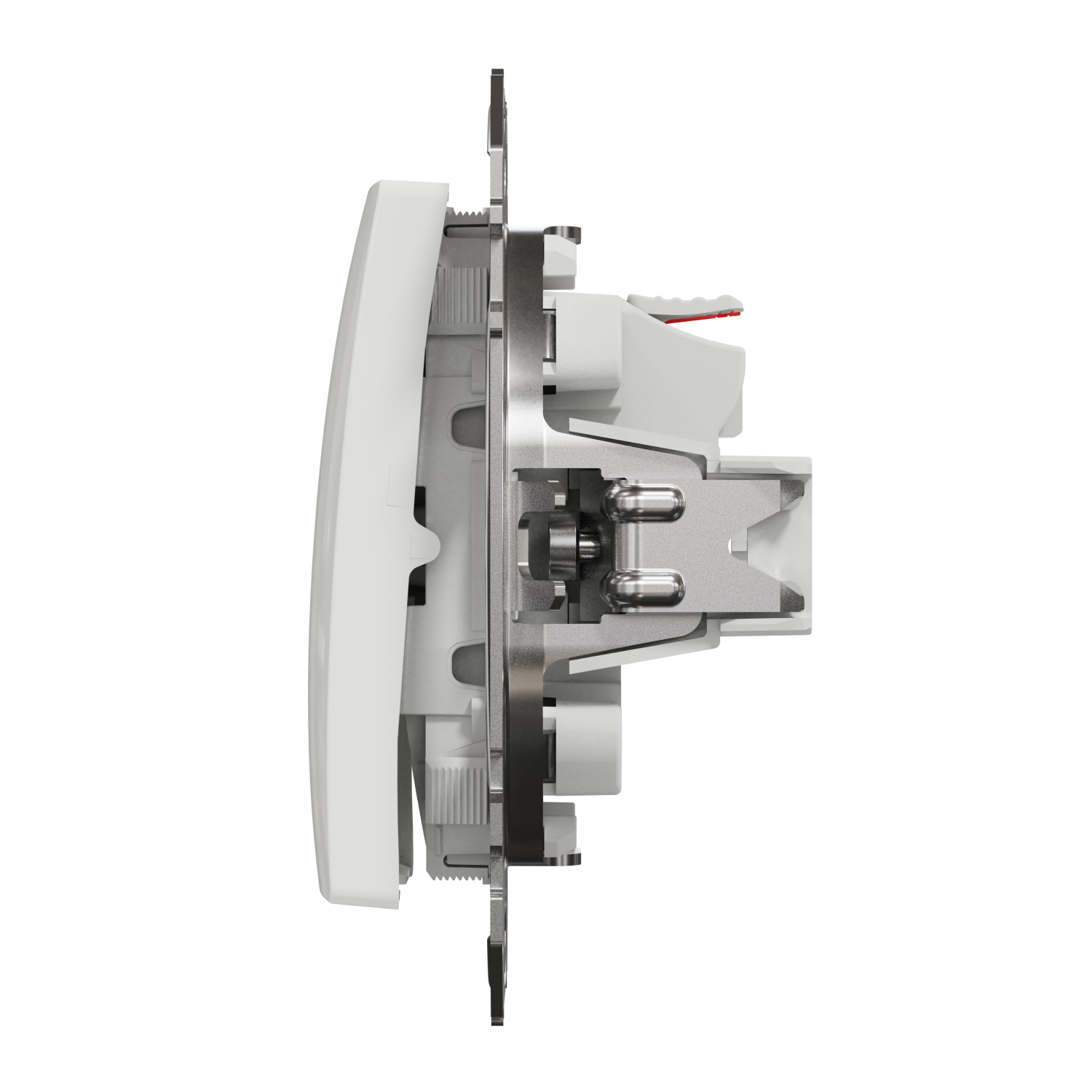

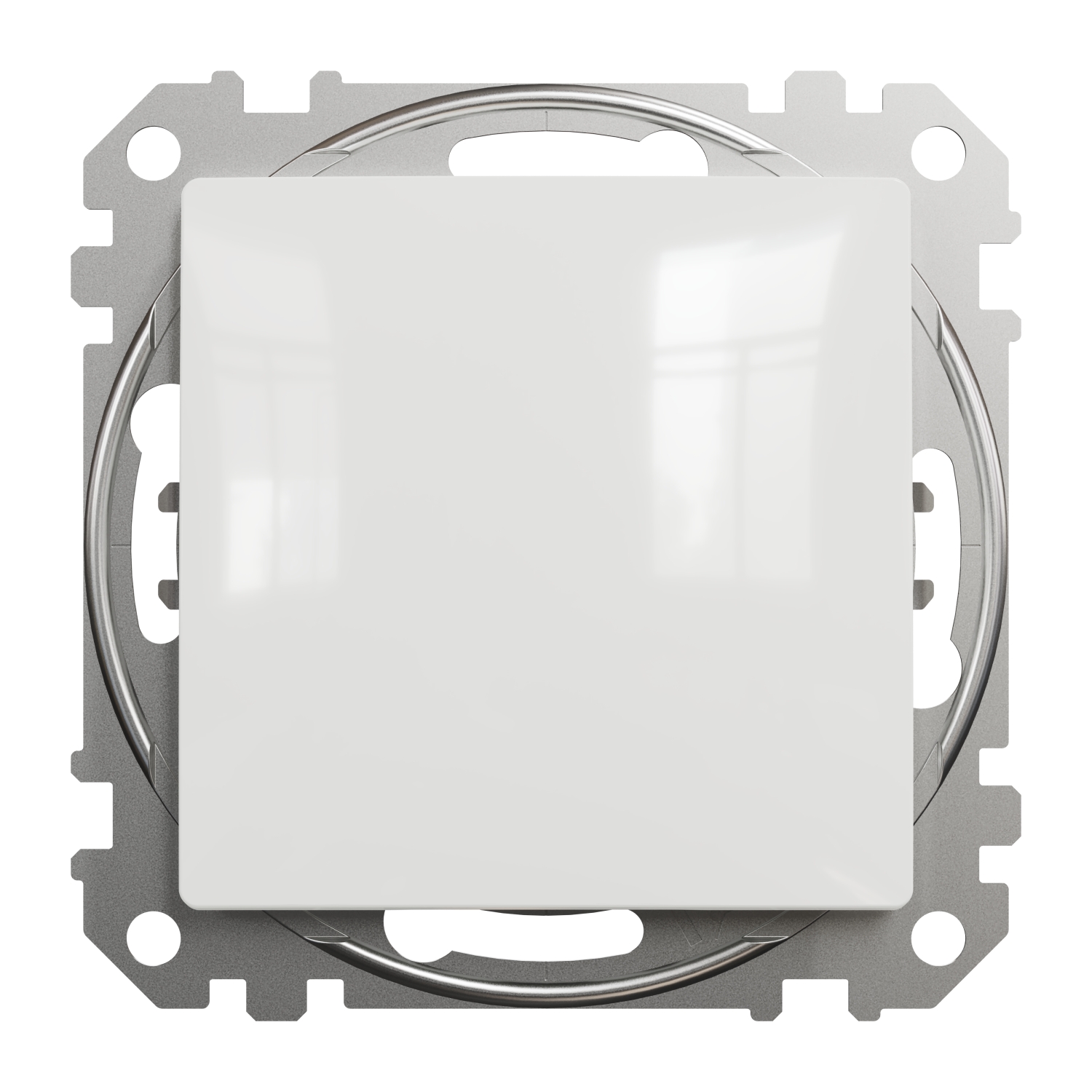

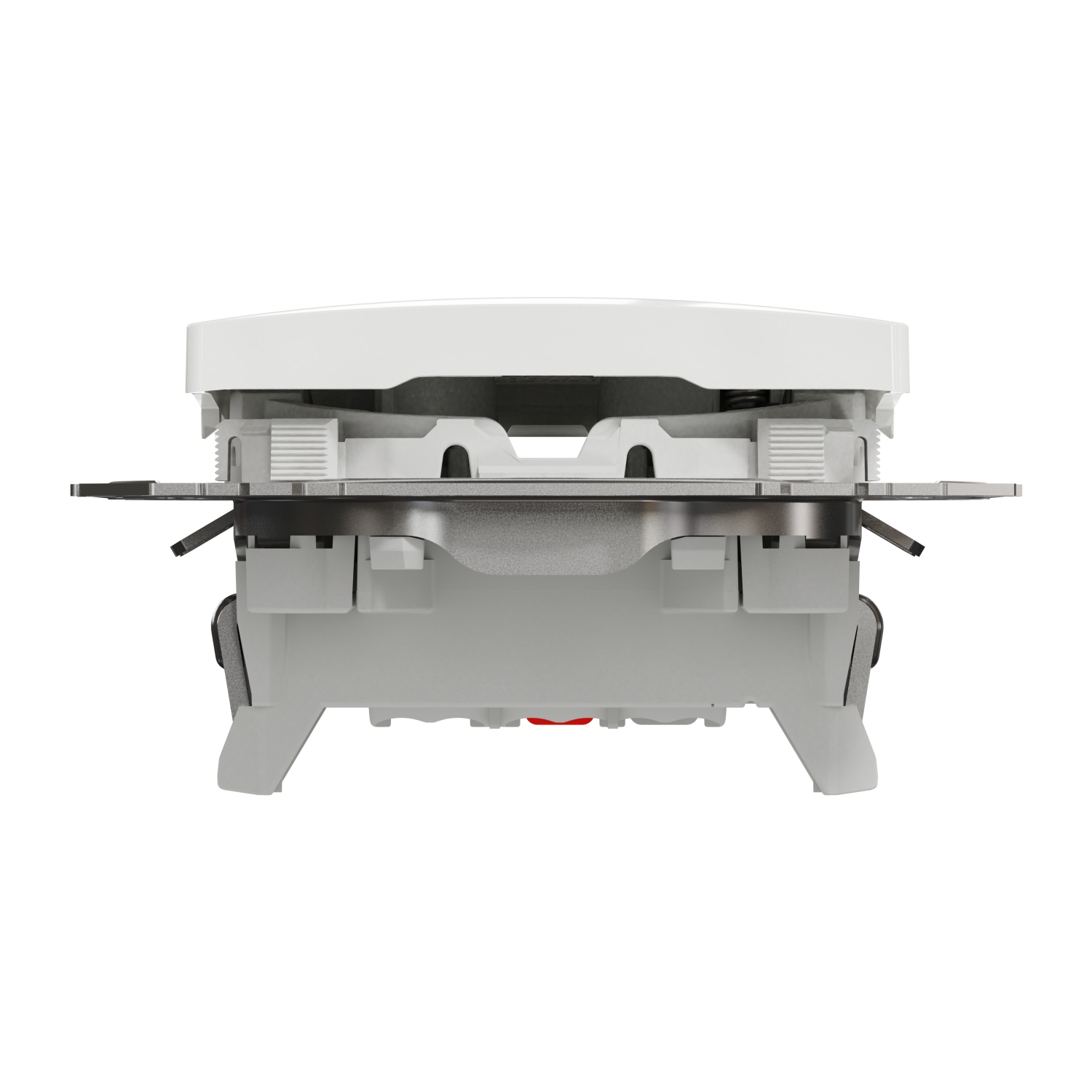

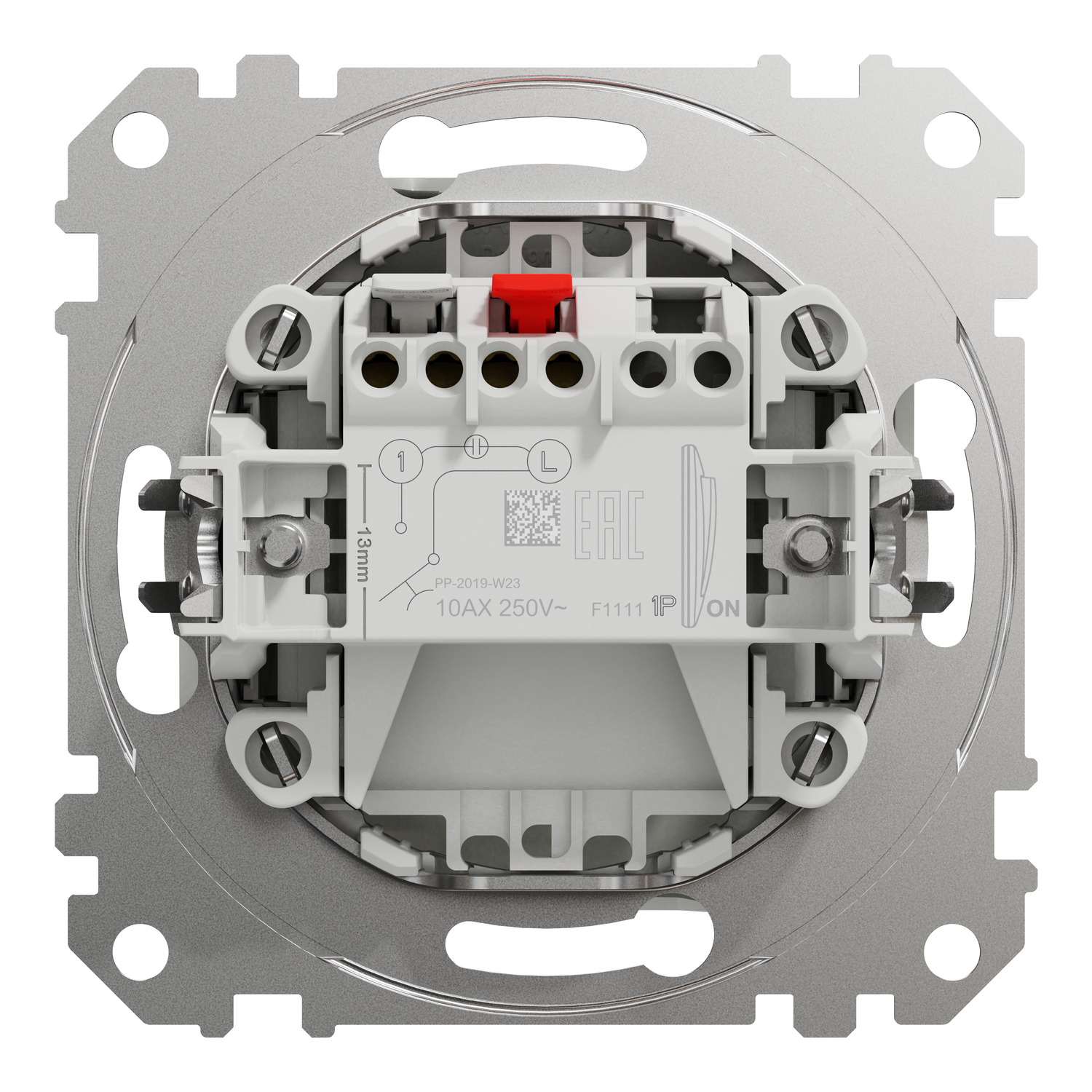

Acesta este un mecanism cu buton de actionare Schneider Electric Sedna Elements cu rama de fixare. Acesta este un buton cu 1 directie. Conectarea dispozitivului se face cu borne fara suruburi. Modul de fixare al dispozitivului este realizat cu suruburi si clesti. Tensiunea sa operationala nominala UE este de 250 V c.a. la 50/60 Hz. Curentul nominal este 10A. Acest dispozitiv este proiectat pentru a fi montat in interior. Dimensiunea produsului este (W) 73mm x (H) 73mm x (D) 37mm. Adancimea de proiectie este de 24 mm. Este fabricat din material termoplastic ABS-UV stabilizat. Culoarea produsului este alba cu finisaj lucios de suprafata. Acesta atinge un grad de protectie IP20. Sedna Design Elements este o noua generatie de comutatoare electrice inspirate de moda bspandnbspinterior design. Cu linii moderne care reflecta tendintele de astazi si o estetica rafinata, nbspSedna este mai mult decat un gand ulterior. Sedna Design Elements merge chiar mai departe in ceea ce priveste ergonomia, usurinta in instalare si utilizare, fiabilitatea si calitatea finisajelor. Produsul este in conformitate cu standardul IEC 60669-1. Are certificarea GOST-R a produsului.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | No |
| With lighting | No |
| Model | Single push button |
| Imprint | None |
| With signal lamp | No |
| Number of modules (module system) | - |
| Number of rockers | 1 |
| Assembly arrangement | Basic element with central cover plate |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Options | |
| IFTTT support available | No |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 37 mm |
| Min. depth of built-in installation box | 40 mm |
| Device width | 73 mm |
| Device height | 73 mm |
| Electrical | |
| Number of poles | 1 |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Connection | |
| Connection type | Other |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of revolving contacts | 0 |
| Setting/control | |
| Method of operation | Rocker |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | IK02 |
| Package 1 | |
| volume | 288 cm3 |
| weight | 59 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481478160 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 607 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481478167 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,68 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481478164 |
| Package 4 | |
| weight | 43,712 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
