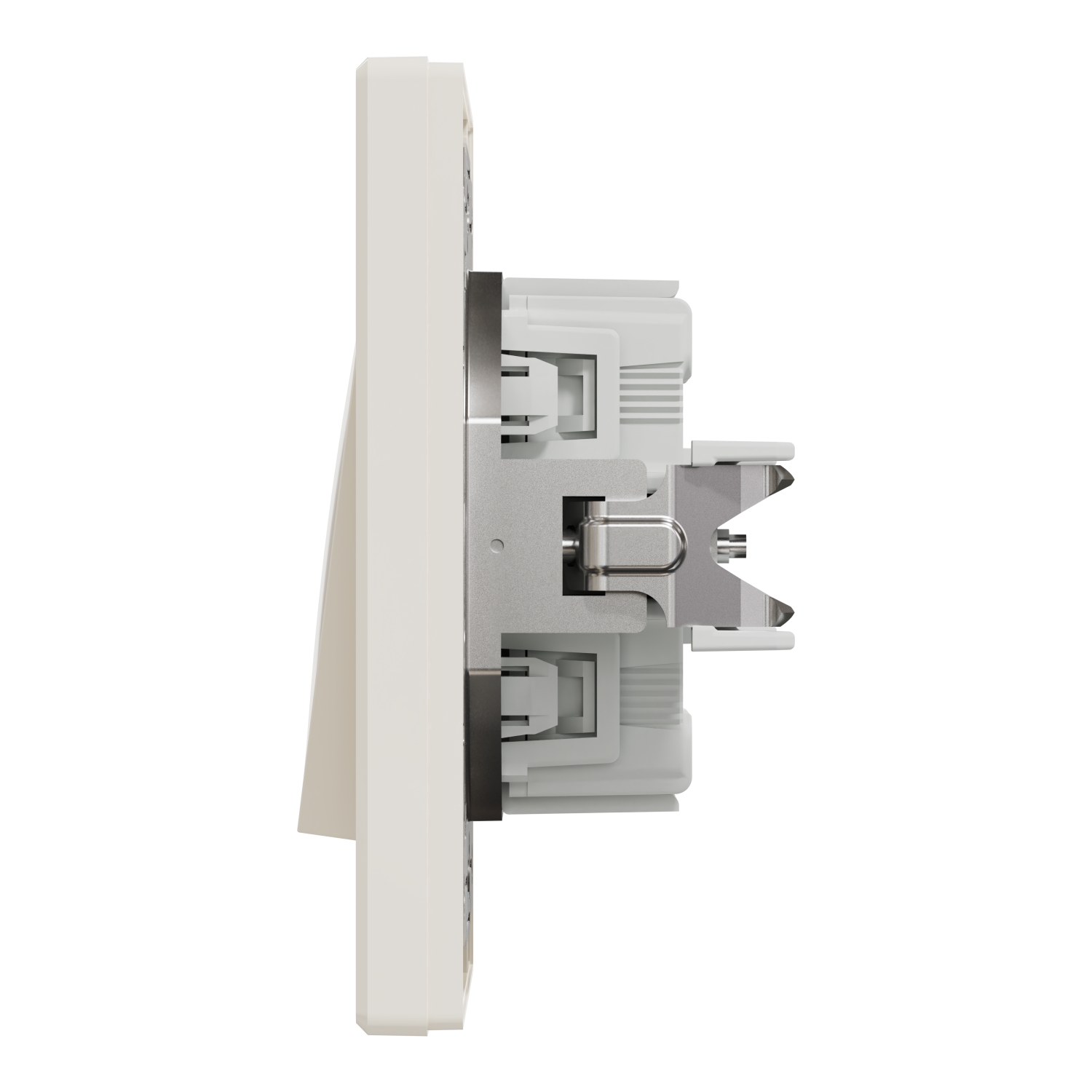

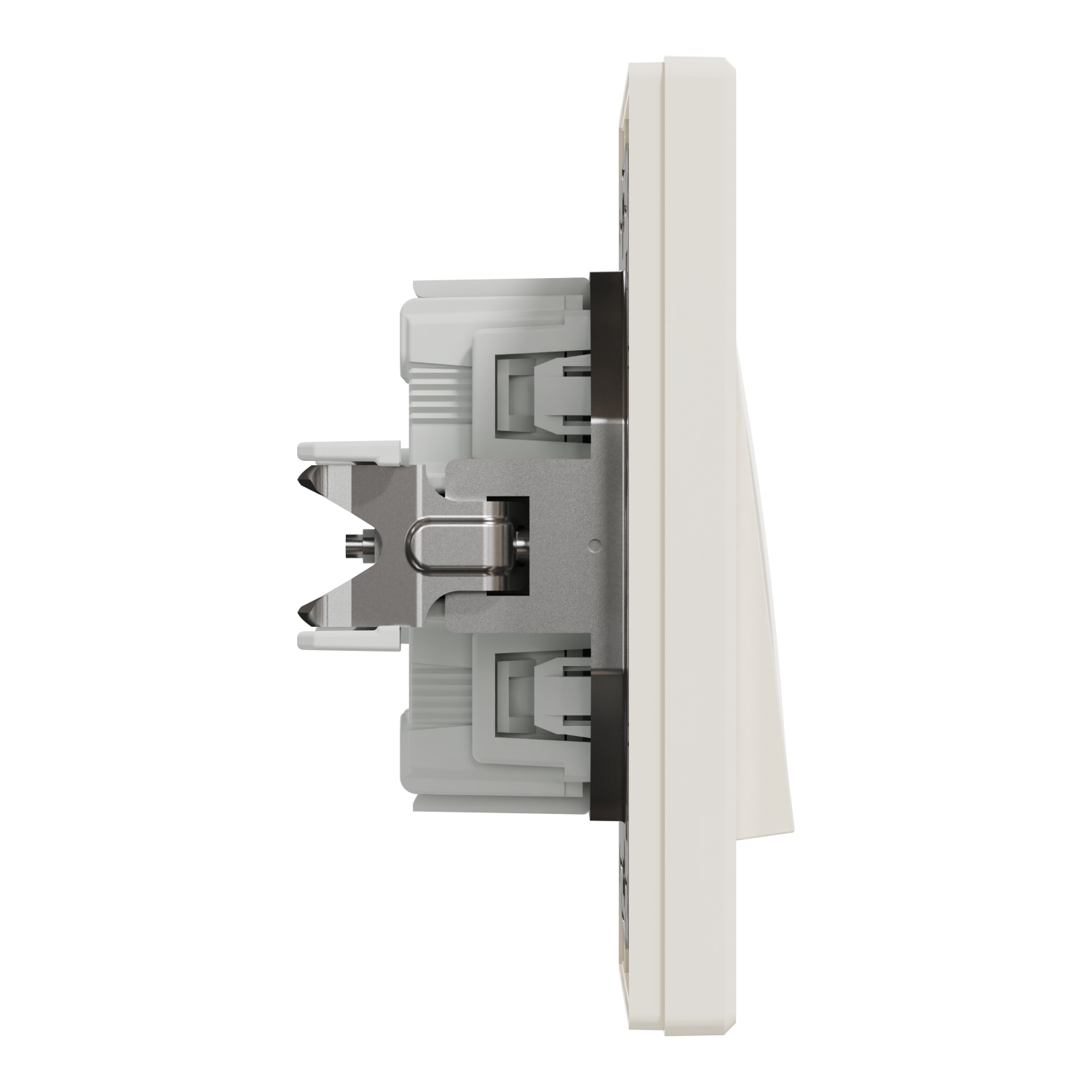

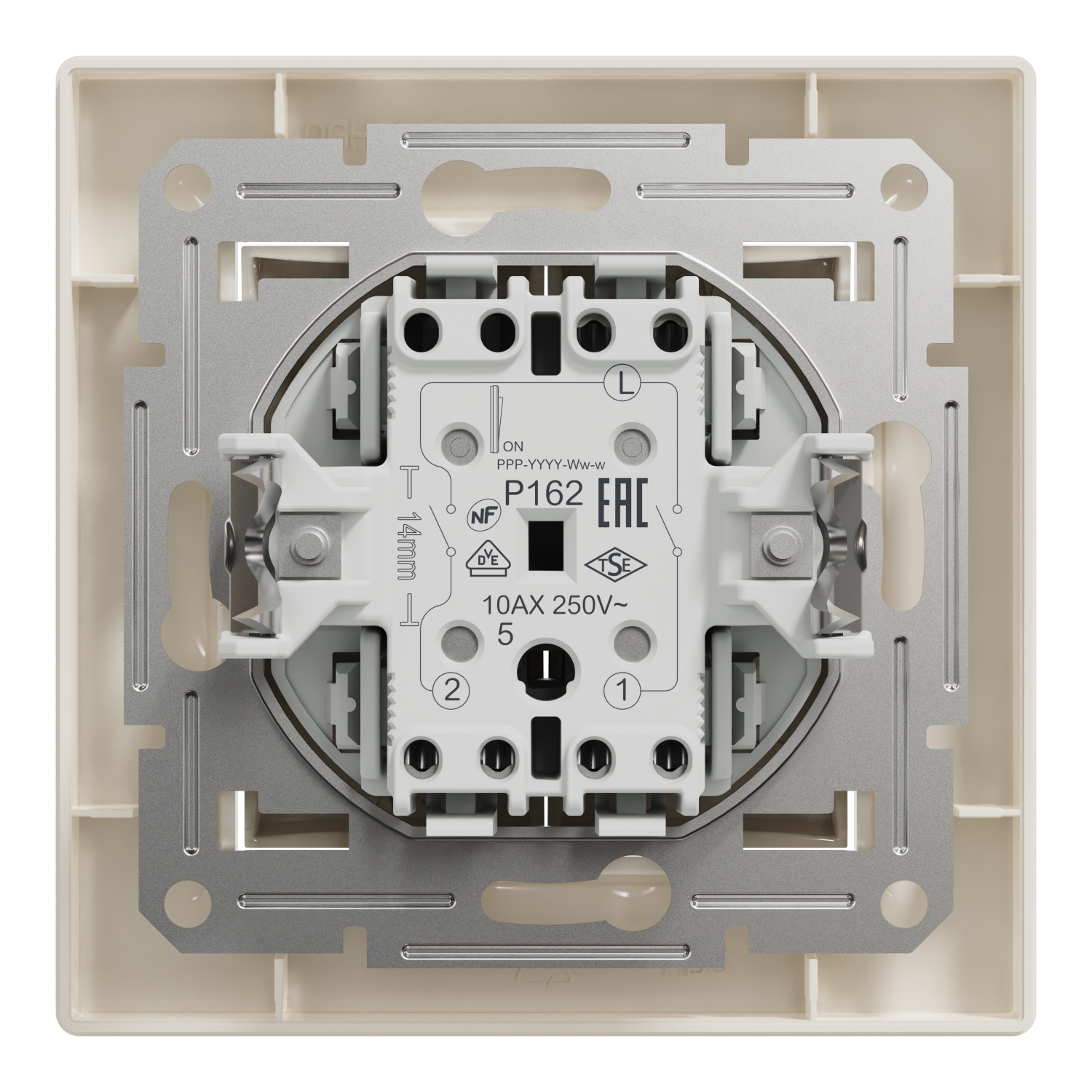

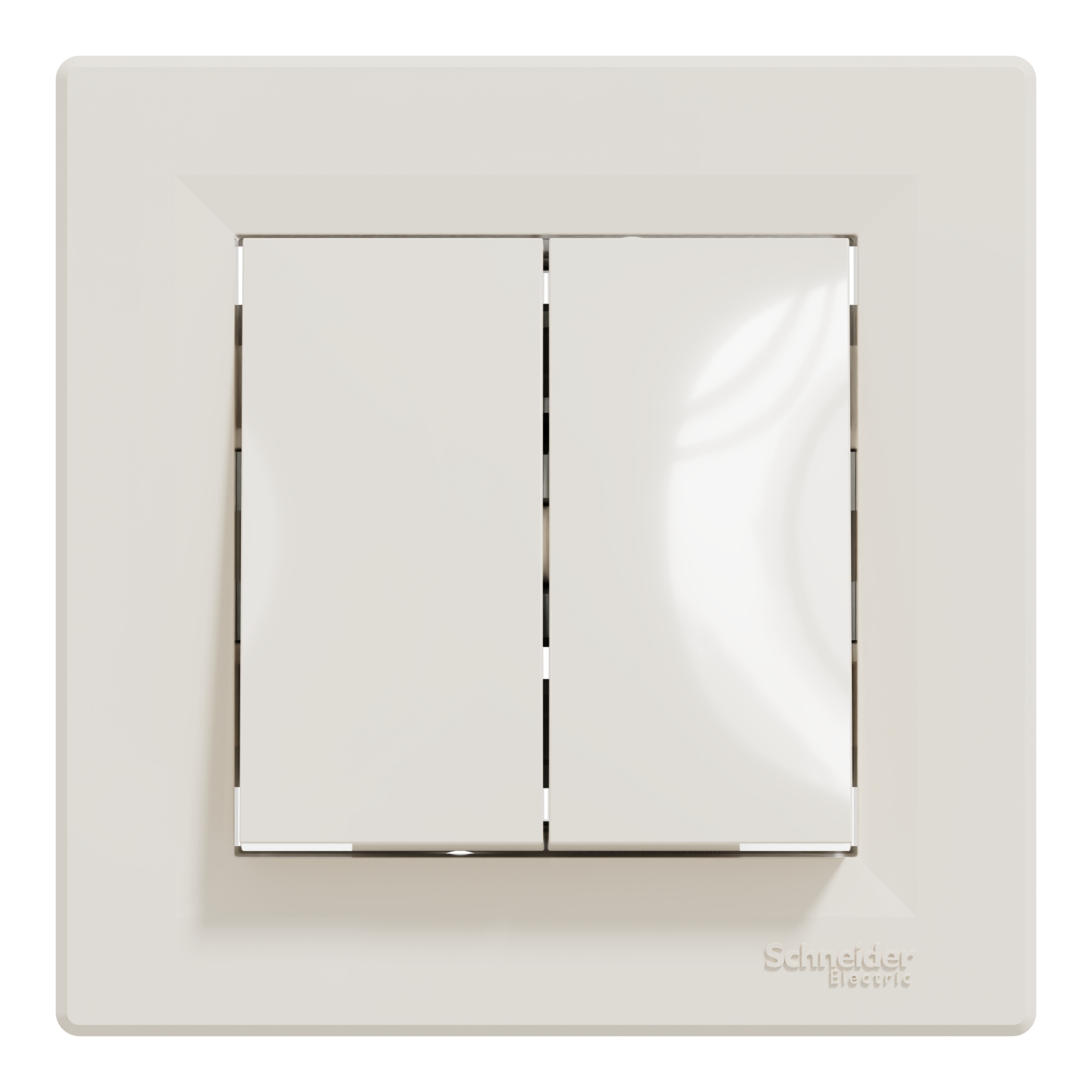

Asfora, Intrerupator dublu, fara surub, crem
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | No |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Measurements | |
| Built-in depth | 28 mm |
| Device depth | 43 mm |
| Min. depth of built-in installation box | 40 mm |
| Device width | 83 mm |
| Device height | 83 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | - |
| Number of rockers | 2 |
| Label space/information surface | No |
| Assembly arrangement | Basic element with complete housing |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 1013 |
| Colour | Other |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | - |
| Electrical | |
| Switching current for fluorescent lamps | 10 AX |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Other | |
| Wiring system | Series switch |
| Impact strength | - |
| Function lighting | - |
| Connection | |
| Connection type | Other |
| Setting/control | |
| Method of operation | Rocker/button |
| Communication | |
| Compatible with Apple HomeKit | - |
| Compatible with Google Assistant | - |
| Monitoring contact | No |
| Compatible with Amazon Alexa | - |
| Package 1 | |
| volume | 325,125 cm3 |
| weight | 73,3 g |
| length | 8,5 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480525018 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 799 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480525015 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 10,132 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 33606480525019 |
| Package 4 | |
| weight | 174,112 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 1920 |
| qmin | 1920 |
| um | PF |
