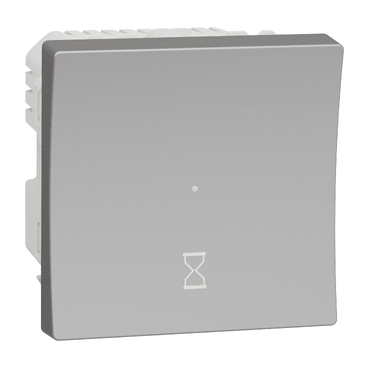

Noua Unica, Intrerupator temporizare 10A aluminiu
Documente
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | No |
| Material quality | Thermoplastic |
| Model/type | |
| Model | Electronic |
| Number of modules (module system) | 2 |
| With semiconductor output | No |
| Assembly arrangement | Basic element with central cover plate |
| Protection | |
| Suitable for degree of protection (IP) | IP21 |
| Colour | |
| RAL-number (similar) | - |
| Transparent | No |
| Colour | Aluminium |
| Options | |
| IFTTT support available | No |
| Measurements | |
| Min. depth of built-in installation box | 46 mm |
| Electrical | |
| Rated current | 10 A |
| Nominal voltage | 230 V |
| Mounting/installation | |
| Mounting method | Flush-mounted |
| Setting/control | |
| Time setting | 5 min |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 83,025 cm3 |
| weight | 88 g |
| length | 4,5 cm |
| width | 4,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485445854 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 552 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 43606485445852 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 25,664 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 128 |
| qmin | 128 |
| um | PF |
