Descriere

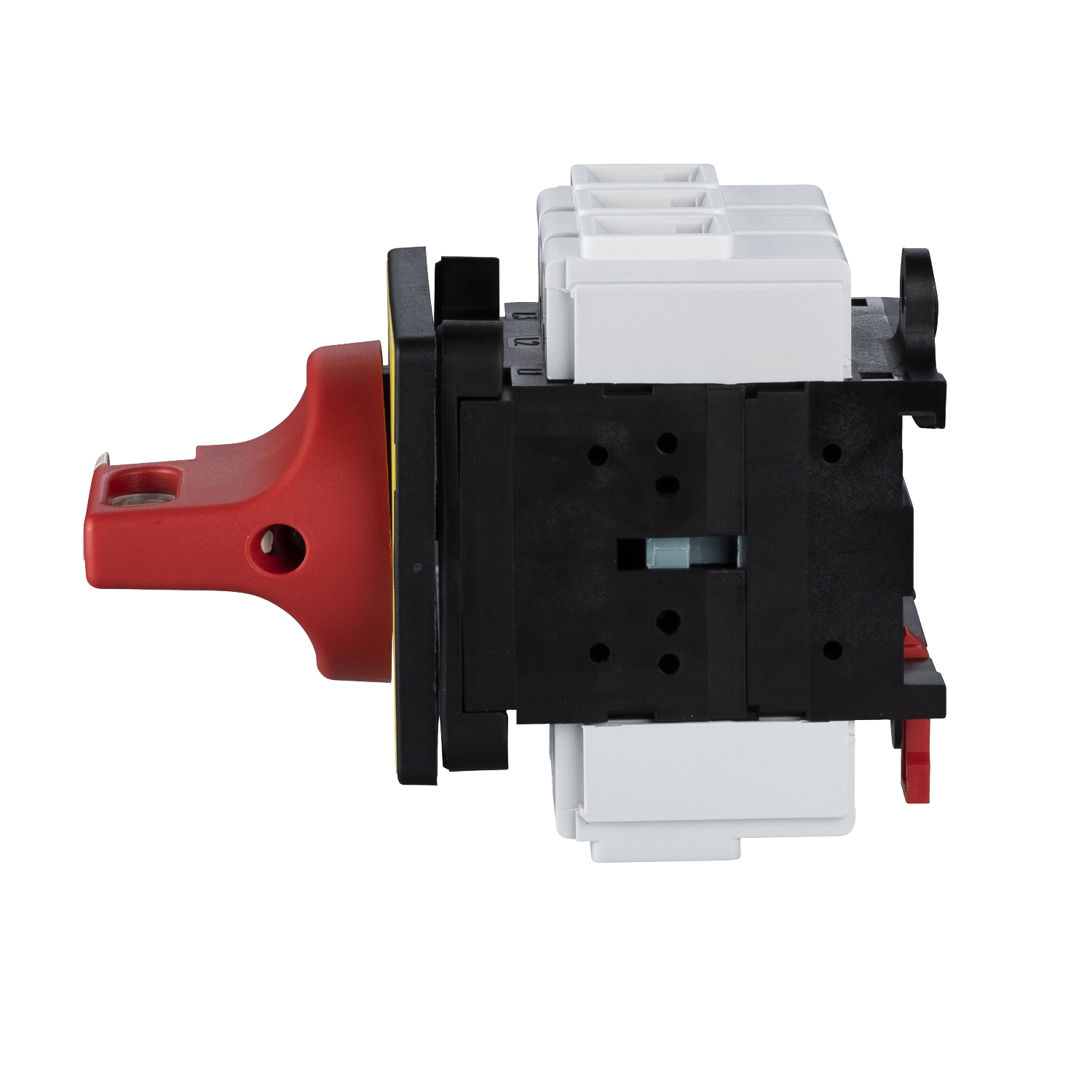

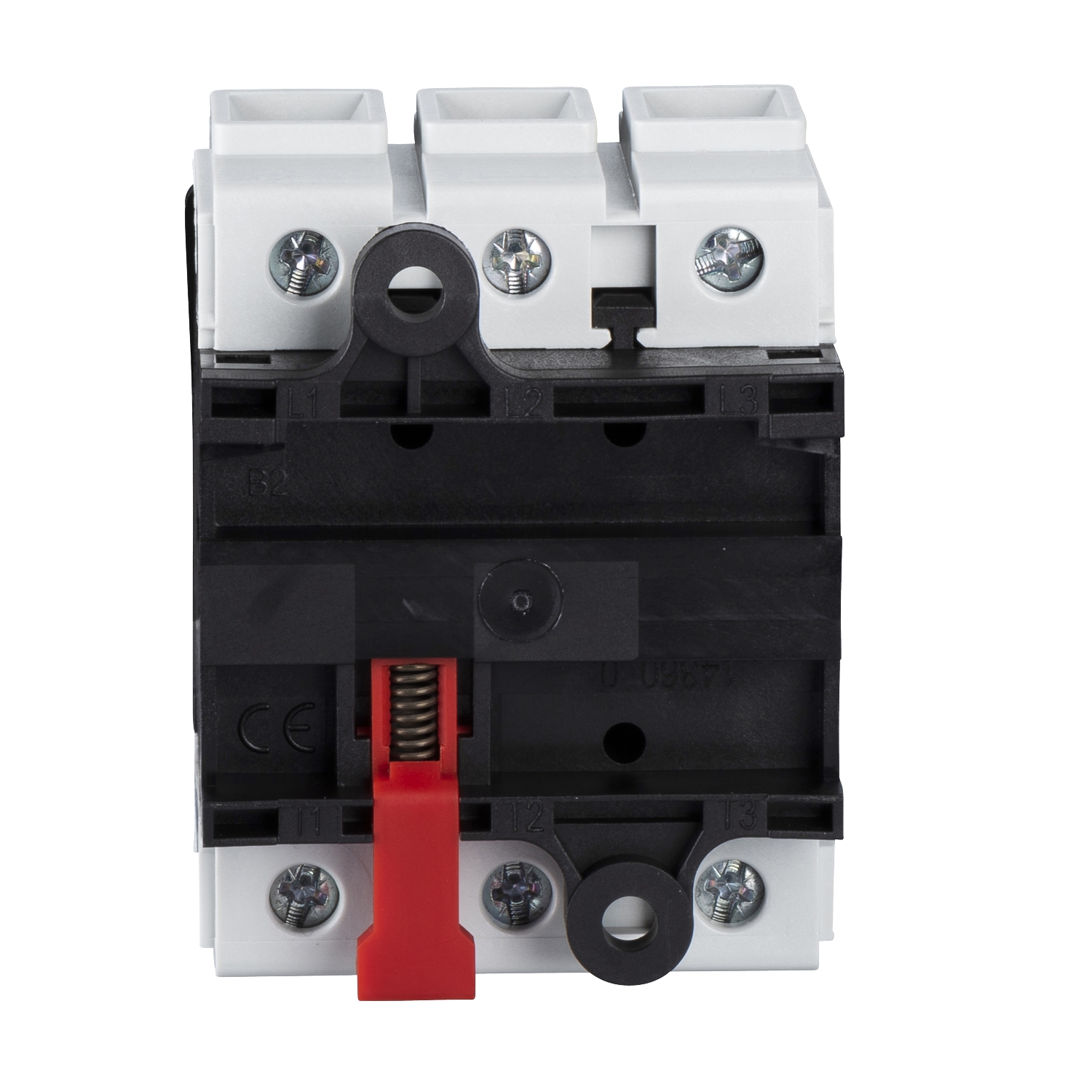

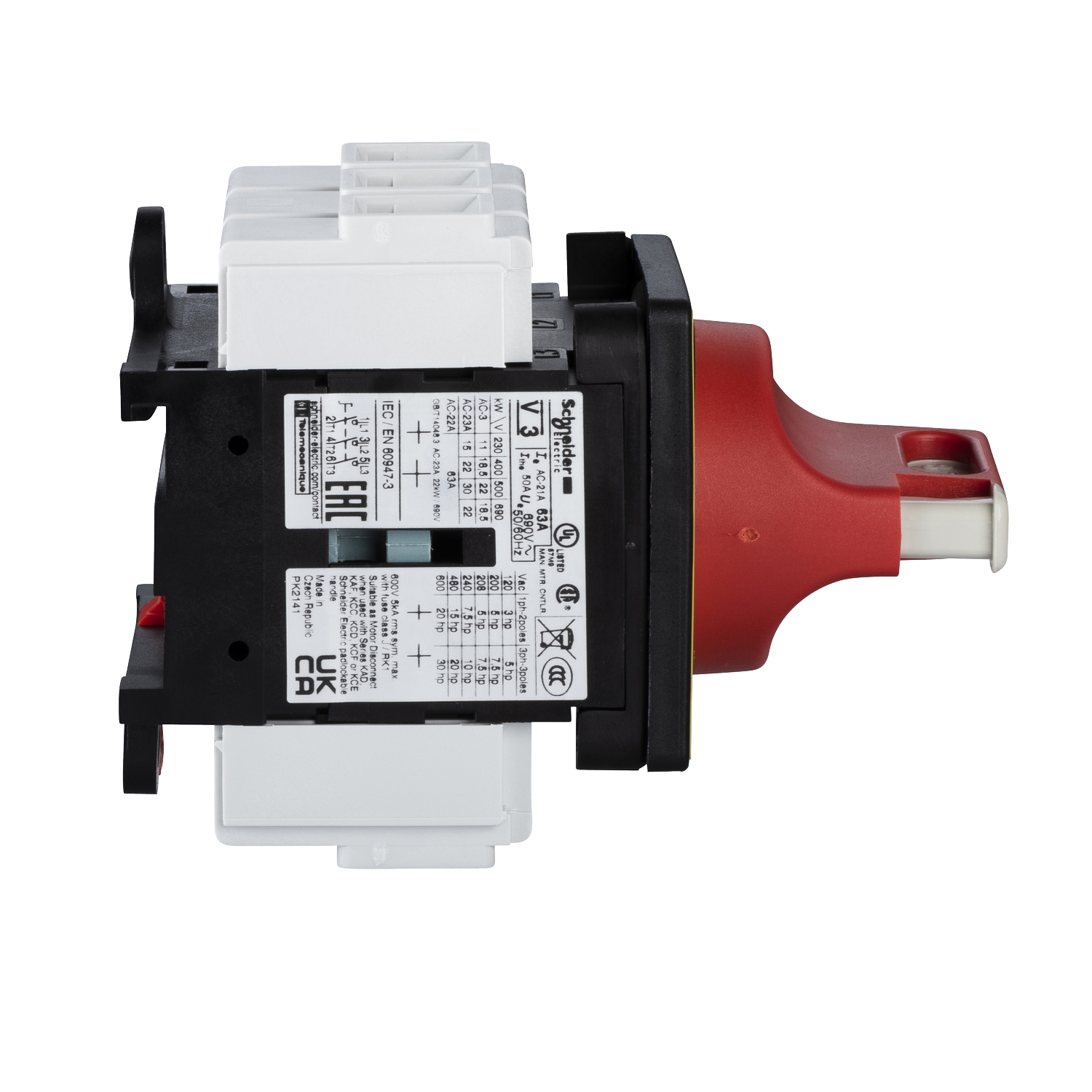

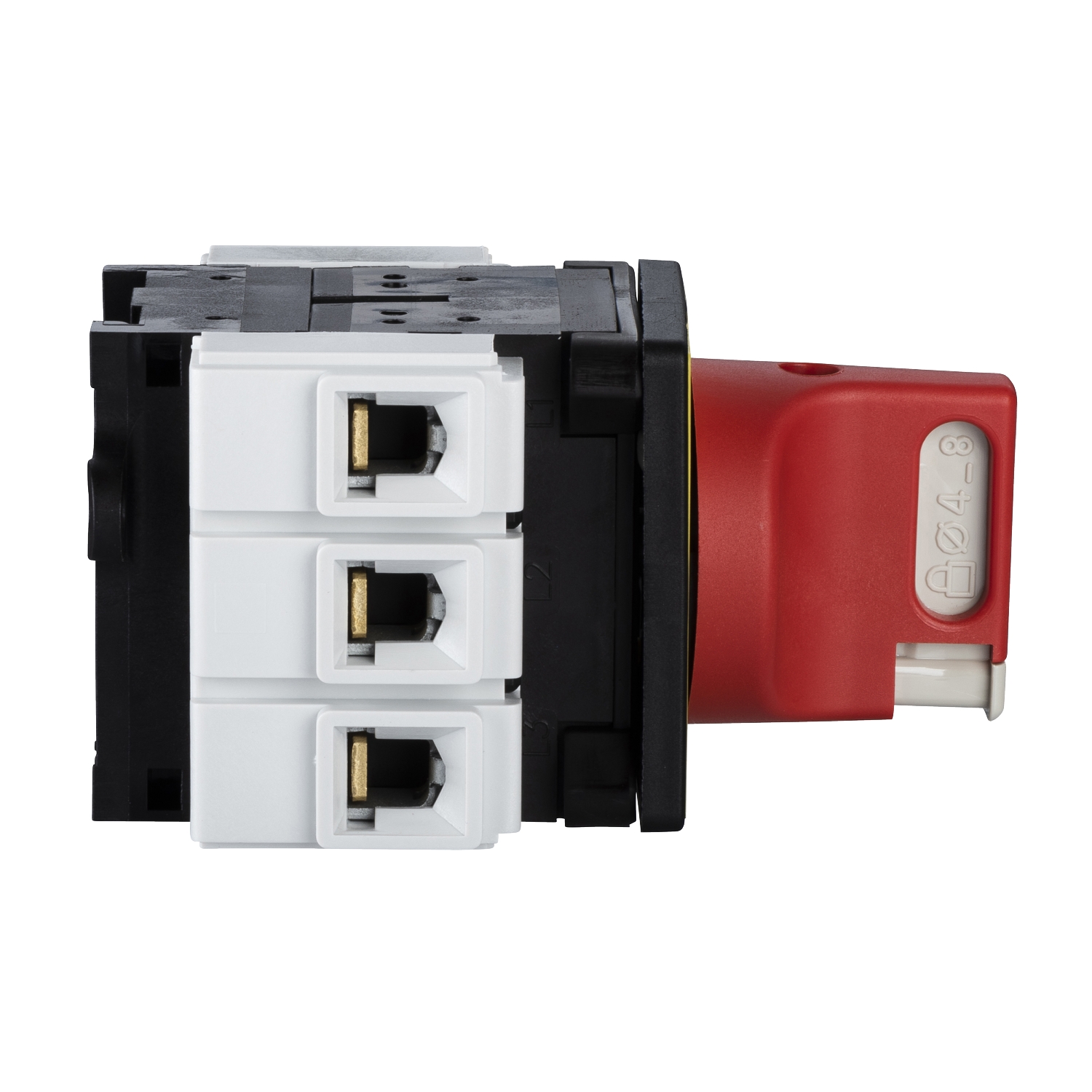

Separator de sarcina TeSys Vario pentru montare pe usa, 3 poli, 63 A/690 V, pentru aplicatii de comutare a motoarelor de pana la 22 kW/400 V AC-23. Unitate completa compusa dintr-un corp de comutator V3, un maner rosu cu placa frontala galbena de 60x60 mm KCF2PZ. Destinat pentru utilizarea ca intrerupator principal si de oprire de urgenta. Maner cu posibilitate de fixare cu lacat, pentru 3 lacate (se comanda separat). Maner cu fixare in 4 suruburi pe usa, asigurand IP65 la montare. Certificat conform mai multor standarde (IEC, UL, CSA, CCC, EAC, Marine), conform cu cerintele de mediu (RoHS/REACh).
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Model/type | |
| Version as emergency stop installation | Yes |
| Type of control element | Turn button |
| Version as main switch | Yes |
| Version as maintenance-/service switch | No |
| Version as safety switch | No |
| Motor drive integrated | No |
| Number of switches | 1 |
| Electrical | |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Rated permanent current Iu | 63 A |
| Conditioned rated short-circuit current Iq | 10 kA |
| Max. rated operation voltage Ue AC | 690 V |
| Number of poles | 3 |
| Rated short-time withstand current lcw | 0.756 kA |
| Rated operating voltage | 690 V |
| Rated operation power at AC-23, 400 V | 22 kW |
| Rated permanent current at AC-21, 400 V | 63 A |
| Switching power at 400 V | 37 kW |
| Rated permanent current at AC-23, 400 V | 41.5 A |
| Options | |
| Version as reversing switch | No |
| Voltage release optional | No |
| Interlockable | Yes |
| Motor drive optional | No |
| Mounting/installation | |
| Suitable for front mounting centre | No |
| Suitable for front mounting 4-hole | Yes |
| Suitable for intermediate mounting | No |
| Suitable for floor mounting | No |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Protection | |
| Degree of protection (IP), front side | IP65 |
| Degree of protection (NEMA) | - |
| Colour | |
| Colour control element | Red |
| Application | |
| Suitable for distribution board installation | Yes |
| Package 1 | |
| volume | 782,34 cm3 |
| weight | 349 g |
| length | 11,8 cm |
| width | 8,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110165999 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,5 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43389110165997 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 81,06 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 192 |
| qmin | 192 |
| um | PF |
