Descriere

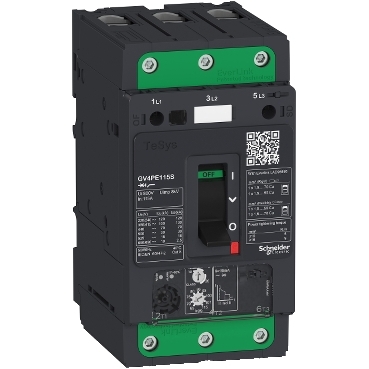

Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 100kA, thermal magnetic, Everlink terminals
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Measurements | |
| Width | 81 mm |
| Depth | 116 mm |
| Height | 155 mm |
| Electrical | |
| Rated operation power at AC-3, 400 V | 55 kW |
| Overload release current setting | 65 A |
| Rated permanent current Iu | 115 A |
| Rated operating voltage | 690 V |
| Rated operation power at AC-3, 230 V | 30 kW |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 1955 A |
| Model/type | |
| Type of control element | Rocker lever |
| With integrated auxiliary switch | No |
| With thermal overload protection | Yes |
| Other | |
| Switch off technique | Electronic |
| Device construction | Complete device in housing |
| Options | |
| Phase failure sensitive | Yes |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 4114 cm3 |
| weight | 1,66 kg |
| length | 22 cm |
| width | 17 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481310620 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 9 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 5 |
| qmin | 5 |
| um | CT |
| gtin | 43606481310628 |
