Descriere

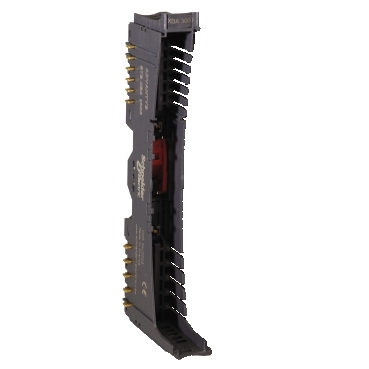

Modicon Stb - Baza Montaj - Pentru Modul I/O - 28.1 Mm
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Electrical | |
| Output voltage AC 50 Hz | - |
| Type of voltage (input voltage) | AC/DC |
| Max. output current AC 50 Hz | - |
| Max. output current AC 60 Hz | - |
| Type of output voltage | AC/DC |
| Max. output current DC | - |
| With integrated power supply | No |
| Input voltage AC 50 Hz | 115 V |
| Input voltage AC 60 Hz | 115 V |
| Max. input current AC 60 Hz | - |
| Max. input current DC | - |
| Input voltage DC | 24 V |
| Output voltage AC 60 Hz | - |
| Output voltage DC | - |
| Max. input current AC 50 Hz | - |
| Options | |
| System accessory | Yes |
| Rack-assembly possible | Yes |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Mounting/installation | |
| Front built-in possible | No |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | No |
| Connection | |
| Number of slots | 1 |
| Measurements | |
| Height | 125 mm |
| Width | 28.1 mm |
| Depth | 132 mm |
| Model/type | |
| With pluggable modules, digital I/O | Yes |
| With pluggable modules, analogue I/O | No |
| With pluggable modules, central modules | No |
| With pluggable modules, others | Yes |
| With pluggable modules, communication modules | No |
| With pluggable modules, function and technology modules | Yes |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 219,912 cm3 |
| weight | 62 g |
| length | 13,2 cm |
| width | 4,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3595863757675 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,115 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 59 |
| qmin | 59 |
| um | CT |
| gtin | 43595863757673 |
