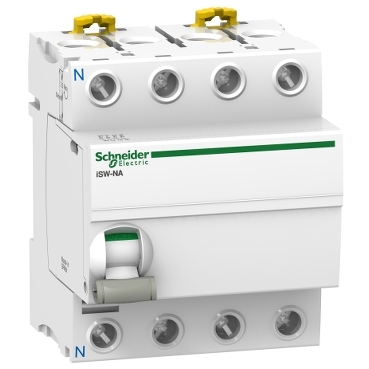

ISW-NA separator sarcina 3P-N 63A 415Vca

Cod produs: A9S70763

Producator: Schneider Electric

Set: 1 bucati

3606480098956

Descriere

Acti9 iSW-NA este un separator de sarcina modular si fiabil. este un 4P, curentul nominal este de 63 A, iar tensiunea de functionare este de 400 V c.a. la 415 V c.a.. Rezistenta electrica creste cu pana la 10000 de cicluri, iar rezistenta mecanica creste cu 20000 de cicluri. Temperatura de functionare este de la -35°C la +70°C. Temperatura de depozitare este de -40°C la +85°C. Gradul de protectie este IP20 si IP40 instalat in cofret. Se monteaza pe sina DIN. Latimea in module de 9 mm este de 8. Dimensiunile sunt (L) 72mm x (I) 85mm x (a) 74mm. Acest separator de sarcina este utilizat pentru control si izolare. Acest produs respecta standardul SR EN 60947-3.

Documente

logo-pdf ISW-NA separator sarcina 3P-N 63A 415Vca

Link

Specificatii

Electrical
Rated current	63 A
Rated voltage	415 V
Rated switching capacity	5 kA
Voltage type	AC
Short-circuit breaking capacity (Icw)	0.8 kA
Number of poles	4
Min. rated voltage	400 V
Max. lamp power	-
Measurements
Built-in depth	74.5 mm
Width in number of modular spacings	4
Model/type
With signal lamp	No
Switching function	Off switch
Lamp type	-
Other
Imprint/indication	None
Lamp socket	-
Colour
Colour calotte	White
Connection
Number of contacts as normally open contact	4
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	0
Approval/certification
Forced segregation according to DIN VDE 0113	Yes
Protection
Degree of protection (IP)	IP20
Package 1
volume	588 cm3
weight	335 g
length	9,8 cm
width	8 cm
qmax	1
qmin	1
um	C62
gtin	3606480098956
Package 2
volume	36000 cm3
weight	9,453 kg
length	40 cm
width	30 cm
qmax	27
qmin	27
um	CT
gtin	43606480098954
