Descriere

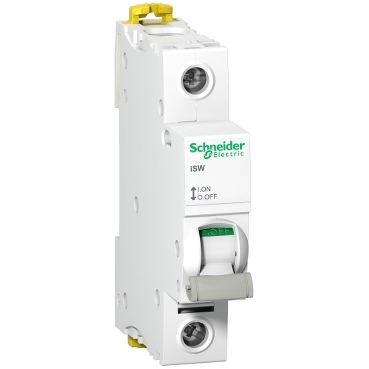

Separator iSW, 1P, 125 A, 240 V
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated current | 125 A |
| Rated voltage | 240 V |
| Rated switching capacity | 5 kA |
| Voltage type | AC |
| Short-circuit breaking capacity (Icw) | 1.5 kA |
| Number of poles | 1 |
| Min. rated voltage | - |
| Max. lamp power | - |
| Measurements | |
| Built-in depth | 75.5 mm |
| Width in number of modular spacings | 1 |
| Model/type | |
| With signal lamp | No |
| Switching function | Off switch |
| Lamp type | - |
| Other | |
| Imprint/indication | Other |
| Lamp socket | - |
| Colour | |
| Colour calotte | Grey |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | - |
| Connection | |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 123,516 cm3 |
| weight | 85 g |
| length | 9,4 cm |
| width | 1,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480531163 |
| Package 2 | |
| volume | 1767,92 cm3 |
| weight | 1,065 kg |
| length | 22 cm |
| width | 9,8 cm |
| qmax | 12 |
| qmin | 12 |
| um | BX |
| gtin | 13606480531160 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 12,154 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 132 |
| qmin | 132 |
| um | CT |
| gtin | 43606480531161 |
